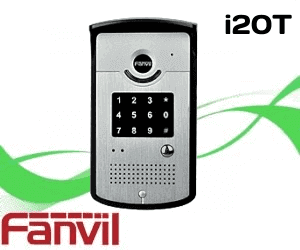

Fanvil i20T SIP Door Phone Kenya


Fanvil i20T SIP Door Phone  Kenya

The Fanvil i20T SIP Door Phone in Nairobi is a strong and easy to use SIP Door Entry solution. The Fanvil i20T features SIP 2.0 and IMS platform of operators,  Embedded BroadDCom chip and duplex hands-free, providing voice quality for carrier-class.


Fanvil i20T SIP Door Phone Nairobi

The Fanvil i20T SIP Door Phone in Nairobi has up to 2 SIP accounts and is PoE enabled. The Fanvil i20T Kenya offers a numeric keyboard and also a full-duplex speakerphone. Other advanced features include a digital network access System , Stable and consistent performance, Hands-free adopting digital full-duplex mode,  generous appearance, and loud and clear voice. The durable door phone offers maximum comfort during use courtesy of its soft keys, simple installation, low power consumption.

The Fanvil I20T IP Door Phone allows for triple function access control with call, code and RFID card and offers a caring coverage rating of IP54 against dust and water. The i20T by Fanvil in Mombasa matches perfectly with multiple platforms such as; 3CX IP PBX, Asterisk, and Elastix. The Fanvil i20T Kenya offers a high-level of enterprise features to allow the user to adapt to their specific situation.

Fanvil i20T SIP Door Phone Features:

  • Speed-dial Button Calling
  • Easy Web Configuration Tool
  • Auto-Answering (per line)
  • Local 3-way Conference
  • Integrated indoor switchgear
  • Supporting SIP 2.0 and IMS platform of operators, and Interconnecting with the mainstream manufacturers IPPBX
  • Embedding BROADCOM chip, Stable and reliable
  • Duplex hands-free, providing voice quality for carrier-class
  • Supporting password to open the door 、the RFID card to open the door the remote to control the door
  • Power Supply 12V+-15%/1A DC or PoE
  • PoE PoE 802.3af (Class 0 – 12.95W) 48V/380mA
  • LAN 10/100BASE-TX s Auto-MDIX, RJ-45)
  • Cables HSYV or better
  • Passive Switch Normally Open and Normally Closed highest at 30V/1A AC/DC
  • Active Switched Output 12V/500mA DC
  • RS232 Supported

HD Voice Quality :

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i20T SIP Door Phone Kenya delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high – quality hands-free communication.

Water & Dust – Resistant :

The Fanvil i20T SIP audio door Phone Kenya is made of the high strength aluminum alloy with Cast aluminum bottom and has a fixed hexagon screw to keep the surface shell from being removed. This structure can successfully prevent the Fanvil i20T IP Door Phone  from moisture, dust and minimizes any man‐made damage. Its power resistant level is up to Ik10 standard, while  its water and dust‐proof level is up to IP54. It is therefore a highly durable device that can withstand harsh weather conditions such as rain, hence saving you from frequent repair costs due to mechanical damages. It can be used in many different outdoor settings.

Multi – Platform Compatibility :

The Fanvil i20T SIP Door Phone is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i20T SIP Door Phone without wasting much time.

2 SIP Lines :

The Fanvil i20T SIP Door Phone supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE) :

The Fanvil i20T SIP Door Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i20T SIP Door Phone can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i20T Door Phone is based on SIP v2 (RFC 3261 and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving :

The Fanvil i20T SIP Door Phone is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions.

Fanvil i20T SIP Door Phone Specifications


  •  2 SIP Accounts
  •  PoE Enabled
  •  Full-duplex speakerphone (HF)
  •  Numeric keypad (Dial pad or Password input)
  •  RFID card standard EM4100
  •  2-Line IP/RTP/RTSP Protocols
  •  Intelligent DSS Keys (Speed Dial)
  •  Embedded installation
  •  Integrated RFID Card reader
  •  Integrated indoor switchgear
  •  Integrated one Relay
  •  External Power Supply
  •  Access control-by call, code, RFID card
  •  Industrial Standard Certifications: IP54, CE/FCC

Call Features

  •  Intercom
  •  Speed Dial
  •  Auto-Answering (per line)
  •  Voice Message (on server)
  •  Local 3-way Conference
  •  Hot Line

Phone Features

  •  Call log (900 entries, in/out/missed)
  •  Open Door Log
  •  Access Table (300 entries)
  •  Support RFID Card issues (300 entries)
  •  Programmable DSS/Soft keys
  •  Network Time Synchronization
  •  Action URL / Active URI


  •  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  •  Wideband CODEC: G.722
  •  Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  •  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise   Estimation(BNE)
  •  Packet Loss Concealment (PLC)
  •  Dynamic Adaptive Jitter Buffer up to 300ms
  •  DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO


  •  Physical: RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to   Network)
  •  IP Configuration: Static / DHCP / PPPoE
  •  Network Access Control: 802.1x
  •  VPN: L2TP (Basic Unencrypted) / OpenVPN
  •  VLAN
  •  QoS

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Backup/Restore
  • Open Door Export
  • Access Table Export/Import
  • Firmware Upgrade
  • Syslog (include Door log)
