Fanvil i31 SIP Video Door Phone Kenya


Fanvil i31 SIP Video Door Phone Kenya

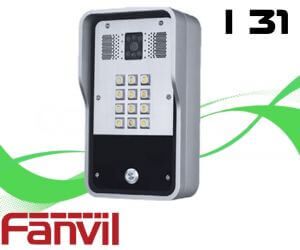

The Fanvil i31 SIP Video Door Phone in Nairobi  combines IP technology with industry standards for access and physical security to provide a system that develops communication for tenants, guests and visitors. The Fanvil i31 Kenya flexibility, ease of use and simple installation makes it perfect for improving security access at schools, offices, and other public facilities.


Fanvil i31 SIP Video Door Phone Nairobi

The Fanvil i31 SIP Video Door Phone in Nairobi combines IP technology with industry standards for access and physical security to offer a system that improves communication for residents, visitors and friends. The Fanvil i31 SIP delivers flexibility, ease of use and simple installation making it ideal for successful security access at schools, offices, and other public facilities. The Fanvil i31 SIP Video Door Phone in Mombasa offers next generation of entry control and vigilance.

Fanvil Kenya Technology Company ranked its Fanvil 131 video door phone as a winner of the Best of the Show Award for Best Consumer offering at ITEXPO which was held between January 25-28th in the year 2016 at Broward County Convention Center in Fort Lauderdale. Winners of the prominent Best of Show Award program are kept for products or services that prove raw creativity and technological innovation.

Fanvil i31 SIP Video Door Phone Features:

HD Video & Two Video Streams :

A user can simply press the “Call” button to make a call with full – duplex video. The Fanvil i31 SIP Video Intercom provides you the infrared night vision using its built-in 720P HD camera which captures crystal clear images. It also supports two video streams in which the main code stream works for high-quality video on monitoring and the sub-code stream for smooth SIP video call.

HD Voice Quality :

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i31 SIP Video Intercom Kenya delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high – quality hands-free communication.

Different ways to unlock the door :
The Fanvil i31 SIP Video Door Phone allows its user to simply to open the door with RFID/IC cards, remote DTMF and indoor switch.

24H Video Surveillance :

Connected with VMS (video management system) via ONVIF, the Fanvil  i31 SIP Video Intercom can be used for 24H video monitoring. This enables the user to keep an eye on their office or premise even when they are miles away.

Multi-Protection Design :

With a waterproof and dustproof grade IP65 design, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the Fanvil i31 SIP Video Intercom is built to meet special demands and requirements of various industries. It can therefore withstand harsh weather conditions whenever it is used in outdoor settings.

Alarm Linkage :

The Fanvil i31 Video Intercom can trigger the record of camera video or the alarm indicator using an integrated short output port.

Access Control :

Fanvil i31 Video Intercom enables the user to open the door remotely from the comfort of their seat regardless of their distance from the unit,  by connecting to the electric lock with the short-circuit input port.

Record Output :

The Fanvil i31 Video Intercom can connect to the audio input port of the camera or digital record device
using a record output port to provide 24h Monitoring services.

External Active Speaker :

Fanvil i31 SIP Video Intercom can connect to speaker by the audio output port to play voice messages or music as desired by the user.

Multi – Platform Compatibility :

The Fanvil i31 SIP Video Intercom  is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Online Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i31 SIP Video Intercom without wasting much time.

2 SIP Lines :

The Fanvil i31 SIP Video Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE) :

The Fanvil i31 SIP Video Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i31 SIP Video Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i31S SIP Video Intercom is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving :

The Fanvil i31 SIP Video Intercom is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions.

Why the Fanvil i31 SIP Door Phone?

  • SIP : The most popular and compatible standard protocol – SIP – enables delivery of worry free communication and connectivity.
  • HD Video : The 1280x720p (720p – progressive scan) camera produces vibrant high quality HD video and captures motion effortlessly.
  • Noise Reduction : The embedded processing module reduces environmental noise and improves voice recognition up to 5 meters (approx. 16 feet).
    Multi-function The system is capable of performing multiple functions, i.e. video intercom and door phone and single device paging, and can be configurable with additional features.
  • HD Voice : High definition voice using wideband G.722 coding produces clearer sound quality and extends the frequency range.
  • Anti-tamper Alarm sounds if/when cover is removed from the housing and reports the action to the control center.
  • Wide Range temperature adaptability :  The system design adapts to operating under various environmental conditions and temperatures (supports temperatures ranging from – 40 to +70 Celsius.)

Fanvil i31 SIP Door Phone – Technical Specifications :


  • SIP 2.0(RFC3261)


  • Number of buttons 1
  • Number of keypad Optional


  • Microphone 2
  • Loudspeaker 3W
  • Noise Reduction(NR) yes

Audio steam

  • Codec G.711,G.729,G.722,etc


  • Resolution
  • View angle 120°(H),109°(V)
  • IR Night Vision yes

Video stream

  • Codec H.263,H.263+,H.264
  • Resolution CIF,QCIF,VGA,4CIF,720P(HD)

RFID Card reader

  • Supported cards EM-4100,MIFARE one, NFC


  • Power supply 12V+ 15%/1A DC or POE
  • POE 802.3af (Class 0 – 12.95W) 48V/380mA
  • LAN 10/100BASE-TX s Auto-MDIX,RJ-45
  • Relay outputs NC/NO Contacts, MAX 30V/1A AC/DC
  • Active relay output 12V/700mA DC
  • Input two input detect ports
  • Output (2 relays) two output control ports


  • Housing material Aluminum alloy
  • Operating temperature range -40? to 70?
  • Storage temperature range -40? to 70?
  • Relative humidity 10% – 95%
  • Installation Surface mounted or Flush mounting
  • Dimensions 159X120X36 mm
  • Protection level IP65 and IK10
