Description

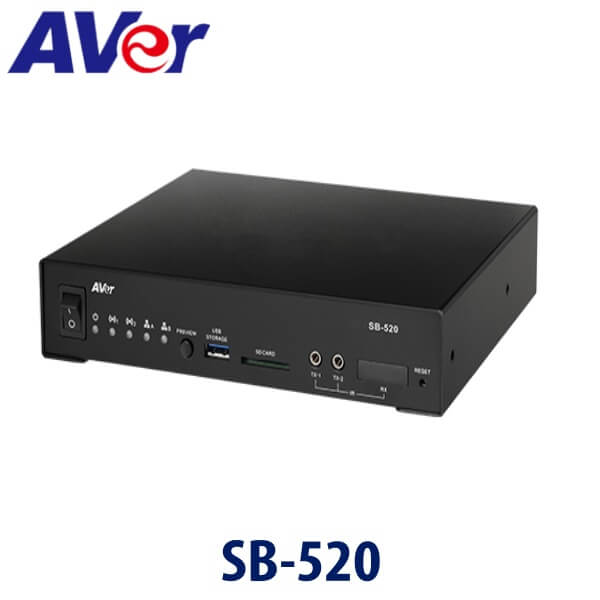

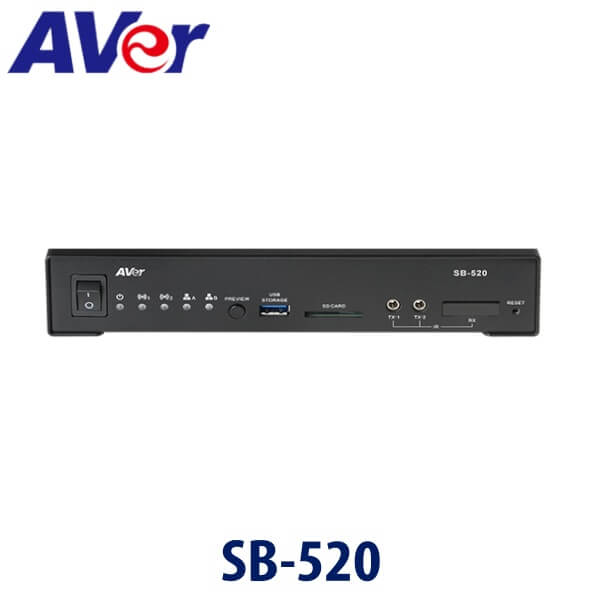

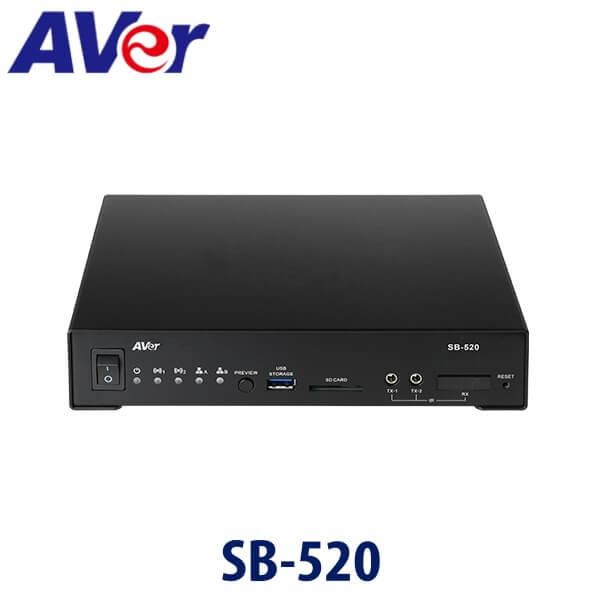

Aver SB-520 Kenya
Aver SB-520 Streaming Box Kenya features with powerful multi-function and compact design. Embedded with H.264 video codecs, the SB-520 allows one or two HDMI sources or 3G-SDI video with a resolution Full HD 1080p encode two transmissions simultaneously. Also with the same or different bit rates, thanks to the H.264 video codec that incorporates the Aver SB-520. This makes it possible to carry out two independent video transmissions with the same or different bit rates for broadcasting or recording. Also this SB-520 Streaming Box is equipped with multiple input/output interfaces that highly work with Facebook Live, Wowza, CDNvideo, YouTube, Twitch, Ustream, and many more platforms. Combing with simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry’s need of high efficiency. Aver SB-520 Kenya combines a simple user interface for easy setup, as it not only enables more diversified production, but also meets the high-efficiency needs of the streaming industry and other users
Features
- Compatible interfaces
- The Aver SB-520 Kenya Streaming Box is equipped with several input / output interfaces that are perfectly compatible with many platforms including Facebook Live, Wowza, CDNvideo, YouTube, Twitch, Ustream and many others. With simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry’s need of high efficiency.
- H.264 video codec
- Aver SB-520 Kenya Streaming Box is embedded with H.264 video codecs allow two independent HDMI and 3G-SDI video sources up to Full HD 1080p resolution, to encodes video transmission with the same or different bit rates for broadcasting streaming or recording.
- Easy to Set Up
- Aver SB-520 Kenya combines a simple user interface for easy setup. Combing with simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry’s need of high efficiency.
- Portable and powerful
- Aver SB-520 Kenya Streaming Box features a powerful multi-function and compact portable design. Carry your SB-520 with ease anywhere your job takes you.
Technical Specifications
-
Video
-
- Interfaces (Input)
-
- HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded)
-
- Output Resolution
-
- Full HD 1080p 60fps (Max.)
-
- Preview Output
-
- HDMI 1.4b
-
Audio
-
- Interfaces
-
- 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1
-
Channels
-
- Output
-
- 2
-
Streaming & Recording
-
- Video Compression Formats
-
- H.264
-
- Audio Compression Formats
-
- AAC
-
- Bit-Rate Setting
-
- Up to 20Mb/s
-
- Recording File Formats
-
- MP4, MOV, TS
-
- Protocols
-
- TCP, UDP, RTMP, RTP, RTSP, RTMPS, HLS
-
- Layouts
-
- PiP, PbP, Single, Customized layouts
-
- Modes
-
- 2 to 2 Mode: 2 streams with independent audio/video input, encode setting and streaming protocol.
- 1 to 2 Mode: Stream the same audio/video content to different target network with independent encode setting and streaming protocols.
- 1, 1, 1 Mode: Simultaneous streaming and recording from the same video/audio source. Recording to network mapped drive from NAS and Windows shared folders.
-
Web UI
-
- Browsers
-
- Chrome, IE, Firefox
-
General
-
- Power Requirement
-
- Locking Power Supply 12V/5A
-
- LEDs
-
- Power x 1, RJ45 x 2, Stream x 2
-
- Buttons
-
- Preview, Reset
-
- Connectivity
-
- RJ45 x 2, RS-485 x1
-
- PoE
-
- Yes
-
- Storage
-
- NAS, USB 3.0 & SD Card Slot for Local Storage
-
- IR
-
- IR Receiver (for remote control), IR Blaster
-
- API for Integration
-
- Yes
-
- Dimensions (W x H x D)
-
- 179.2 x 39.8 x 210.5 mm
-
- Net Weight
-
- 962 g (2.12 lbs)
-
- Operating Conditions
-
- Temperature: 0°C to +50°C
- Humidity: 0% to 80%
-
- Storage Conditions
-
- Temperature: -40°C to +70°C
- Humidity: 0% to 90%
-
- Package Contents
-
- SB-520 Unit, Power Adapter, Power Cord, Remote Control, Base Rack Mount, Long Rack Mount, Short Rack Mounts (x 2), Screws (x 8), Quick Guide
