Aver PTZ211 Kenya



AVer PTZ211 Kenya

The AVer PTZ211 Kenya offers advanced PTZ camera capabilities, empowering you with total command over your streaming content.

Description

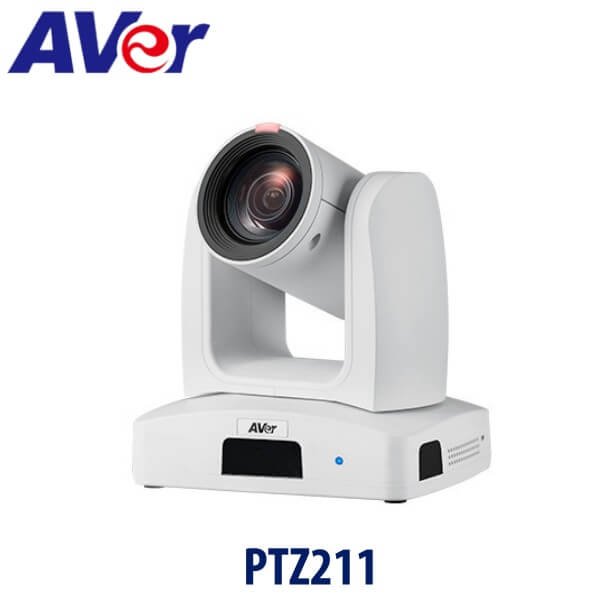

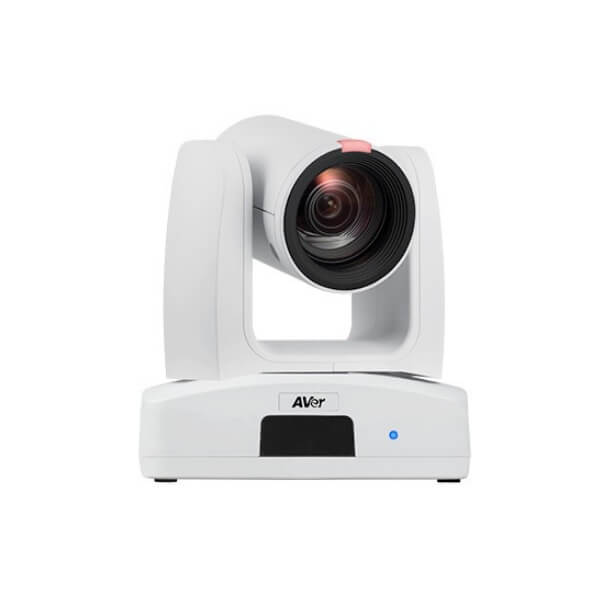

Aver PTZ211 Professional PTZ Camera Kenya

The AVer PTZ211 Kenya offers advanced PTZ camera capabilities, empowering you with total command over your streaming content. Experience professional-grade streaming quality with full HD 1080p output at 60 fps, coupled with a 12X optical zoom and the innovative SmartShoot functionality. Elevate your livestream presentations and captivate your viewers with the AVer PTZ211 Kenya.

Specifications

Camera

  • Image Sensor
    • 1/2.8” 1080p Exmor CMOS
  • Effective Picture Elements
    • 2 Megapixels
  • Output Resolutions
    • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 0.46 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50 dB
  • Gain
    • Auto, Manual
  • TV Lines
    • 1000 (Center)
  • Shutter Speed
    • 1/1 to 1/32,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual, ATW, One Push
  • Optical Zoom
    • 12X
  • Digital Zoom
    • 1X
  • Total Zoom
    • 12X
  • Viewing Angles
    • DFOV: 80.6° (Wide) to 7.7° (Tele)
    • HFOV: 72.8° (Wide) to 6.7° (Tele)
    • VFOV: 44.1° (Wide) to 3.8° (Tele)
  • Focal Length
    • f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance
    • 0.3 m (Wide)
    • 1.5 m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control – Interfaces
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
  • Camera Control – Protocols
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • ONVIF
  • Image Processing
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
  • Power Frequencies
    • 50 Hz, 60 Hz

AI Function

  • Mode
    • SmartShoot

Audio

  • Channels
    • 2ch Stereo
  • Codecs
    • AAC-LC

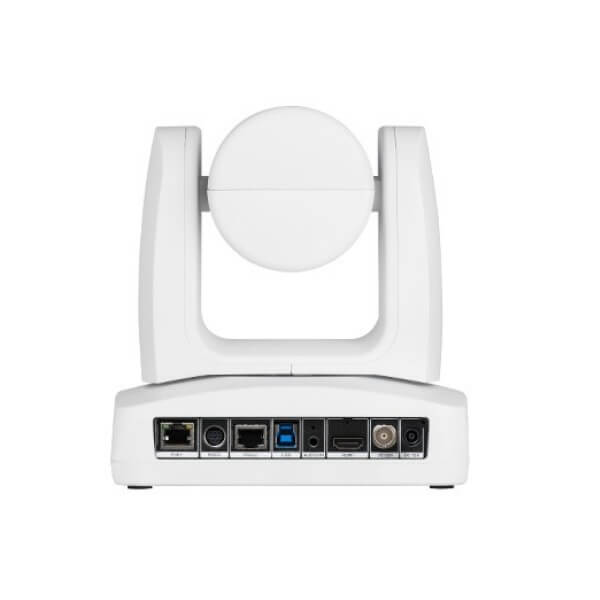

Interface

  • Video Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in

General

  • Power Requirement
    • AC 100 – 240V to DC 12V/2A
  • Power Consumption
    • 19W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 180.0 x 192.0 x 145.0 mm
  • Net Weight
    • 2.0 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

  • Resolution
    • 1080p 60fps
  • Network Video Compress Formats
    • H.264, H.265, MJPEG
  • Maximum Frame Rate
    • 1080p 60fps
  • Bit-Rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate Setting
    • 512 Kbps to 120 Mbps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 4
    • 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI®HX
    • License Upgrade to NDI HX2 available in 2024Q2

USB

  • Connector
    • USB 3.1
  • Video Formats
    • MJPEG, YUY2
  • Maximum Video Resolution
    • 1080p
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0

Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment
    • Exposure, White Balance, Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool
    • Support Windows® 7 or later
  • PTZ Management
    • Support Windows® 7 or later
  • PTZ Control Panel
    • Supports iOS & iPadOS® 11 or later
  • PTZ Link
    • Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras
    • Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare
    • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

  • Camera
    • 5 Years
  • Accessories
    • 1 Year
  • Package Contents
    • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
