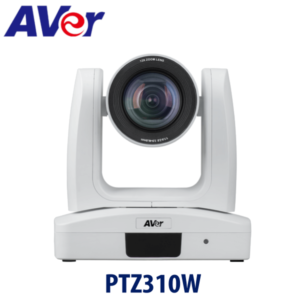

Aver PTZ310W Kenya


Aver PTZ310W Kenya

Aver PTZ310W Kenya is a Professional Live Streaming PTZ Camera from AVer allowing capture up to 1080p images and videos via its 1/2.8″ CMOS sensor. The PTZ310 features a 12x optical zoom, a 12x digital zoom, and it supports flip and mirror image options.


Aver PTZ310W PTZ Professional Camera Kenya

Aver PTZ310W Kenya Professional Live Streaming PTZ Camera from AVer allows you to capture 1080p images and videos via its 1/2.8″ CMOS sensor. The PTZ310 features a 12x optical zoom, a 12x digital zoom, and it supports flip and mirror image options. PTZ310W is equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, this video conferencing system makes you feel the action in a scene. Enjoy full HD 1080p with 60 frames per second from multiple angles. Preset locations via IR and 255 presets via RS-232, and you can control the ±170° pan and -30 to +90° tilt range and speed.

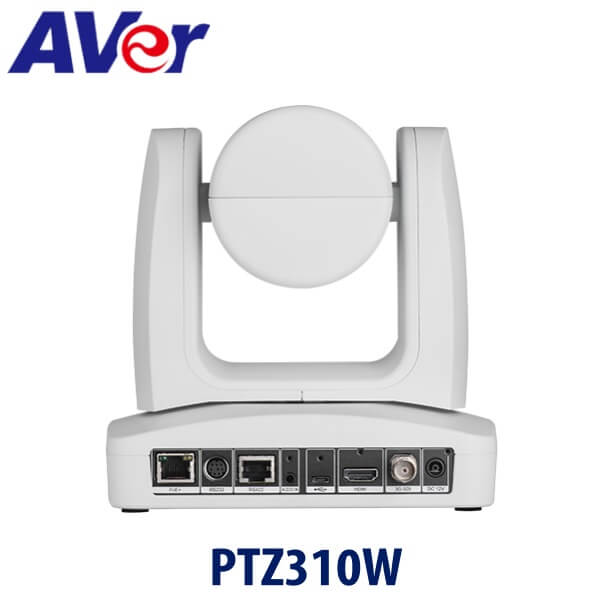

The PTZ310W camera offers 3G-SDI and HDMI outputs, micro-USB video output, LAN streaming via RTP/RTSP, embedded and stereo audio input, and RS-422/RS-232/VISCA-over-IP control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording. AVer’s new SmartFrame technology delivers one-touch face targeting to create stunning video content fast. This allows you to instantly adjust your FOV to fit everyone on the screen efficiently and accurately so you can capture presentations, lectures and more with just one touch. Track preset content zones to highlight your content or areas of interest in the classroom or on stage.

PTZ310W Features

12X Optical Zoom
Aver PTZ310W offers a resounding image quality and a 12X optical zoom enabling you to capture crystal-clear footage in any classroom, hall, or activity center.

Full HD Resolution
The Aver PTZ310W Kenya provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.

Up to 255 Preset Locations

Capture every angle and change the recording view at a moment’s notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.

Stable Motion Control

Fully optimize your recording with customizable speed settings from 0.1°to 200° per second that maximize the agility and precision of pan/tilt rotation motion control.

Seamless Tracking Between Your Preset Zones

Aver PTZ310W Kenya packs AVer SmartShoot that optimizes camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Fit Your FOV in Seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

PTZ310W Specifications


  • Image sensor: 1/2.8″ 1080p 60fps Exmor CMOS
  • Effective Picture Elements: Approx. 2.1 megapixels
  • Output Resolution:
    • Auto
    • 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
  • Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: > 50dB
  • Gain: Auto / Manual
  • TV Line: 800 (Center/Wide), 700 (Corner/Wide)
  • Shutter Speed: 1/1s – 1/32,000s
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC
  • White Balance: Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000)
  • Optical Zoom:12X
  • Digital Zoom: 12X
  • Horizontal Viewing Angle: 72.5° (Wide) – 6.3° (Tele)
  • Focal length: f = 3.9 mm (Wide) – 46.8 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) – 2.8 (Tele)
  • Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
  • Pan/Tilt Angle: Pan: +- 170° ; Tilt: +90° / -30°
  • Pan/Tilt Speed (Manual): Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
  • Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
  • Preset Position: 10 (IR), 255 (RS-232)
  • Camera Control – Interface: RS-232 (DIN9) / RS-422 (RJ45)
  • Camera Control – Protocol: VISCA (RS-232/RS422/IP), CGI (IP)
  • Image Processing: Noise Reduction (2/3D), Flip, Mirror
  • Power Frequency: Auto / 50Hz / 60Hz


  • Channel: 2ch (Stereo)
  • Codec: AAC-LC (48/44.1/32/24K), G.711/PCM
  • Sample Rate: 48/44.1/32/24/16/8Khz


  • Video Output: 3G-SDI, HDMI, IP, USB
  • Audio Output: 3G-SDI, HDMI, IP, USB
  • Audio Input: MIC / Line in


  • Power Requirement: AC100V-AC240V to DC12V/5A
  • PoE: POE+ (IEEE 802.3at), Class 4
  • Operating Condition: Temperature: 0°C – +40°C; Humidity: 20% – 80%
  • Storage Condition: Temperature: -20°C – +60°C; Humidity: 20% – 95%
  • Dimensions: L=180 mm, W= 145 mm, H= 183.5 mm
  • Weight: 1.74 kg
  • Application: Indoor
  • Security: Kensington slot
  • Remote Control: Infrared
  • Accessories: Remote control, 12V/5A power adapter

IP Streaming

  • Resolution: 1920×1080, 1280×720, 960×540, 640×480
  • Network Video Compress Format: H.264 (High Profile), MJPEG
  • Maximum Frame Rate: H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080)
  • Bit-rate Control Mode: VBR/CBR (selectable)
  • Range of Bit-rate setting: 512Kbps – 32Mbps
  • Network Interface: 10/100/1000Base-T
  • Multi-stream Capability: 2
  • Network Protocol: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP


  • Connector: Micro-USB 2.0
  • Video Format: YUV, MJPEG, H.264
  • Maximum Video Resolution: Up to 1080p
  • USB Video Class: UVC1.1
  • USB Audio Class: UAC1.0

Web UI

  • Live Video Preview: Yes
  • Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
  • Camera / Image Adjustment: Exposure / White Balance / Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • Device IP Searching, Configuration Tool: Windows Application
