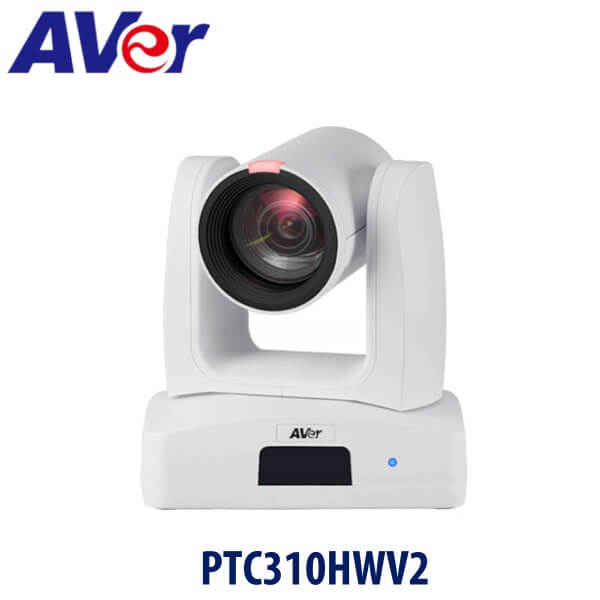

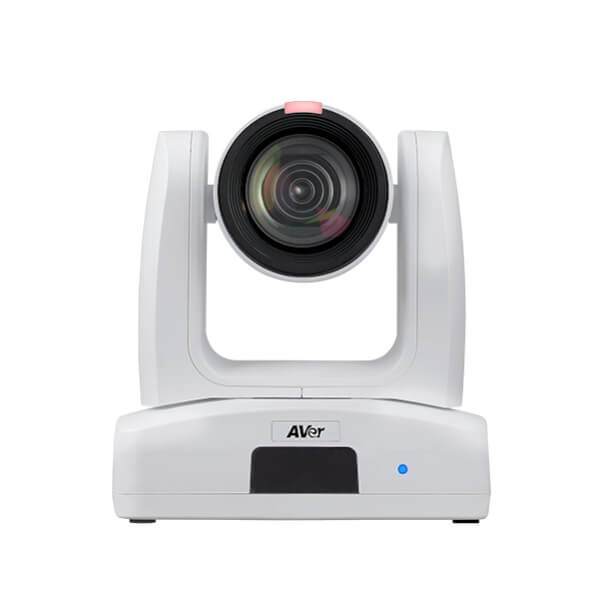

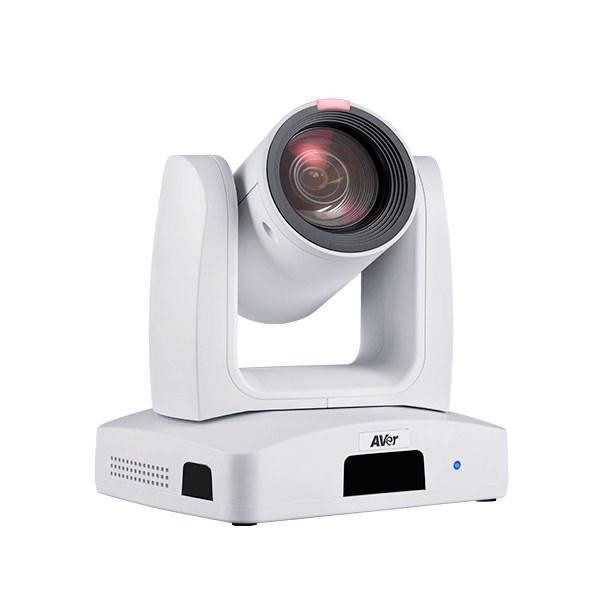

AVer PTC310HWV2 AI Auto Tracking PTZ Camera Kenya

The AVer PTC310HWV2 Kenya is AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. This Al Auto Tracking camera provides an excellent audio and video capturing solution. Drawing inspiration from the AVer Professional PTZ Camera family, the AVer PTC310HWV2 Kenya features in-house AI functions like Presenter Mode, Zone Mode, and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions including Sony sensor that maintains a truly impressive video performance through every frame of your production ensuring quality  broadcasting, streaming, or recording.

Features

12X Optical & 12X Digital Zoom

The zoom power of AVer PTC310HWV2 Kenya reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310HWV2.

Full HD 1080p Output Resolution

Equipped with Full HD 1080p resolution, AVer PTC310HWV2 Kenya provides ultra-precise auto tracking. The PTC310HWV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

Human Detection AI

Welcome AVer’ s most advanced AI tool yet—Human Detection. This highly accurate processing function enables AVer PTC310HWV2 Kenya to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again. Redirect focus in an instant with the PTC310HWV2. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

Click & Track

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

AVer PTC310HWV2 Kenya has Hybrid Mode provides the utmost freedom of movement for performing artists. Preset effective areas for Zone Tracking in advance, and once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode.

Specifications

Camera

• Image Sensor
  • 1/2.8″ 1080p Exmor CMOS
• Effective Picture Elements
  • 2 Megapixels
• Output Resolutions
  • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50dB
• Gain
  • Auto, Manual
• TV Lines
  • 900 (Center/Wide)
• Shutter Speed
  • 1/1 to 1/32,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push
• Optical Zoom
  • 12X
• Digital Zoom
  • 12X
• Total Zoom
  • 144X
• Viewing Angles
  • DFOV : 78° (Wide) to 7° (Tele)
  • HFOV : 70° (Wide) to 6° (Tele)
  • VFOV : 42° (Wide) to 3° (Tele)
• Focal Length
  • f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris)
  • F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance
  • 3 m (Wide), 1.5m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°, Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec, Tilt : 200° / sec
• Preset Positions
  • 10 (IR), 256 (RS-232 / RS-422 / IP)
• Camera Control – Interfaces
  • RS-232 (DIN8), RS-422 (RJ45), IP
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
• Image Processing
  • Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies
  • 50 Hz, 60 Hz

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC, PCM

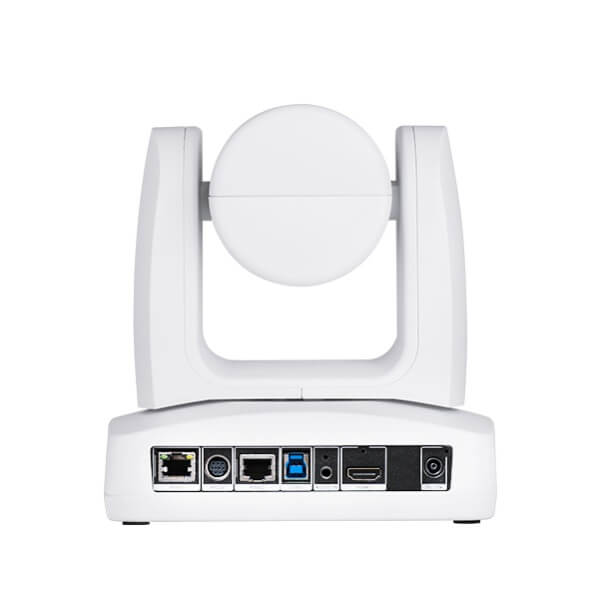

Interface

• Video Outputs
  • HDMI, IP, USB
• Audio Outputs
  • HDMI, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 19W
• PoE
  • PoE+
• Dimensions (W x H x D)
  • 0 x 192.0 x 145.0 mm
• Net Weight
  • 0 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature: 0°C to +40°C Humidity: 20% to 80%
• Storage Conditions
  • Temperature: -20°C to +60°C Humidity: 20% to 95%

IP Streaming

• Resolution
  • 1080p 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Maximum Frame Rate
  • 1080p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate setting
  • 512 Kbps to 32 Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T
• Multi-stream Capability
  • 2 (RTSP / Web Page), 1080p 60fps (max.)
• Network Protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
• NDI|HX Capability
  • License Upgrade

USB

• Connector
  • USB 3.0
• Video Formats
  • MJPEG, YUY2
• Maximum Video Resolution
  • 1080p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search & Configuration Tool
  • Support Windows 7 or later
• PTZ Management
  • Support Windows 7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS11 or later
• PTZ Link
  • Support Windows 7 or later, macOS14 or later
• OBS Plugin for PTZ Cameras
  • Support Windows8 or later, macOS High Sierra v10.13 or later
• CaptureShare
  • Support Windows 7 or later, macOS14 or later

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4″-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
