Aver PTC115 Kenya



Aver PTC115 Kenya

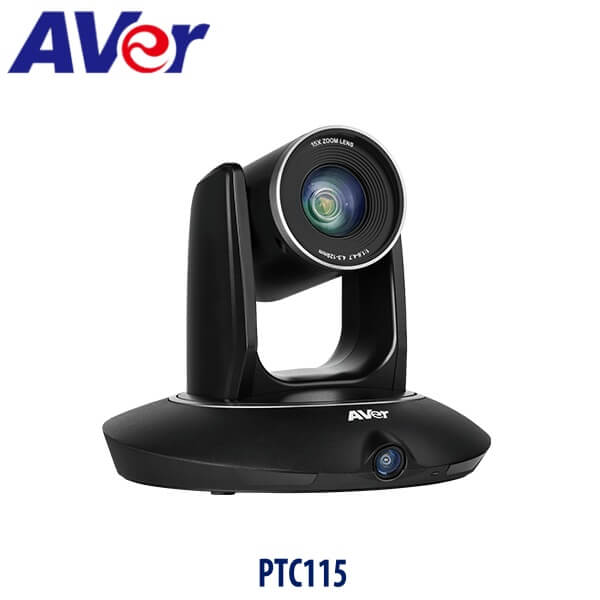

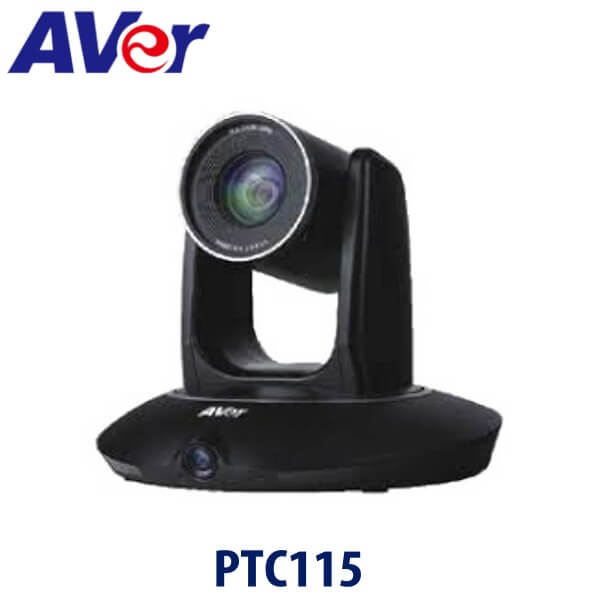

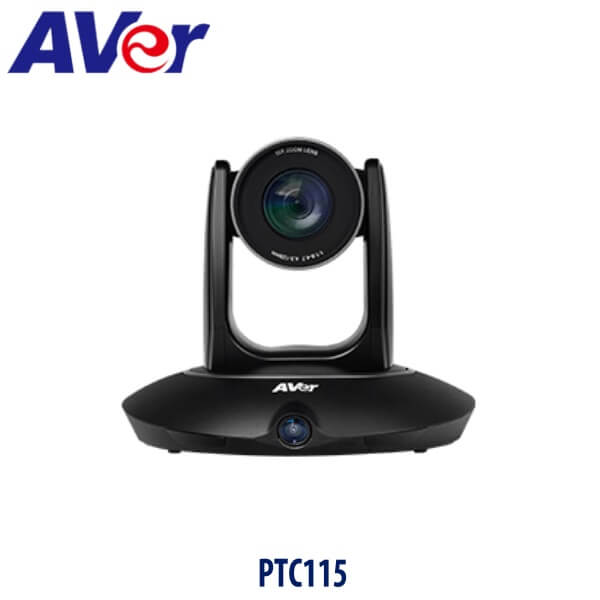

Aver PTC115 camera Kenya packs a 15X optical zoom, 350° pan and 120° tilt radius ideal for classrooms or meeting spaces. The camera precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a powerful remote autofocus function

Description

Aver PTC115 Kenya

The Aver PTC115 Camera Kenya equips 15X optical zoom and 120° panoramic FOV that provides Full HD 1080p video resolution. Perfectly suited to meet the needs of governmental institutions, educational organizations, and enterprises, the Aver PTC115 is the affordable solution for large classrooms or auditoriums, keynote speeches, and employee trainings. Share more with your audience through real-time streaming; with no operator required and easy-to-use user interface, you can reduce costs and achieve limitless distance learning. Aver PTC115 Camera Kenya packs stage tracking capability allowing high-quality, hands-free video streaming and recording. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.  The Aver PTC115 Camera Kenya provides extremely high accuracy tracking that ensure wide area coverage tracking. With fluid and accurate tracking your target has the freedom to leave the stage to interact with crowds or students all while being continuously captured, even if obscured by people or objects. The PTC115 lets you master your recording and capture every brilliant moment.

Key Features

  • Up to 15X Optical Zoom
    • Aver PTC115 camera Kenya is equipped with a 15X optical zoom, a 350° pan and 120° tilt radius that are ideal for classrooms or meeting spaces. Precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a powerful remote autofocus function. Capture the full classroom experience with the most realistic and dynamic image quality.
  • No Extra Devices Needed
    • Aver PTC115 Kenya has algorithms that automatically track a presenter’s face and movements. Presenter walk around freely around the room without need to wear any accessory pack up. With no need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on building zero-distance interactive collaboration.
  • Dual Lens Design
    • The Aver PTZ115 camera integrates Its dual designed lens with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the room. Clearly present every detail of the lesson and never miss a teachable moment.
  • Multi-Presenter Detection
    • Aver PTZ115 camera Kenya boasts of a Multi-Presenter Detection that accurately tracks when there are two or more people in the effective area. This feature allows teachers to conduct group discussions, quiz contests, interactive games, and more. Use one camera to capture every detail of every learning situation.
  • Wide Area Tracking
    •  The Aver PTC115 Kenya provides extremely high accuracy tracking that ensure wide area coverage tracking. With fluid and accurate tracking your target has the freedom to leave the stage to interact with crowds or students all while being continuously captured, even if obscured by people or objects. The Aver PTC115 Camera Kenya lets you master your recording and capture every brilliant moment.
  • Stage Tracking
    • Aver PTC115 Camera Kenya packs stage tracking capability allowing high-quality, hands-free video streaming and recording. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.
  • Segment Tracking
    • Aver PTC115 Camera Kenya boasts of segment tracking capability, which enhances your ability to capture content on multiple displays. Create up to 4 Content Zones to perfectly capture the content on display rather than the presenter.

Aver PTC115 Camera Kenya Specifications

  • PTZ Camera

  • Image Sensor
    • 1/2.8″ 60fps low lux CMOS sensor
  • Effective Picture Elements
    • 2 Megapixels
  • Minimum Illumination
    • IRE50: 0.47 lux (60fps)
    • IRE50: 0.23 lux (30fps)
  • Optical Zoom
    • 15X
  • Digital Zoom
    • 12X
  • Lens Focal Length
    • f = 4.3 mm (wide) – 64.5 mm (tele)
  • Iris
    • F=1.6 (wide) – 4.2 (tele)
  • View of Angle
    • DFOV = 76° (wide) – 5° (tele)
  • Output Resolution
    • Auto
    • 1080p/60
    • 1080p/50
    • 1080i/60
    • 1080i/50
    • 1080p/30
    • 720p/60
  • Preset Number
    • 10 (IR Remote)
    • 256 (RS232)
  • Minimum Working Distance
    • 0.1m at wide-end
    • 1.2m at tele-end (15X)
  • White Balance
    • Auto
    • Manual (2500 – 10000)
  • Gain
    • Auto
    • Manual
  • Electronic Shutter
    • 1/5 s to 1/32,000 s
  • Backlight Compensation (BLC)
    • Off
    • On
  • Exposure
    • Auto
    • Shutter Priority
    • IRIS Priority
    • Manual
  • Noise Reduction
    • Off
    • Low
    • Medium
    • High
  • Frequency
    • Auto
    • 50 Hz
    • 60 Hz
  • S/N Ratio
    • > 50db
  • Horizontal Resolution
    • Center: 800 TV Lines
    • Corner: 600 TV Lines
  • Pan Tilt Parameter

  • Pan Rotation
    • -175° (left) +175° (right)
  • Tilt Rotation
    • -30° (down) +90° (up)
  • Pan Control Speed
    • 2° – 50° /sec
  • Tilt Control Speed
    • 2° – 50° /sec
  • Preset Speed
    • Pan: 160° /sec
    • Tilt: 160° /sec
  • Panoramic Camera (Full View)

  • Image Sensor
    • 1/2.8″ 60fps low lux CMOS sensor
  • Effective Picture Elements
    • 2 Megapixels
  • Output Resolution
    • Auto
    • 1080p/60
    • 1080p/30
    • 720p/60
  • Lens Focal Length
    • 2.12 mm
  • White Balance
    • Auto
  • Exposure
    • Auto
  • FOV
    • DFOV = 120°
    • HFOV = 110°
    • VFOV = 74.5°
  • Interface / Streaming / Protocol

  • Video Output
    • 3G-SDI *2
    • HDMI *1
    • IP (RJ45)
  • Video Output Capability
    • up to 1080p/60fps
  • Remote Control
    • RS232 (via optional DB9 to DIN6 adapter)
    • IP (RJ45)
  • Baud Rate
    • 115200/9600/4800/2400 bps
  • Network Interface
    • 10/100/1000 Base-T
    • Support Wake-on-LAN
  • Network Video Compress Format
    • H.264
  • Network Protocols
    • RTSP
    • RTMP
    • ONVIF
  • IP Video Streaming
    • Dual Video Streaming (PTZ and panoramic view)
  • Control Protocols
    • VISCA
    • Pelco-D
    • Pelco-P
  • Power
    • Power adapter DC 12V
  • System

  • Remote IR
    • IR sensor
  • Audio
    • PCM
    • AAC-LC
    • G.711
  • LED
    • Power (blue = on, red = off)
  • Security
    • Kensington slot
  • Infrared Remote
    • Receiver on front of camera
  • Power Adapter
    • AC 110V – AC 220V to DC 12V/5A
  • Consumption
    • 24 W (Max.)
  • Operating Temperature
    • 0°C – +40°C
  • Operation Humidity
    • 20% ~80%
  • Storage Temperature
    • -20°C – +60°C
  • Storage Humidity
    • 20% – 95%
  • Dimensions
    • L = 201 mm
    • W = 210 mm
    • H= 176 mm
  • Weight
    • 1.75 kg
  • Application
    • Indoor
  • Accessories
    • Remote control
    • 12V/5A power adapter
    • DB9 to DIN6 adapter
    • Quick guide
