Description

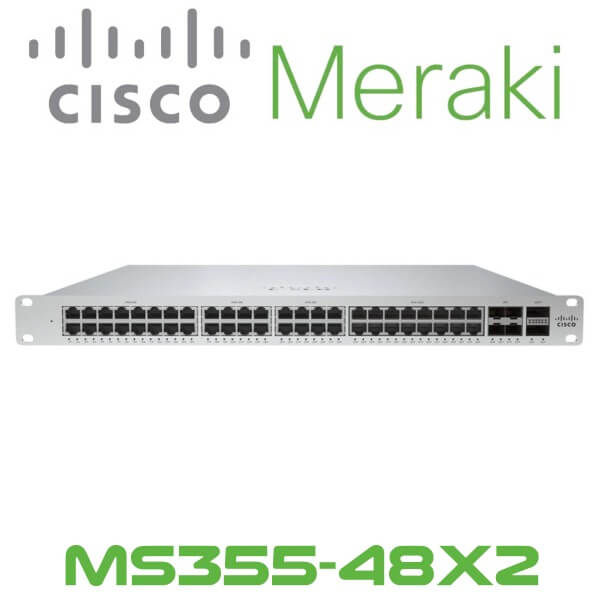

Meraki MS355-48X2 Network Switch Kenya

The Meraki MS355-48X2 Kenya switch features 24 x mGig ports with 24 x 1GbE switch ports and is cloud managed. It provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The MS355-48X2 features a high mGig port density for 802.11ax wireless access points, servers, and workstations. With 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.

  Meraki MS355-48X2 Kenya is managed through an elegant, intuitive cloud-based interface, rather than cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs. Meraki’s centralized management platform gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.

MS355-48X2 Features

Switch ports/stacking ports

• 24 × mGig ports
• 24 × 1G ports
• 2 × 40G or 4 × 10G fibre uplinks
• Stack up to 8 units
• QSFP28 stacking ports
• 400 Gbps of physical stacking

Power/PoE

• All models include 740 W
• Up to 30 W per port
• Up to 60 W per port
• Modular power supply/fans

Hardware platform

• Reliable platform with 24/7 Meraki Support
• 1RU rack mountable
• Video and voice QoS
• Non-blocking switch fabric

Cloud management

• Email alerts for switch management
• Remote troubleshooting tools
• Manage ports from a GUI-based dashboard
• Zero-touch provisioning
• Per-port and per-client usage statistics
• Secure, user-scheduled firmware updates

Switching capabilities

• Layer 3
• Warm spare redundancy (VRRP)
• OSPF Routing
• MAC forwarding entries, up to 32K
• DHCP Server, DHCP Relay
• 1X Authentication
• DHCP Snooping
• STP Enhancements
• IPv4 and IPv6 ACLs

Specifications

General

• Manufacturer : CISCO DS HARDWARE DIRECT
• Brand : Cisco Meraki
• Product Line : Cisco Meraki Cloud Managed
• Model : MS355-48X2
• Packaged Quantity : 1

Performance

• Performance : Forwarding rate : 512 Mpps, Switching capacity: 688 Gbps

Capacity

• Capacity : Tagged VLANs: 4096

Networking

• Type : Switch
• Subcategory : Network hubs and switches
• Subtype : Gigabit Ethernet
• Form Factor : Desktop, Rack-mountable
• Stackable : Stackable
• Max Units in A Stack : 8
• Ports Quantity : 48
• Advanced Switching : Layer 3
• Routing Protocol : IGMP, OSPFv2, Static IP routing, VRRP
• MAC Address Table Size : 32K entries
• Jumbo Frame Support : 9600 bytes
• Manageable : Yes
• Remote Management Protocol : SNMP
• Power Over Ethernet (PoE) : UPOE

Features

• ARP support
• Auto-negotiation
• Bridge protocol data unit (BPDU)
• Broadcast Storm Control
• Crossover detection
• DHCP relay
• DHCP server
• Dynamic ARP Inspection (DAI)
• E-mail alert
• Flow control
• LLDP support
• Loop Guard
• Port mirroring
• Push notification
• Rapid Spanning Tree Protocol (RSTP) support
• Role-Based Access Control (RBAC)
• Root Guard
• SMS alert
• Spanning Tree Protocol (STP) support
• Static routing
• Syslog support
• Uni-Directional Link Detection (UDLD)
• VLAN support

Compliant Standards

IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at

Ports

• Quantity : 24
• Type : 1/2.5/5/10GBase-T
• Ports (2nd) : Qty24- Type1000Base-T
• Ports (3rd) : Qty4- Type10 Gigabit SFP+
• Ports (4th) : Qty2-Type40 Gigabit QSFP+

Interface Provided

• Interfaces : 2 x 100Gbit LAN QSFP28 stacking
• 2 x 40Gbit LAN QSFP+ uplink
• 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
• 24 x 1000Base-T RJ-45
• 4 x 10Gbit LAN SFP+ uplink

Power Device

• Type : Internal power supply
• Hot-Plug : Hot-plug
• Power Provided : 740 watt
• Nominal Voltage : AC 120/230 V
• Frequency Required : 50/60 hertz
• Power Consumption Operational : 1793 watt

Miscellaneous

• Color Category : Silver
• Rack Mounting Kit : Included
• Height (Rack Units) : 1
• Authentication Method : RADIUS
• MTBF330,228 Hours
• Compliant Standards : CSA, C-Tick, IC, RoHS

Dimensions & Weight

• Width : 19.1 inch
• Depth : 20.3 inch
• Height : 1.7 inch
• Weight : 13.14 lbs

Environmental Parameters

• Min Operating Temperature : 32 degree Fahrenheit
• Max Operating Temperature : 113 degree Fahrenheit
• Humidity Range Operating : 5 – 95% (non-condensing)
