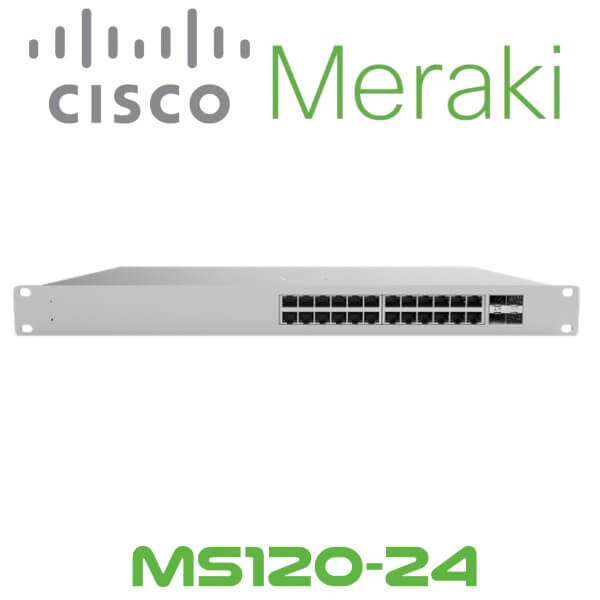

Meraki MS120-24 Kenya

Cisco Meraki MS120-24 Switch Kenya provide Layer 2 access switching ideal for branch and campus deployments. The Meraki MS120-24 Kenya features a variety of power options designed to meet the diverse needs of large enterprise networks.

Add to quote

Description

Meraki MS120-24 Network Switch Kenya

Meraki MS120-24 Switch Kenya provide Layer 2 access switching ideal for branch and campus deployments. The Meraki MS120-24 Kenya features a variety of power options designed to meet the diverse needs of large enterprise networks. Meraki Network Switches Kenya are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Network Switch Kenya are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki MS120-24 Kenya switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

meraki ms120 24 kenya

MS120-24 Features

Branch & Campus Access

PoE and PoE+ models available for device level powering
Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
Voice VLAN support for simplified VoIP deployments
CDP/LLDP with detailed neighbor discovery and visibility
Port Mirroring support for monitoring network traffic at line rate
IGMP Snooping to optimize network performance for multicast applications
Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
Port security and MAC whitelisting
Change of Authorization (CoA) and RADIUS accounting support
DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
Per-port VLAN configuration
Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action without having to physically connect stack members
Configuration templates for rapid, zero-touch provisioning and auditing of all sites
Network Topology for automatic and interactive network mapping
Remote cable testing, packet capture, and client discovery
Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS120-24 Kenya is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. Meraki Network Switch Kenya support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power for VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki MS120-24 Kenya include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, Macs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

Meraki MS120-24 Kenya run the same operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, MS120-24 switch automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features

MS120-24 Specifications

Interfaces
24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS120, available on all ports (maximum of 30W per port for PoE+) 4 × SFP 1 Gigabit Ethernet interfaces for uplink Auto negotiation and crossover detection
Management
Managed via the web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Detailed historical per-port and per-client usage statistics DHCP, client, and hostname fingerprinting SNMP and Syslog support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote diagnostics
Email, SMS and mobile push notification alerts1 Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search Ethernet Switching Capabilities 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate.
Port mirroring
IGMP snooping for multicast filtering MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security
Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control SSO, Corporate-wide password policy enforcement IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing MAC-based RADIUS authentication (MAB) Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking STP Enhancements include BPDU guard, Root guard IPv4 ACLs
Power over Ethernet
802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port Maximum PoE output : 370 W PoE available on all ports simultaneously
Performance
Switching capacity : 56Gbps Forwarding rate : 41.67mpps Jumbo frame support (9578 byte Ethernet frame) Flow control
Power
Power input : 100 – 240 VAC, 47-63 Hz Power consumption : 15 – 882W
Mounting
1U Rack-mountable with included rack mount hardware 2-post front mounting options available Desktop-mountable with included feet
Environment
Operating temperature : 32°F to 104°F (0°C to 40°C), 45°C Humidity : 5 to 95% non-condensing MS120-24, MS120-48 feature fanless operation MTBF at 25°C MS120-24 1,179,789 MS120-24P 1,700,716
	Physical dimensions (H×W×D)
	MS120-24 : 1.72” × 17.32” × 9.84” (4.40 × 44 × 25cm) MS120-24P : 1.72” × 17.32” × 9.84” (4.40 × 44 × 25cm)
Physical Weight
MS120-24: 6.03 lb (2.73 kg) MS120-24P: 8.18 lb (3.71 kg)
