Description

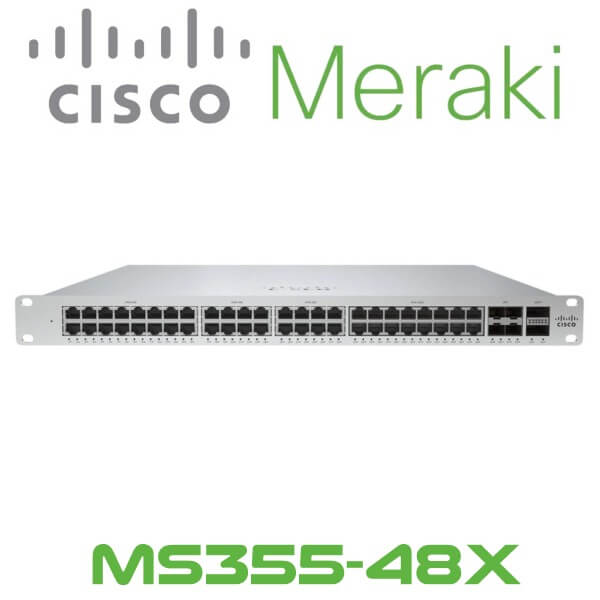

Meraki MS355-48X Network Switches Kenya

The Meraki MS355-48X Kenya is Cloud-Managed Stackable Multi-Gigabit Switch, providing full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The Meraki MS355-48X features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans. Meraki Network switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line. To bring up a Meraki MS355-48X Kenya, simply plug it in without need of CLI for switch configuration or port management. The Meraki’s centralized management platform gives administrators granular visibility into their network. It is equipped with dashboard that helps you keep track of every configuration change in your network.

Features

Cloud Management

Meraki MS355-48X has many cloud management benefits that make it easier to build networks large and small:

• Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
• Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
• Role-based administration
• Firmware upgrades and enhancements from the Meraki cloud
• Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
• Incredible network transparency with application, operating system, client, and hostname visibility
• Zero-touch provisioning for rapid deployment across sites

Powerful Access Switching

• High-bandwidth physical stacking with support for up to 8 stack members for built-in redundancy and performance
• Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multi-chassis (MLAG) support on stacked switches
• Static and dynamic routing support with DHCP relay and server capabilities
• Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
• Voice VLAN support for simplified VoIP deployments
• CDP, LLDP advertisement and snooping, with detailed neighbor visibility and discovery
• Port Mirroring to monitor network traffic
• IGMP Snooping to optimize network performance for multicast applications

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
• ACL support (IPv4 & IPv6) and MAC whitelisting
• Single-Host/Multi-Domain/Multi-Host/Multi Authentication
• Change of Authorization (CoA) and RADIUS accounting support
• DHCP snooping to protect against rogue DHCP servers on the network
• Dynamic ARP Inspection to prevent man-in-the-middle attacks
• Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time
• Per port VLAN configuration
• Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

• Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
• Configuration templates for rapid, zero-touch provisioning and auditing of all sites
• Network Topology for automatic and interactive network mapping
• Remote cable testing, packet capture, and client discovery
• Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS355-48X Kenya is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for UPoE support is also available.

Application Layer Visibility

Meraki switches include integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Network Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management. When connected, Meraki MS355-48X Kenya automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.
