Description

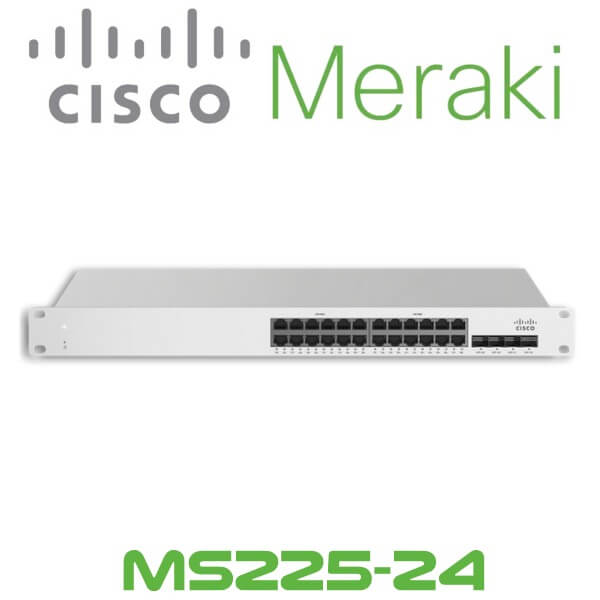

Meraki MS225-24 Network Switch Kenya

The Meraki MS225-24 switches Kenya provides layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU ( RPS-2300) for power redundancy requirements. Meraki MS225-24 Kenya is built from the ground up for easy management without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS225-24 is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. Allowing users to choose near capacity switches across hundreds of sites. Find all configuration changes made by a certain person with instant search.

MS225-24 Features

Industry Leading Cloud Management

Cloud management has a number of benefits that make it easier to build networks large and small:

• True zero-touch device provisioning
• Virtual stacking: manage up to thousands of ports from a single pane of glass.
• Application layer visibility with automatic operating system, client, and hostname fingerprinting.
• Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
• Alerts upon power loss, downtime, or configuration changes.
• Role-based administration and automatic, scheduled firmware upgrades over the web.
• Regular feature updates and enhancements delivered on demand from the Meraki cloud.

Meraki MS225-24 switches include all of the traditional Ethernet features found in modern enterprise access switches, including:

Branch & Campus Access

• Physical stacking with support for up to 8 stack members for built-in redundancy and performance
• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
• Voice VLAN support for simplified VoIP deployments
• CDP, LLDP advertisement and snooping, with detailed neighbor discovery and visibility
• Port Mirroring (SPAN) support for monitoring network traffic at line rate
• IGMP Snooping to optimize network performance for multicast applications
• Link Aggregation Control Protocol (LACP) for high-capacity trucking, with Multi-chassis (MLAG) support on stacked switches

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
• Port security and MAC whitelisting
• Change of Authorization (CoA) and RADIUS accounting support
• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
• Rapid spanning tree, BPDU guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time
• Per port VLAN configuration
• Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

• Virtual Stacking lets administrators manage up to thousands of ports in a single interface without having to physically connect stack members
• Configuration templates for rapid, zero-touch provisioning and auditing of all sites
• Network Topology for automatic and interactive network mapping
• Remote cable testing, packet capture and client discovery
• Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for Cisco UPoE is also available. The Meraki MC products work flawlessly with Meraki switches, and create a unique and powerful experience to installing, supporting and troubleshooting VoIP technology

Application Layer Visibility

Meraki MS225-24 Kenya include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

Meraki switches run the same Meraki operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, MS250 switches automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

MS225-24 Specification
