Description

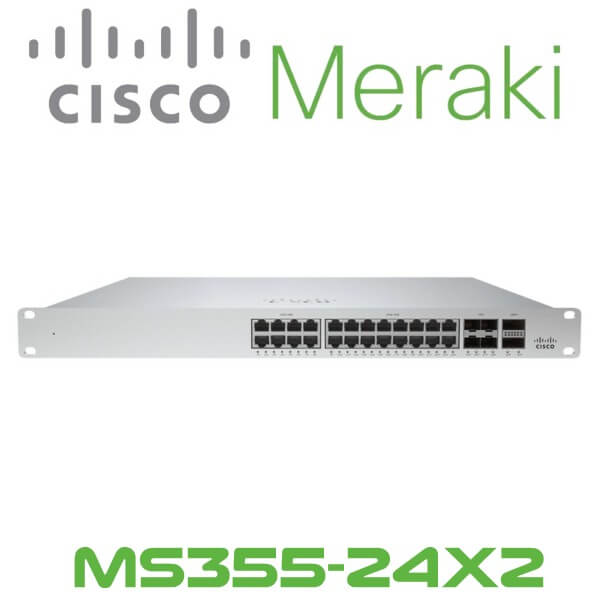

Meraki MS355-24X2 Network Switch Kenya
The Meraki MS355-24X2 Kenya features 24 x mGig ports featuring a high mGig port density for 802.11ax wireless access points, servers, and workstations. The MS355-24X2Â provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans. Meraki’s centralized management platform gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.
MS355-24X2 Features
Centrally managed from the cloud
The Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
Layer 7 application and client visibility
Meraki MS355-24X2 Kenya features integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.
QoS for voice and video
Meraki MS355-24X2 Kenya deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.
Enterprise security
Extending security down to the port level has never been easier. Meraki MS355-24X2 Kenya integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.
MS355-24X2 Specification
| General | |
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 1/2.5/5/10GBase-T + 16 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2 |
| Performance |
|
| Capacity | Tagged VLANs : 4096 |
| MAC Address Table Size | 512K entries |
| Jumbo Frame Support | 9600 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | IGMP, VRRP, OSPFv2, static IP routing |
| Remote Management Protocol | SNMP |
| Authentication Method | RADIUS |
| Features |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces |
|
| Power | |
| Power Device | Internal power supply – hot-plug |
| Power Provided | 370 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 867 Watt |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 321,515 hours |
| Compliant Standards | CSA, C-Tick, IC, RoHS |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 23.4 in |
| Height | 1.7 in |
| Weight | 14.55 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – replacement – lifetime – response time: next day |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
