Description

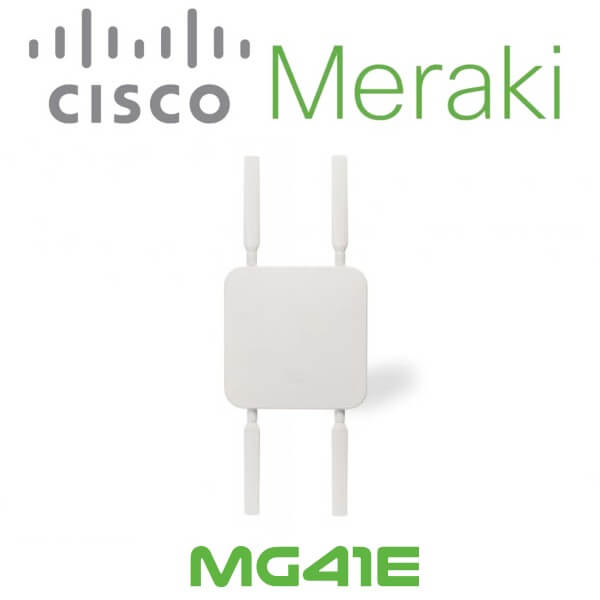

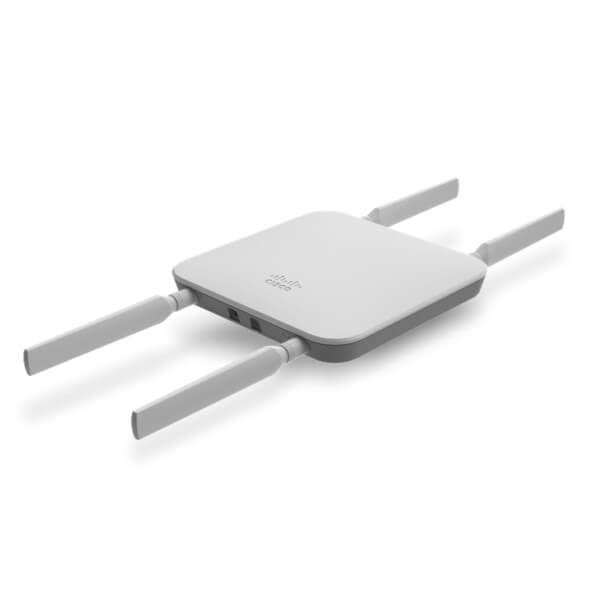

Meraki MG41E Cellular Gateway Kenya
The Meraki MG41E Kenya features Cellular Gateway providing high-speed, always-on reliable network connectivity for business-critical operations and a hybrid workforce through cellular deployments with gigabit primary or backup cellular uplinks. MG41E can instantly provision primary cellular connectivity across thousands of sites at once without waiting on broadband or any change in infrastructure, enabling faster business expansion. Deliver primary gigabit connectivity with Meraki MG41E Kenya or pair with Meraki MX and SD-WAN to allow for the optimal bandwidth management needed for today’s cloud-first organizations. With gigabit-level backup cellular connectivity, businesses can rely on MG41E for a consistent experience 24/7/365 to increase business uptime and network resilience.
Meraki MG41E Kenya allows businesses to confidently deploy primary gigabit cellular at sites where there’s no broadband coverage, the carrier coverage is initially unknown, or there’s a varying level of availability and network reliability from multiple regional carriers. The dual SIM gives the flexibility to switch to a better performing carrier network through auto-SIM failover or switch to the other carrier when either of the SIM reaches the data cap.
MG41E Features
Hardware
- Sleek form factor
- x1 CAT 18 Integrated Cellular up to 1.2Gbps
- x2 nano (4FF) SIM card slots
- x2 GbE ports
- Multi-surface mounting bracket for attachment to walls, ceilings, or poles
- IP67 rated for environments of all types
- Dipole Antenna (included)
- x4 External Antennas
- x2 Patch Anetnnas (optional)
- Supports up to 5 simultaneous carrier aggregation (5CA)
- Supports popular bands like B14 (FirstNet), B48 (CBRS), B66 and B71
- Supports private LTE
Power
- DC or PoE
- x2 PoE ports
Use cases
- Primary cellular connectivity
- Failover cellular connectivity
Cloud-based centralized management
- Managed centrally over the web
- Zero-touch, self-provisioning deployments
- Remote troubleshooting tools
- Secure, user-scheduled firmware updates
- Remote visibility of key cellular information: IMEI, ICCID, APN, RSRP, RSRQ
- Auto-SIM failover
Cloud APIs
- All MG configuration settings executable via APIs
Self-configuring, cellular primary
If a certified carrier SIM card is inserted, the MG41E brings up the cellular connection and automatically connects to the Meraki cloud, downloads its configuration, and joins your network.
Industry-leading cloud management
Meraki’s award-winning cloud-management architecture unifies LAN and management under a web-based dashboard and scales easily from small to large multi-site deployments with tens of thousands of devices. The Meraki dashboard provides intuitive yet powerful role-based administration, firmware updates, configuration changes, email alerts, and easy to-audit change logs.
MG41E Specifications
Performance
- 2 Gbps Downlink (DL)/ 150 Mbps Uplink (UL)
Interfaces
- 2 * PoE IN
- LAN interfaces: 2 x GbE
- 1 x CAT 18 LTE integrated cellular
Monitoring and Reporting
- Throughput, connectivity monitoring
- Org-level change logs for compliance and change management
Environmental Specifications
- Power: 12V/1A, 48-57V DC/0.35A
- Operating temperature: -22°F to 122°F (-30°C to 50°C)
- Humidity: 5 to 95% non-condensing
- IP67 environmental rating
- Desktop or wall mount or ceiling mount (all standard mounting hardware included)
Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting tools
Management
- Managed via the web using the Meraki Cloud Controller
- Single pane of glass management of wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Centralized policy management
- Org-level two-factor authentication and single sign-on
- Role based administration with change logging and alerts
Integrated Cellular
- Support for major bands: 2, 4, 5 ,12, 13, 14, 48, 66, 71 *Refer to the datasheet for the full list
- 2 Gbps Downlink (DL)/ 150 Mbps Uplink (UL)
- Additional regulatory information: PTCRB (US), RCM (ANZ, APAC), GCF (EU)
Supported UICC/SIM
- 2 * external SIM card
