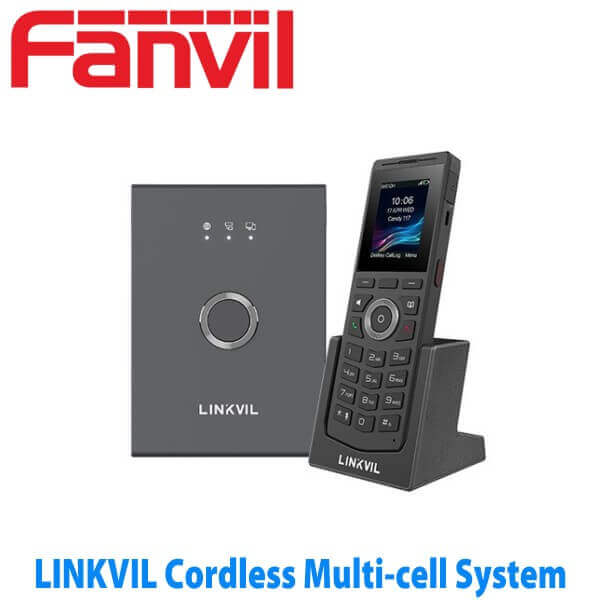

Fanvil LINKVIL Cordless Multi-cell System Kenya

The Fanvil LINKVIL Cordless Multi-cell System Kenya is an advanced and scalable communication solution engineered by Fanvil to meet the demands of large-scale enterprise deployments. Designed for wide-area coverage, this system comprises a W710H Manager unit, supports up to 20 base stations, and connects with as many as 300 W610H cordless handsets. It enables up to 200 concurrent calls and handles 300 SIP accounts across multiple SIP servers, making it an excellent fit for businesses requiring robust mobility and high-quality voice communication in environments such as office buildings, healthcare facilities, retail complexes, and warehouses. The W710H base station operates in both single-cell and multi-cell configurations, offering seamless roaming and handover capabilities with an indoor range of up to 100 meters and up to 700 meters outdoors (under US standard conditions). It is equipped with support for XML/LDAP/remote directories, up to 20,000 call log entries, and flexible provisioning options through FTP, TFTP, HTTP, and TR-069. It also integrates essential network features including IPv6, VLAN tagging, and VPN support.

Accompanying the base station, the W610H cordless handset features a vibrant 2.0-inch 240×320 color screen, Bluetooth 5.0 connectivity, a 3.5mm headset jack, and a powerful 1900mAh battery providing up to 8 hours of talk time and 160 hours of standby. Designed for durability and performance, it supports HD audio, multiple voice codecs like Opus, G.722, and G.729, programmable DSS keys, a PTT (push-to-talk) button, and a multilingual user interface. With a drop resistance rating of up to 1.8 meters, the handset is built for demanding use cases. Both the base station and handset are internationally certified with CE, FCC, UKCA, and RoHS standards, ensuring reliability and global compliance. The Fanvil LINKVIL Cordless Multi-cell System Kenya system is engineered for smooth roaming between base stations and is equipped with powerful security and encryption technologies such as WPA2-PSK and SRTP, making it a professional-grade, future-proof solution for dynamic enterprise communication environments.

Product Highlights:

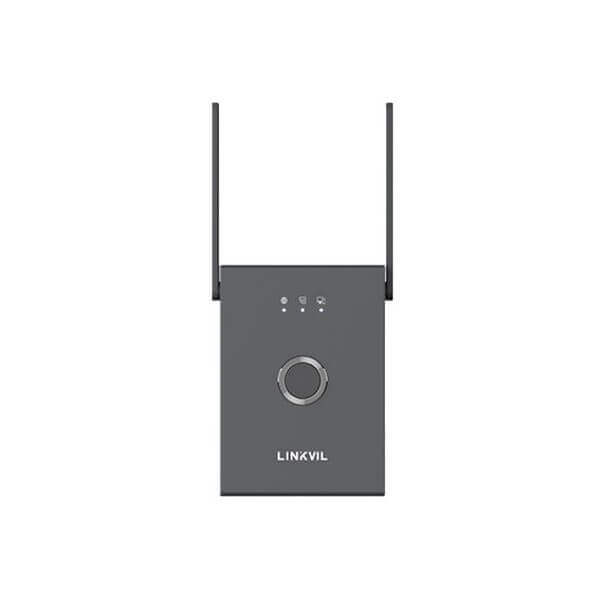

W710H Base Station (Multi‑cell System)

• Supports both single-cell and multi-cell modes via W710H Manager
• Multi-cell supports:
  • Up to 20 base stations
  • Up to 300 terminals (handsets)
  • Up to 200 simultaneous calls
  • Up to 300 SIP accounts/extensions
• Roaming coverage:
  • Indoor: up to 100 m
  • Outdoor: up to 700 m
• Supports XML/LDAP/Remote phonebook (up to 1,000 contacts per terminal), call logs (20,000 entries)
• Wireless encryption: WPA2‑PSK
• Network protocols: IPv4/6, VLAN, 802.1x, VPN, LLDP, CDP, etc.
• Deployment tools: auto-provision via FTP/TFTP/HTTP/SIP‑PnP/TR‑069; web management interface
• Hardware:
  • 10/100 Mbps Ethernet, PoE support
  • Operating –10 °C to +45 °C, storage –20 °C to +60 °C
  • Certifications: CE, FCC, RoHS, etc.

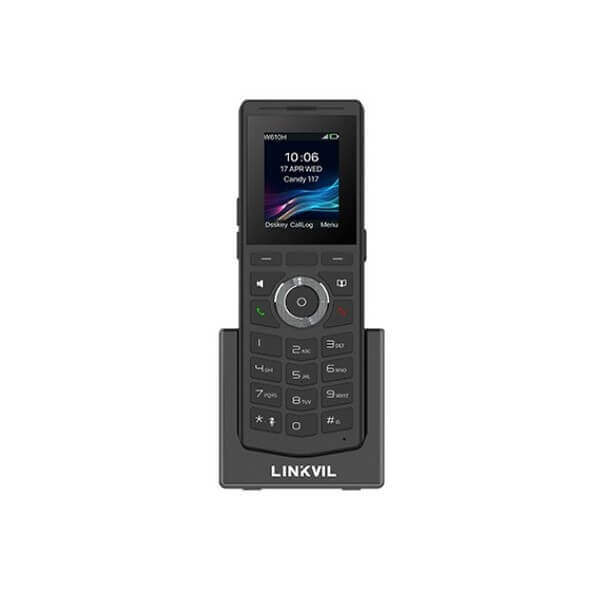

W610H Handset

• 2.0″ 240 × 320 color screen
• Bluetooth 5.0 for headsets + 3.5 mm jack
• 1,900 mAh rechargeable battery
  • Up to 8 hours talk, 160 hours standby
• HD voice, noise reduction, incoming vibration
• Supports:
  • 4 SIP lines, 1 internal extension
  • 16 programmable DSS keys, 1 PTT button
• Codec support: G.711, G.729 variants, iLBC, G.722, Opus
• Networking/protocols: 802.11ah (Wi‑Fi), WPA2‑PSK, SRTP, STUN, DHCP, HTTP/S, etc.
• Physical:
  • Drop tested to 1.8 m
  • Size: 156 × 53 × 17.7 mm; weight: 145 g
• Misc:
  • Supports 1,000 contacts, 600 call logs, SMS, voicemail, speed dial, DND, intercom, 3‑way conference
  • Multi-language UI
  • Certifications: CE/FCC/UKCA, RoHS, etc.
