Fanvil i18S Door Phone Kenya

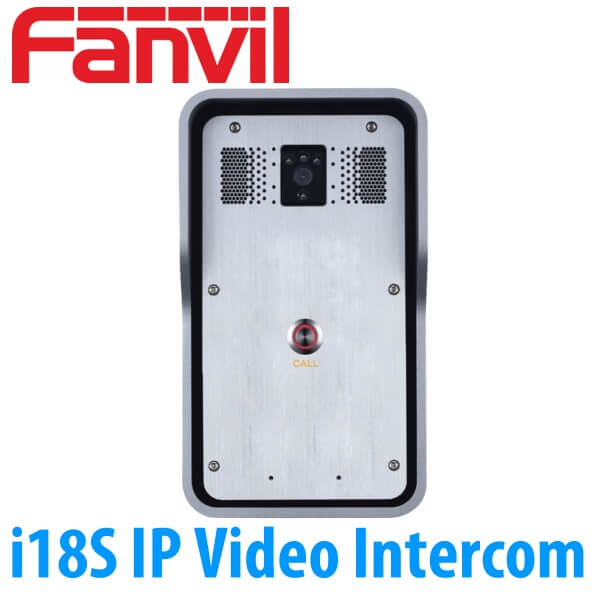

Fanvil i18S SIP Video Intercom Kenya

The Fanvil i18s SIP Video Intercom has been designed with an IP65/IK10 – rated protection against dust and moisture, meaning it can be used in many different environments and application scenarios such as Offices, Prisons, Train Stations, Schools, and more. With 720p HD Video as well as high-quality audio, this Intercom is ideal for any business wanting a security system that is more advanced, offering secure audio, video, intercom, and broadcasting function as well as the best communication for users.

Description

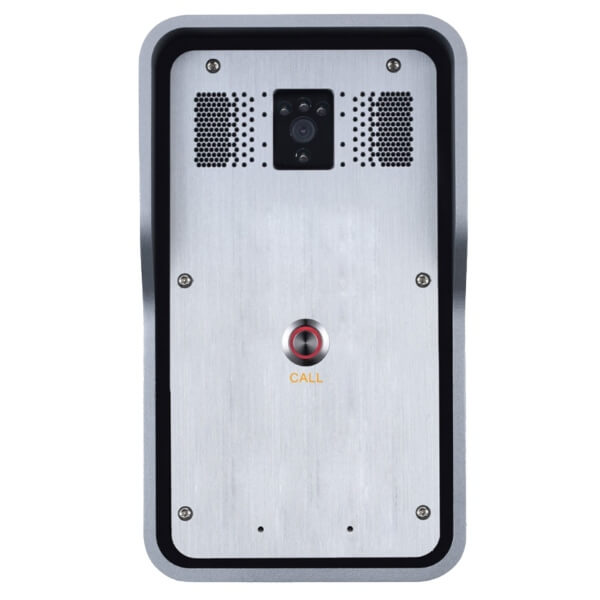

Fanvil i18S Nairobi Kenya

Fanvil i18S SIP Video Door Phone in Kenya gives you 720p HD video and rich wideband audio in a secure, network-enabled door phone. The Fanvil i18S SIP Video Door Phone supports open SIP communications protocol, making it interoperable with a broad range of VoIP providers, including 3CX, BroadSoft, Asterisk, Xorcom, and Huawei. You can easily manage the video intercom through the network, a simple operation compared with traditional systems. Fanvil i18S SIP Video Door Phone uses a CMOS sensor to deliver a 720p30 video with a generous field-of-view of 120° x 109° to cover close-up callers. The full-duplex door phone allows you to speak in wideband audio with users. Fanvil includes environmental noise reduction technology to clarify the sound.

Fanvil I18s Door Phone Nairobi

Fanvil I18s Door Phone Nairobi

Fanvil i18S has a rugged aluminum casing that gives it IP165 and IK10 – rated protection against the elements and tampering. Add to that an operating temperature range of -40°F – 158°F and you have an HD video intercom that works in almost any condition. The Gigabit Ethernet port connects to Power over Ethernet, so you can power the intercom through the cable that connects it to your network.

Fanvil i18S IP Video Intercom Key Features :

  • Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
  • Enclosure designed on International Protection (IP) markings to protect against intrusion – accidental or intentional – waterproofed to IP65 and anti-collision up to IK10
  • Adapts to operate under various environmental conditions and temperatures (supports temperatures ranging from -40 to 70 Celsius.)
  • All-in-One(Access Control, Intercom, and Broadcasting)
  • Built-in 3W speaker and AEC, support high-quality hand-free communication.
  • Built-in HD camera and with backlight compensation function
  • System online maintenance and management

HD Voice Quality :

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i18S SIP Door Phone Kenya delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high – quality hands-free communication.

Water & Dust – Resistant :

The Fanvil i18S SIP Video Door Phone Kenya is made of the high strength aluminum alloy with Cast aluminum bottom and has a fixed hexagon screw to keep the surface shell from being removed. This structure can successfully prevent the Fanvil i23S IP Door Phone  from moisture, dust and minimizes any man‐made damage. Its power resistant level is up to Ik10 standard, while  its water and dust‐proof level is up to IP65. It is therefore a highly durable device that can withstand harsh weather conditions such as rain, hence saving you from frequent repair costs due to mechanical damages. It can be used in many different outdoor settings.

Multi – Platform Compatibility :

The Fanvil i18S SIP Door Phone is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i18S SIP Door Phone without wasting much time.

2 SIP Lines :

The Fanvil i18S SIP Door Phone supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE) :

The Fanvil i18S SIP Door Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i18S SIP Door Phone can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i18S Door Phone is based on SIP v2 (RFC 3261 and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving :

The Fanvil i18S SIP Door Phone is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions

Fanvil i18S IP Video Intercom Specifications :

Generic

  • 2 SIP Lines
  • PoE Enabled
  • Full-duplex speakerphone (HF)
  • Intelligent DSS Keys (Speed Dial/intercom etc)
  • HD Video 1280x720p
  • HD Voice with G.722 encoding
  • Anti-tamper alarm
  • Advanced protection with IP65 and IK10
  • Integrated Noise Reduction with dual MICs
  • Omnidirectional pickup
  • 2 embedded short-circuit output relays
  • External Power Supply
  • Record voice and video during calls(optional)
  • All in ONE intercom and paging service and Security Linkage
  • Wall-mount

Call Features

  • Voice/video Intercom
  • Speed Dial(speed dial key)
  • Auto-Answering (per line)
  • Voice Message (on the server)
  • Barge in and calls switched automatically
  • Local 3-way Conference

Phone Features

  • High-Quality video calls
  • Support SIP 2.0 and related RFCs
  • Programmable DSS keys
  • Network Time Synchronization
  • Action URL / Active URI

Audio

  • Wideband CODEC: G.722
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K,
    G.729AB, iLBC, AMR
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free
    Mode, 128ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise
    Generation (CNG) / Background Noise Estimation
    (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out of Band (RFC2833) / SIP INFO
  • Omnidirectional pickup: pickup distance 5 m

Video

  • Video codec: H.264 / H.263
  • Image codec: JPEG/PNG/BMP/GIF
  • Video format: MP4/3GP/FLV
  • Video call resolution: QCIF / CIF / VGA / 4CIF / 720P
  • Bandwidth selection: 64kbps~4Mbps
  • Frame rate selection: 10~30fps

Networking

  • 802.3af PoE
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / PPTP / IPSec
  • VLAN: 802.1p/q
  • QoS: DSCP

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • Tr069

Deployment & Maintenance

  • Auto-Provisioning via
    FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Backup/Restore
  • Firmware Upgrade

Physical Specifications

  • Keypad:1or2 DSS Keys (Speed Dial)
  • 1 10/100/1000BASE-T RJ45 Ethernet interface, Auto-
    MDIX
  • PoE: 802.3af,Class 3
  • Main Chipset: Freescale quad cores 1GHz CPU
  • SDRAM:1GB DDR3
  • Flash:4GB
  • TF card:embedded 32GB(optional)
  • Camera: 1284 x 724, CMOS(1/4inch)
  • Passive Switch(short-circuit output): Normally Open and
    Normally Closed highest at 30V/1A AC/DC
  • View angle:120°(H)109°(V)
  • IRNIGHT Vision: yes
  • Audio Amplifier: 3W
  • Cables: CAT5 or better
  • Power Supply:12V±15%/1A DC or PoE
  • Shell Material: Aluminum Cover and Cast-Aluminum back
    case
  • Protection level: IP65 and Ik10
  • Storage Temperature:-40~70℃
  • Working Humidity: 10~90%
  • Overall Dimension: 223 x 130 x 74mm (W x H x L)
  • Package Weight:1.45KG
