Fanvil i23S IP Door Phone Kenya



Fanvil i23S SIP Door Phone Kenya

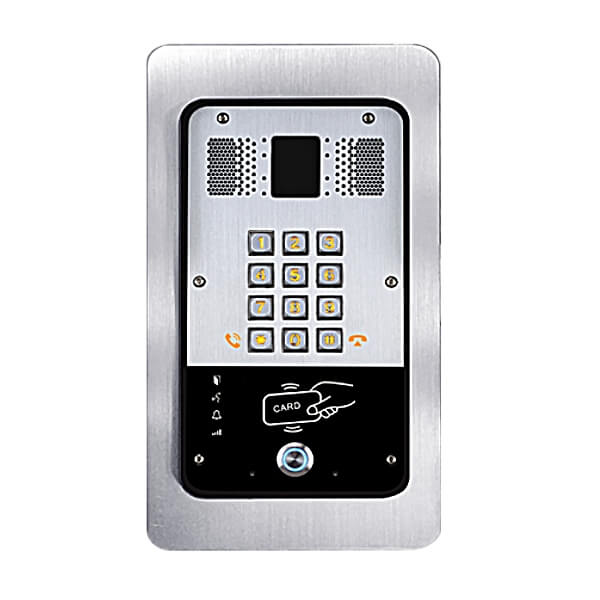

The Fanvil i23S in Nairobi is a SIP audio door phone with an anti-vandalism system. It is combined with security, intercom, transmission, and access control functions with HD audio. The i23S SIP Door Phone is designed for outdoor use with robust performance and an IP65 / IK10 level of protection for harsh outdoor environments.

Description

Fanvil i23S IP Door Phone Nairobi, Kenya

Fanvil i23 IP Door Phone in Kenya is an all-weather intercom with network connectivity which uses SIP and a built-in 125 kHz RFID card reader. Fanvil i23S has a rugged aluminum casing that makes it IP65 and IK10 rated against the elements and tampering. The Fanvil i23S IP Door Phone supports the open SIP communications protocol, making it compatible with many VoIP platforms, including 3CX, BroadSoft, Asterisk, Xorcom, and Huawei. Being a VoIP intercom, the Fanvil i23S IP Door Phone is simpler to manage, scalable, with less burden on your infrastructure, and includes PoE power. Fanvil i23S IP Door Phone gives you full-duplex wideband audio with background noise reduction to clarify pages.

The integrated RFID card reader makes the Fanvil i23S IP Door Phone part of a secure door entry system. The full keypad is easy to operate and is built to last. With a Broadcom chipset and dual Ethernet ports with pass-through, the Fanvil i23S IP Door Phone can be part of your IP intercom network for years to come. It has an incredible operating temperature range of -40°F to 158°F. The Fanvil i23S is an all-in-one door phone that supports remote DTMF, local password, and RFID cards as ways to open the door. It also features a speed-dial button calling with a one-button press for easier operation. With easy network configuration and the ability for users to use an IP phone, PC, or softphone in order to talk to visitors or monitor remotely, the Fanvil i23S IP Door Phone is exactly what you need for your door phone needs.

Fanvil I23s Ipdoorphone Nairobi

Fanvil I23s Ipdoorphone Nairobi

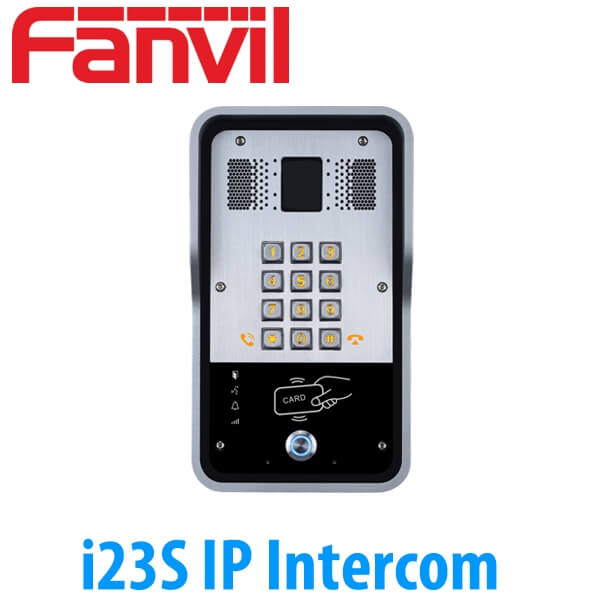

The robust mechanical construction of the i23S IP Video Intercom offers a protective coverage rating against dust and water (IP65), malicious damage (IK10), and freezing temperatures. Simplify the operation with the press of one button.

Fanvil I23s Door Phone Nairobi

Fanvil I23s Door Phone Nairobi

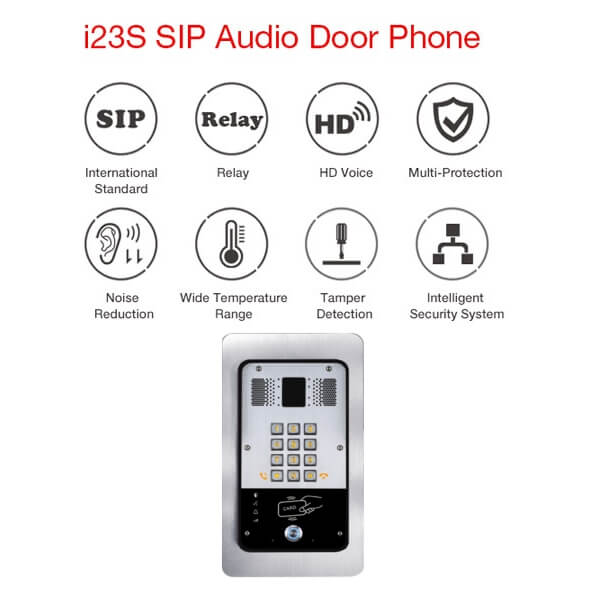

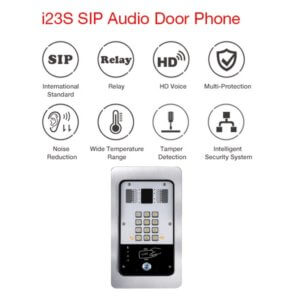

Fanvil i23S IP Door Phone Key Features :

  • Compatible with standard SIP(RFC3261) protocol and main IP-PBX/IMS platform
  • Enclosure designed on International Protection (IP) markings to protect against intrusion – accidental or intentional – waterproofed to IP65 and anti-collision up to IK10
  • Adapts to operate under various environmental conditions and temperatures (supports temperatures ranging from -40 to 70 Celsius.)
  • All-in-One(Access Control, Intercom, and Broadcasting)
  • Status indication icon
  • Access Control(by call, by code, IC/RFID, Indoor Switch)
  • Built-in 3W speaker and AEC, support high-quality hands-free communication.
  • System online maintenance and management

HD Voice Quality :

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i23S SIP Door Phone Kenya delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high – quality hands-free communication.

Water & Dust – Resistant :

The Fanvil i23 SIP audio door Phone Kenya is made of the high strength aluminum alloy with Cast aluminum bottom and has a fixed hexagon screw to keep the surface shell from being removed. This structure can successfully prevent the Fanvil i23S IP Door Phone  from moisture, dust and minimizes any man‐made damage. Its power resistant level is up to Ik10 standard, while  its water and dust‐proof level is up to IP65. It is therefore a highly durable device that can withstand harsh weather conditions such as rain, hence saving you from frequent repair costs due to mechanical damages. It can be used in many different outdoor settings.

Multi – Platform Compatibility :

The Fanvil i23S SIP Door Phone is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i23S SIP Door Phone without wasting much time.

2 SIP Lines :

The Fanvil i23S SIP Door Phone supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE) :

The Fanvil i23S SIP Door Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i23 SIP Door Phone can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i23S Door Phone is based on SIP v2 (RFC 3261 and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving :

The Fanvil i23 SIP Door Phone is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions

Fanvil i23S IP Door Phone Specifications :

Access control function :

Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
PoE Enabled
Full-duplex hands-free (HF)
Default Auto Answer
Open the door operation: DTMF, password, RFID card, switch
Support 200,000 door open records
Support 1000 remote access list
Support 1000 RFID cards
Support electric lock internal or external power supply options
Support customized DSS keys
Network Time Synchronization
Action URL / Active URI remote control

Audio :

Narrowband speech codec: G.711a / u, G.723.1, G.726-32K,
G.729AB
Broadband speech codec: G.722
Full Duplex Echo Cancellation (AEC) – 96ms tail-length
DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

Networking/ Protocols :

Support PoE (802.3af)
Primary and secondary DNS servers are supported
Support RTSP
Support SNTP client
VLAN
Support VPN L2TP / openVPN
Support SRTP
Support HTTP / HTTPS web pages
Support QoS: 802.1p / q, DSCP
Support MD5 authentication
Support Web Filter
DHCP / static / PPPoE
Support STUN

Deployment & Maintenance :

Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
Web Management Portal
Web-based Packet Dump
Configuration Backup / Restore
Entry Log Export
Access Table Export / Import
Firmware Upgrade
Syslog(include door access logs)

Physical Specifications :

1 DSS button (speed dial button)
5 indicator lights (including hot-key backlight)
Numeric keypad
1 indoor switch
1 relay: MAX DC30V / 1A, AC125V / 0.5A
Active switching output: 12V / 650mA DC
RFID reader: ID (EM4100) standard type, IC(MIFARE ONE)
Microphone: -38dB

Speaker: 4Ω / 3W
WAN port: RJ-45, 10 / 100M adaptive
Power supply: 12V ± 15% / 1A DC or POE
PoE: 802.3af (Class 3 – 6.49 to 12.95W)
Network cable: CAT5 or better
Shell Material: Aluminum Cover and Cast-Aluminum back case
Installation method: Wall-mounting or Flush-mounting
Storage Temperature:-40~70℃
Working Humidity: 10~90%
Protection level: IP65 and IK10
Overall Dimension: 223 x 130 x 74mm (W x H x L)
Gift Box Dimensions: 310 x 175 x 115mm
Outer CTN Dimensions: 370 x 370 x 330mm(6 PCS)
Package Weight:1800g
