Description

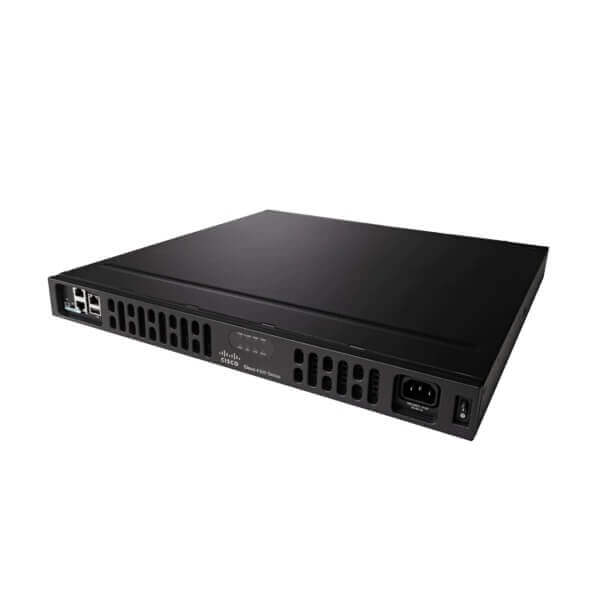

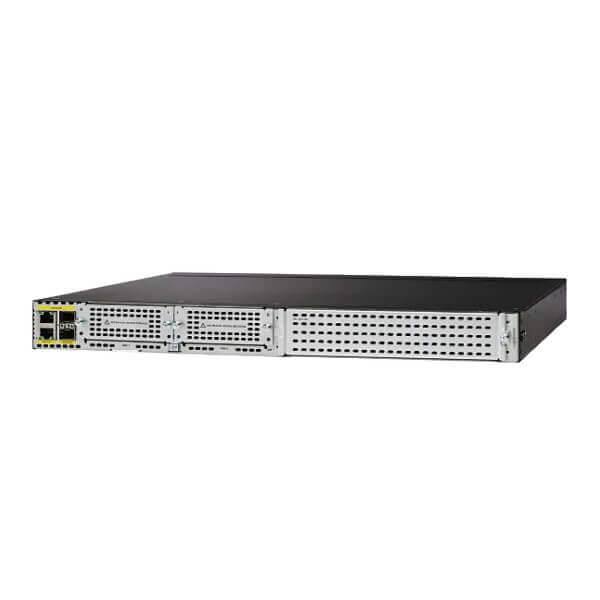

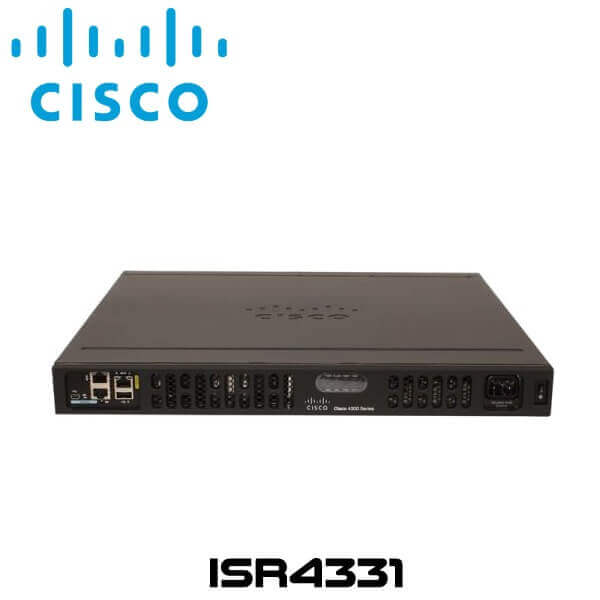

Cisco ISR4331 Integrated Service Router Kenya
The Cisco ISR4331 Kenya Integrated Service Router provides routing, hosting, security, and switching–all in a single, trustworthy platform ensuring you achieve digital branch to be secure, fast, and scalable. Cisco ISR4331 Kenya packs latest technologies, from SD-WAN to edge computing, while meeting the explosive network-performance needs driven by cloud applications and digital transformation. The Cisco ISR4331 Integrated Service Router revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
Features
Reliable Scalable performance
Cisco ISR4331 Kenya is equipped with high architecture design for mission-critical branches. The router delivers high-speed, predictable performance and modularity to connect from most remote locations.
Network services
Cisco ISR4331 Kenya allow deployment of key integrated network services for your branch in minutes, virtually or on-premises, without sacrificing performance.
Simplified management
Configure and monitor your network and enforce business policies through Cisco DNA Center and Cisco SD-WAN. Simplify network automation and turn hours of work into minutes.
Threat protection
Protect your branch site across the LAN and WAN and in the cloud with security integrated Cisco ISR4331 Kenya. You no longer need a separate security appliance.
Cisco Software Defined WAN
Cisco SDWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. Cisco ISR4331 Kenya is SDWAN-enabled routers like the ISR 4000 dynamically route traffic across the “best” link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links – control that you need as your branches conduct greater volumes of mission-critical business.
Cisco Converged Branch Infrastructure
The Cisco ISR4331 Kenya consolidates many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.
Cisco Intent Based Networking and Digital Network Architecture (Cisco DNA)
The Cisco Digital Network Architecture (Cisco DNA) is an open, extensible, software-driven architecture that provides for faster innovation, helping to generate deeper insights, and deliver exceptional experiences across many different applications. Cisco DNA relies on intent-based networking, a revolutionary approach in networking that helps organizations automate, simplify, and secure the network.
Throughput & Service reliability
- Concurrent software services at speeds up to 2 Gbps. Backplane architecture supports high-bandwidth module-to-module communication at speeds up to 10 Gbps.
- A distributed multicore architecture with the industry’s first internal services plane.
- Remote installation of application-aware services, which run identically to their counterparts in dedicated appliances.
Lower WAN expenditures
Embedded SDWAN solution for creating lower-cost, business-class Internet connections.
Pay-as-you-grow Performance upgrade model, Investment protection as CapEx budget management
- Cisco ISR4331 Kenya capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings.
Superior and secure user application experiences
- ISR-AX “Application Experience” software bundle with advanced routing and network monitoring services.
- Dynamic Multipoint VPN (DMVPN), zone-based firewalls, Intrusion Prevention (Snort & Umbrella Branch) and Content Management using Cisco Cloud Web security & OpenDNS protecting data, providing authentication credentials, and transmissions not backhauled through the data center.
- Secure boot feature performs hardware-based authentication of the bootloader software to prevent malicious or unintended software from booting on the system.
- Code signing verifies digital signatures of executables prior to loading to prevent execution of altered or corrupted code.
- Hardware authentication protects against hardware counterfeiting by using an on-board tamper-proof silicon, including field replaceable modules. If authentication fails, the module is not allowed to boot
IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
Single converged branch platform integrates routing, switching, virtual server, storage, security, unified communications, WAN optimization, and performance management tools.
Business continuity and increased resiliency
- The Cisco ISR4331 Kenya supports optional power supply capable of delivering additional PoE power to endpoints.
- Modular network interfaces with diverse connection options for load-balancing and network resiliency.
- Modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.
- Cisco Unified Survivable Remote Site Telephony (SRST), which serves as a resiliency complement to Cisco Hosted Collaboration Solution (HCS), a Cisco cloud-based UC service.
- Support for multiple, diverse access links: T1/E1, T3/E3, Serial, xDSL, Gigabit and Ten-Gigabit Ethernet.
Lower telephony costs with VoIP and rich media experiences
- High-performance analog/digital gateway, allowing VoIP over less expensive Session Initiation Protocol (SIP) trunks.
- Integrated IP PBX (Cisco Unified Communications Express) and Session Border Controller (Cisco Unified Border Element, or CUBE).
Easier manageability and support
- Cisco ISR4331 Kenya has single, universal software image for all features and performance-on-demand licensing flexibility.
- No additional services and support needed for compute and storage.
- Supported by Cisco and third-party management tools, with programmability and automation.
Specifications
| Model | Cisco 4461 | Cisco 4431 | Cisco 4331 | Cisco 4221 |
| Aggregate Throughput (Default) | 1.5Gbps | 500 Mbps | 100 Mbps | 35Mbps |
| Aggregate Throughput (Performance License) | 3Gbps | 1Gbps | 300 Mbps | 75 Mbps |
| Aggregate CEF Only1 Throughput (Boost License) | Over 7Gbps | Over 4Gbps | Over 2Gbps | 1.2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 3 | 2 |
| Total onboard WAN or LAN 10Gbps ports | 2 | — | — | — |
| RJ-45-based ports | 4 | 4 | 2 | 2 |
| SFP-based ports | 4 | 4 | 2 | 1 |
| Enhanced service-module slots | 3 | 0 | 1 | 0 |
| Doublewide service-module slots | 2 | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | No |
| Default memory double-data-rate 3 (DDR3) errorcorrection-code (ECC) DRAM (Combined control/services/d ata planes) | NA | NA | 4GB | 4GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/d ata planes) | NA | NA | 16GB | 4GB |
| Default memory DDR3 ECC DRAM (data plane) | 4 GB | 2 GB | NA | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | 4 GB | 2 GB | NA | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | 8 GB | 4 GB | NA | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 32 GB | 16 GB | NA | NA |
| Default flash memory | 8 GB | 8 GB | 4 GB | 8 GB |
| Maximum flash memory | 32 GB | 32 GB | 16 GB | 8 GB |
| External USB 2.0 slots (type A) | 2 | 2 | 1 | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 | 1 | 1 | 0 |
| Serial console port – RJ45 (up to 115.2 kbps) | 1 | 1 | 1 | 1 (combo CON/AUX port) |
| Serial auxiliary port – RJ45 (up to 115.2 kbps) | 1 | 1 | 1 | 1 (combo CON/AUX port) |
| Power-supply options | Internal: AC, DC and PoE | Internal: AC, DC and PoE | Internal: AC, DC, and PoE | External AC only |
| Redundant power supply | Internal: AC, DC and PoE | Internal: AC, DC and PoE | N/A | N/A |
| Power Specifications | ||||
| AC input voltage | 100 to 240 VAC autoranging | 100 to 240 VAC autoranging | 100 to 240 VAC autoranging | 100 to 240 VAC autoranging |
| DC Input Voltage Input Voltage Input Current |
48 – 60V 12A Max |
48 – 60V 12A Max |
24 – 60V 14 – 5A |
NA NA |
| AC input frequency | 47 to 63 Hz | 47 to 63 Hz | 47 to 63 Hz | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A | 3 to 1.3A | 3 to 1.3A | 1.5 to 0.6A |
| Sizes and Weights | ||||
| Dimensions (H x W x D) | 3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm) |
1.73 x 17.25 x 19.97 in (43.9 x 438.15 x 507.2 mm) |
1.75 x 17.25 x 17.25 in (44.45 x 438.15 x 438.15 mm) |
1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm) |
| Wall-mount | No | Yes | Yes | Yes |
| Typical weight (fully loaded with modules) | 22.4 lb (10.2 kg) | 16.1 lb (7.3 kg) | 8.11 lb (3.68kg) | |
| MTBF (Hours) | 480770 | 512970 | 587250 | 593270 |
| Environmental Specifications | ||||
| Operating Conditions | ||||
| Temperature | 32 to 104ºF (0 to 40ºC) | 32 to 104ºF (0 to 40ºC) | 32 to 104ºF (0 to 40ºC) | 32 to 104ºF (0 to 40ºC) |
| Relative humidity | 5% to 85% | 5% to 85% | 5% to 85% | 5% to 85% |
| Nonoperating Conditions | ||||
| Temperature | -40 to 158ºF (-40 to 70ºC) |
-40 to 158ºF (-40 to 70ºC) |
-40 to 158ºF (-40 to 70ºC) |
-40 to 158ºF (-40 to 70ºC) |
| Relative humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
| Cisco IOS XE Software | ||||
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah | |||
| Encapsulations | Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) | |||
| Traffic management | QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing, and NBAR. | |||
| Cryptographic Algorithms | Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 | |||
