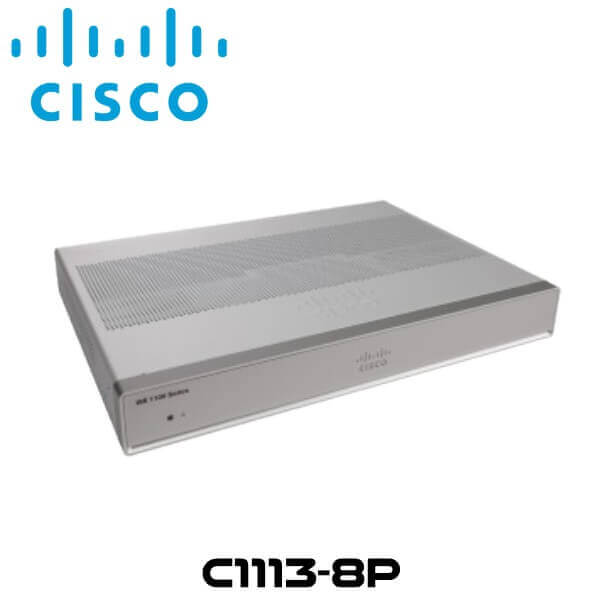

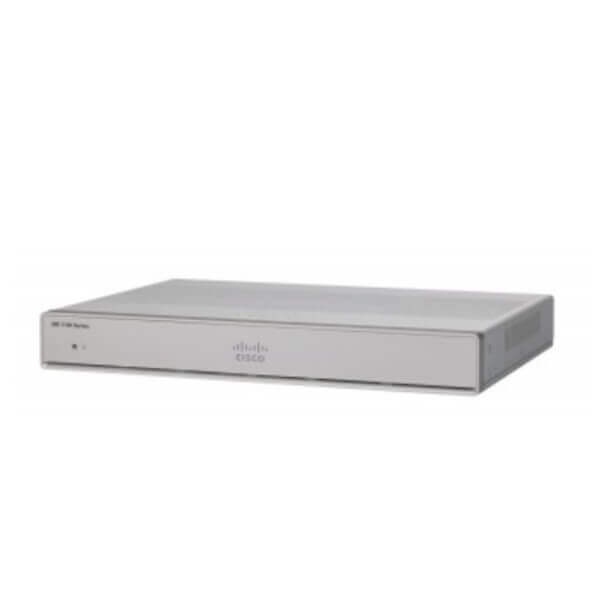

Cisco C1113-8P Kenya



Cisco C1113-8P Kenya

The Cisco C1113-8P Kenya Integrated Services Router with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device.

Category:

Description

Cisco C1113-8P Integrated Services Router Kenya

The Cisco C1113-8P Kenya Integrated Services Router with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The router is easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities. The Cisco C1113-8P Kenya is well suited for deployment for Small and Medium enterprise branch offices, in service provider managed environments as well as smaller form factor. The C1113-8P is the ISR 1100 G. FAST with GE SFP Ethernet Router.

Features

Lightweight, compact size with low power consumption

The Cisco C1113-8P Kenya Integrated Services Router can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology).

High performance to run concurrent services

The Cisco C1113-8P Kenya Integrated Services Router offer high performance allowing customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. C1160 models will have better overall performance.

High availability and business continuity

  • Redundant WAN connections for failover protection and load balancing.
  • Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multi-group HSRP (MHSRP).

Consistent, high application performance levels

The Cisco C1113-8P Kenya Integrated Services Router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

  • Network perimeter security with integrated application inspection firewall.
  • Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
  • High-performance VPNs : DMVPN, FlexVPN, GETVPN.
  • Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
  • Cisco Umbrella ™Â is a cloud security platform that provides the first line of defense against threats on the internet wherever users go.
  • Security hardware acceleration.
  • Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

Unified control of wired and wireless networks from a common console for streamlined operations

  • Cisco C1113-8P Kenya Integrated Services Router simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
  • Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

  • Cisco C1113-8P Kenya Integrated Services Router supports separate console and USB ports. Can be configured to work with optional USB token.
  • Supports TR-069.

Enhanced Visibility

Natively integrated with Cisco ThousandEyes to extend visibility beyond traditional into the Internet, cloud, and SaaS

Lower WAN expenditures

  • Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
  • Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.

Pay as you grow : IPsec performance upgrade model

Cisco C1113-8P Kenya Integrated Services Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

Cisco C1113-8P Kenya Integrated Services Router has an optional upgrade to enable PoE capabilities on the integrated ethernet switch modules is available. It offers supports Power over Ethernet (PoE) and PoE+ power to endpoints

Support for Cisco SD-WAN

  • Better user experience The Cisco C1113-8P Kenya Integrated Services Router has ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
  • Greater agility. Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months
  • Advanced threat protection. Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data

Specifications

Description ISR 1100 G.FAST with GE SFP Ethernet Router
Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm)
AC Input Power
Input voltage Universal 100 to 240 VAC
Frequency 50-60 Hz
Maximum output power 66W (default)
Output voltages 12 VDC
PoE and PoE+ Single 150W power supply required for Cisco 1100-8P series router
External output voltage 48 VDC
Ports
GE N/A
GE/SFP combo 1
ADSL2/VDSL2+ 1 G.FAST (Annex A)
GE 8
PoE 4
PoE+ 2
Integrated USB 3.0 AUX/console Yes
Default and maximum DRAM 4GB
Default and maximum flash 4GB
Approvals and compliance Emission

  • 47 CFR Part 15
  • CISPR 32 Edition 2
  • EN 300 386 V1.6.1
  • EN 55032 :2012/ AC :2013
  • EN 55032 :2015
  • EN61000-3-2 2014
  • EN61000-3-3 : 2013
  • ICES-003 ISSUE 6 :2016
  • KN 32 : 2015
  • V-2/2015.04
  • V-3/2015.04
  • TCVN 7189 : 2009
  • CNS13438 : 2006
  • IEC 60950-1
  • EN 60950-1
  • UL 60950-1
  • CSA C22.2 No. 60950-1

Immunity

  • CISPR24 : 2010 + A1 : 2015
  • EN 300 386 V1.6.1
  • EN55024 : 2010 + A1 : 2015
  • KN35 : 2015
  • TCVN 7317 : 2003
Environmental
Operating humidity 10% to 85% relative humidity (noncondensing)
Operating temperature 32° to 104°F (0° to 40°C)
Transportation and Storage
Non-operating temperature -4° to 149°F (-0° to 65°C)
Non-operating humidity 5 to 95% relative humidity (noncondensing)
Non-operating altitude 0 to 15,000 ft (0 to 4570m)
