Cisco ASR1004 Kenya



Cisco ASR1004 Kenya

Cisco ASR1004 Kenya is Aggregation Service Router is cost-effective routing for enterprises providing a Software Defined WAN platform that aggregates multiple WAN connections and network services including encryption and traffic.

Category:

Description

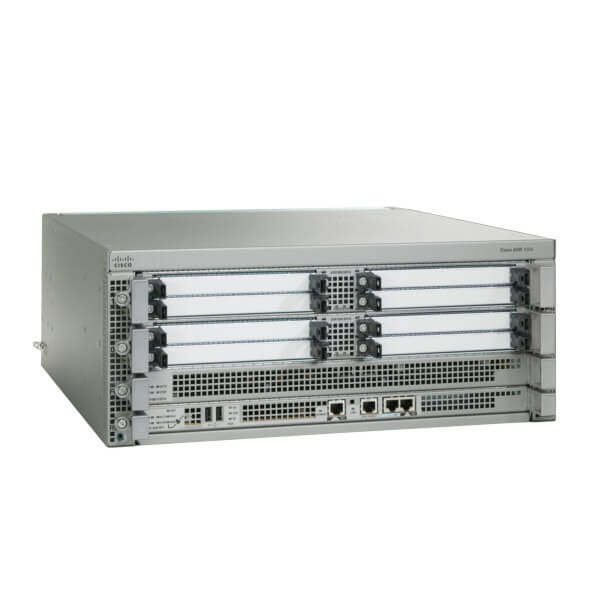

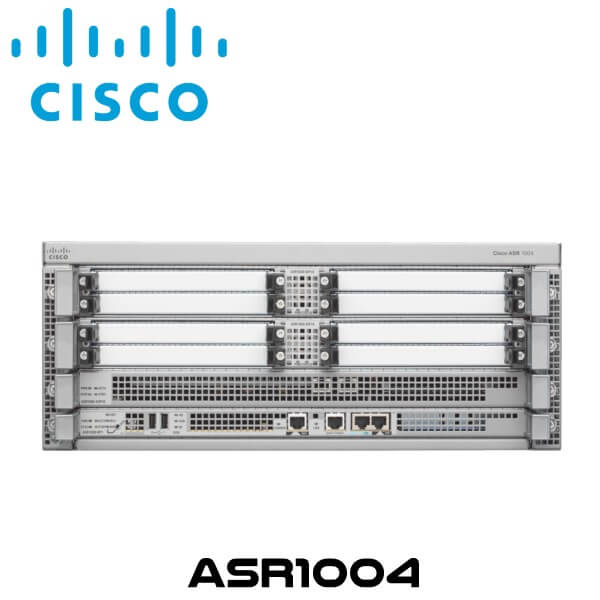

Cisco ASR1004 Aggregation Service Router Kenya

Cisco ASR1004 Kenya is Aggregation Service Router is cost-effective routing for enterprises providing a Software Defined WAN platform that aggregates multiple WAN connections and network services including encryption and traffic. The Cisco ASR1004 Kenya is Aggregation Service Router in a 4-rack unit (RU) form factor supports up to 8 shared port adapters (SPAs) and comes with one route processor and one embedded services processor slot. This provides flexibility for future upgrades, enhancing control plane and data plane scalability. The Cisco ASR 1004 Router provides up to 40 Gbps throughput support, making it a very cost-effective edge solution. Running on Cisco IOS XE Software, the Cisco ASR1004 Kenya router supports software redundancy without redundant hardware.

The Cisco ASR1004 Kenya Aggregation Service Aggregation Router is designed to optimize service provider edge and enterprise aggregation solutions. The innovative hardware and software design of these routers integrates powerful resiliency and intelligent services into a single router platform. This provides flexibility for future upgrades, enhancing control plane and data plane scalability. The Cisco ASR 1004 router provides 10 Gbps throughput support, making it a very cost-effective edge solution.

Features

  • High-performing edge solution for the private WAN
  • WAN aggregation or Internet gateway device
  • Service provider routing solutions use the Cisco ASR 1004 :
  • As a broadband Layer 2 Tunneling Protocol (L2TP) access concentrator (LAC) or L2TP Network Server (LNS)
  • At the Layer 3 VPN (L3VPN) provider edge

Cisco Software-Defined WAN

Cisco SD-WAN can be enabled on the Cisco ASR1004 Kenya with IOS-XE. Cisco SD-WAN offers an entirely new way to manage and operate your WAN infrastructure. Cisco SD-WAN is a cloud delivered architecture that offers secure, flexible and rich services with the following key benefits :

  • Better user experience : The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
  • Greater agility : Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months.
  • Advanced threat protection : Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data.

SD-WAN Integrated Security

In order to efficiently connect to multiple cloud infrastructures many enterprise customers want to build an SD-WAN infrastructure that uses Direct Internet Access (DIA). This can save costs and reduce complexity by reducing WAN traffic backhauled to your data centers; however, connecting branches directly to the internet without the right security controls exposes your network to threats and vulnerabilities.

With Cisco SD-WAN and the Cisco ASR1004 Kenya, you have integrated security built-right-in for branch DIA security with these integrated security capabilities :

  • Application aware enterprise firewall
  • DNS layer enforcement (Umbrella)

And with Cisco SD-WAN security integration you will reduce complexity by having a single management interface (vManage) for both the network and security.

Application visibility

Applications and users are more distributed than ever, and the internet has effectively become the new enterprise WAN. As organizations continue to embrace internet, cloud, and SaaS, network and IT teams are challenged to deliver consistent and reliable connectivity and application performance over networks and services they don’t own or directly control.

The Cisco ASR1004 Kenya is integrated with Cisco ThousandEyes internet and cloud intelligence. IT managers now have expanded visibility, including hop-by-hop analytics, into network underlay, proactive monitoring of SD-WAN overlay, and performance measurement of SaaS applications. This granular visibility ultimately lowers the Mean Time to Identification of Issues (MTTI) and accelerates resolution time.

Unified access security and multi-factor authentication

The Zero trust security model allows secure connections to all applications (whether on premises or in the cloud) based on the trustworthiness of users and devices.

Specifications

Physical specifications

.

  • Height : 7 in. (177.8 mm)
  • Width : 17.2 in. (437.4 mm)
  • Depth : 18.15 in. (461.0 mm)
  • Weight : 68.7 lb (31.16 kg)

With dual AC power supply, SPA blank covers, Cisco ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], Cisco ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)

Default memory
  • 4-GB DRAM RP1
  • 8-GB DRAM RP2
Number of SIPs or Ethernet line cards supported 2
Shared port adapters 8 SPA slots
Ethernet port adapters N/A
Cisco ASR 1000 Series ESP 1 ESP slot
Route processor 1 route-processor slot
Redundancy Software : Yes
Built-in Gigabit Ethernet ports 0
Built-in 10 Gigabit Ethernet port No
Network interface module No
Cisco ASR 1000 Series Cisco ASR 1004
ESP support Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), and Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40)
ESP bandwidth 10 to 40 Gbps
ESP memory
  • Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) : 2‑GB DRAM default; 2‑GB DRAM maximum
  • Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) : 4‑GB DRAM default; 4‑GB DRAM maximum
SIPs and Ethernet line cards Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Cards; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)
Embedded hardware-based encryption Yes : On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps and on Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput

Note : No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)

Minimum Cisco IOS XE Software release Cisco IOS XE Software Release 2.1
Rack-mounting Yes : 19-inch
Wall-mounting No
External USB flash memory 1-GB USB flash-memory support
Redundant power supply Same as for Cisco ASR 1002
Power input Same as for Cisco ASR 1002
Power consumption
  • Maximum (DC) : 1020W
  • Maximum (AC) : 960W
  • Maximum (out) : 765W
Airflow Front-to-back
Operating temperature (nominal) 32 to 104°F (0 to 40°C)
Operating temperature (short-term) 32 to 122°F (0 to 50°C)
Operating humidity (nominal) (relative humidity) 10 to 85%
Operating humidity (short-term) 5 to 90%
Storage temperature -40 to 150°F (-40 to 70°C)
Storage humidity (relative humidity) 5 to 95%
Operating altitude -500 to 10,000 feet
(152 to 3048 meters)
Network Equipment Building Standards (NEBS) GR-1089 and GR-63
EMC standards
  • FCC 47 CFR Part 15 Class A
  • VCCI Class A
  • AS/NSZ Class A
  • ICES-003 Class A
  • EN55022/CISPR 22 Information Technology Equipment  (Emissions)
  • EN55024/CISPR 24 Information Technology Equipment (Immunity)
  • EN300 386 Telecommunications Network Equipment (EMC)
  • EN50082-1/EN61000-6-1 Generic Immunity Standard
Safety Standard
  • UL60950-1
  • CSA C22.2 No. 60950-1-03
  • EN 60950-1
  • IEC 60950-1
  • AS/NZS 60950.1
