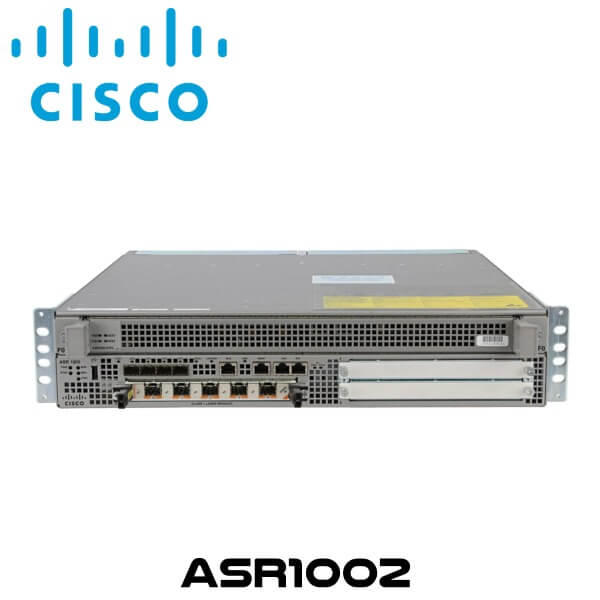

Cisco ASR1002 Kenya



Cisco ASR1002 Kenya

Cisco ASR1002 Kenya Router delivers the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis

Category:

Description

Cisco ASR1002 Router Kenya

Cisco ASR1002 Kenya Router delivers the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. Cisco ASR1002 router comes with built-in 1-GE and 10-GE ports, and offers instant-on service capabilities and on-demand crypto capability. It supports software redundancy without redundant hardware, just like Cisco ASR 1001-X, 1002-X, and 1004 routers. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.

Features

  • Pay-as-you-grow performance (44 – 100 Gbps)
  • Optional field replacement and Crypto module capability of up to 25 Gbps bandwidth with performance licenses
  • Support for built-in front panel 4xGE and 4x10GE; upgradeable to 8xGE amd 8x10GE with a license
  • Extendable I/O with 1 Ethernet port adapter, and 1 single-wide network interface module (NIM) or 1 double-wide NIM
  • Two AC or DC power supplies
  • One field-replaceable fan tray for front-to-back airflow

Cisco IOS® XE Software

The Cisco ASR1002 Kenya supports Cisco IOS® XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency.

Highly Secure

The Cisco ASR1002 Kenya Embedded Services Processors (ESPs), is based on Cisco Flow Processor technology, that accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), deep packet inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of data-center-interconnect (DCI) features.

Hardware acceleration

  • Cisco ASR1002 Kenya boasts of features like QoS, crypto, and access control lists (ACLs) are processed in hardware.

Control and forwarding-plane separation

  • Ability to scale control plane and data plane independent of each other.

Investment Protection

With Software modularity, Cisco ASR1002 Kenya provides the following benefits:

  • Allows you to mix and match the services that best meet your business needs; no “wasted” investments on capabilities you don’t need.

Cisco Shared Port Adapters (SPAs)

  • Allow you to reuse your investment in network I/O across platforms.

Cisco Network Interface Modules (NIMs)

  • Allow you to reuse your investment in network I/O across platforms.

Specifications

Manufacturer Cisco Systems, Inc
Manufacturer Part Number Cisco ASR 1002
Product Type Aggregation Service Router
Form Factor Desktop – modular – 3U
Connectivity Technology Wired
System Bandwidth 2.5G (default)
5G, 10G, 20G (upgrade)
Router Processor Quad-core 2.13Ghz processor
Build-in Gigabit Ethernet port 4 * SFP ports
Redundancy Software (license purchase separately)
Cisco ASR 1000 Series ESP 1 ESP slot
SIP and Ethernet line card Integrated ASR 1000-SIP10, not upgradable
Embedded hardware-based encryption  On Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5) with up to 1.8-Gbps crypto support throughput and on Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput
Rack-mounting 19-inch
DRAM Memory 4GB-shared across RP and SIP
Flash Memory 8 GB
Shared port adapters 3 SPA slots
External USB flash memory 1-GB USB flash-memory support
Cisco QuantumFlow Processor-based platform Enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Control and forwarding-plane separation Ability to scale control plane and data plane independent of each other.
expansion Card
  • 1-port OC48/STM16 POS/RPR Shared Port Adapters
  • 2-port OC12/STM4 POS Shared Port Adapters
  • 4-port OC-12/STM-4 POS Shared Port Adapters
  • 8-port OC12/STM4 POS Shared Port Adapters
  • 8-port OC-3/STM-1 POS Shared Port Adapters
  • 8-port Channelized T1/E1 to DS0 Shared Port Adapter
  • 1-port OC192/STM64 POS/RPR XFP Optics
  • SPA-2XOC12-POS with a license to use 1 port
  • SPA-4XOC3-POS-V2 with a license to use 2 ports
  • 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA
  • Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter
  • Synchronous Ethernet SPA
  • 1 port OC12 STM Shared Port Adapter
  • 8-port Channelized T1/E1 to DS0 Shared Port Adapter
  • 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2
  • 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2
  • Cisco 10-Port Gigabit Ethernet Shared Port Adapter
  • 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA2-port Clear Channel T3/E3 Shared Port Adapter, Version 2
  • 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2
  • 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2
  • 2-port OC48/STM16 POS/RPR Shared Port Adapters
  • 1 port OC-3c/STM-1 ATM Shared Port Adapter
  • 3 port OC-3c/STM-1 ATM Shared Port Adapter
  • 4-port OC-3/STM-1 POS Shared Port Adapters
  • Digital Signal Processor SPA
  • 1-port Channelized OC12 to DS0 SPA
  • Cisco 8-Port Gigabit Ethernet Shared Port Adapter
  • Cisco 4 port serial SPA
  • Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
  • Cisco 2-Port Gigabit Ethernet Shared Port Adapter
  • 4-port OC48/STM16 POS/RPR Shared Port Adapters
  • Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
  • Cisco 5-Port Gigabit Ethernet Shared Port Adapter
  • Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
  • 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA
Embedded Services Processor
  • Cisco ASR1000 Embedded Services Processor, 10G
  • ASR1K Embedded Services Processor,5Gbps,ASR1002 only
  • Cisco ASR1K Embedded Services Processor,10G,Non Crypto
1GB USB Flash Token MEMUSB-1024FT
Router  Processor Memory
  • M-ASR1K-1001-4GB
  • M-ASR1K-1001-8GB
  • M-ASR1K-1001-16GB
Feature License
  • Unified Border Element – Enterprise Edition 100 Sessions
  • Unified Border Element Ent, 100 Sessions, Redundancy
  • Unified Border Element Ent, 500 Sessions, Redundancy
  • Unified Border Element Ent, 1000 Sessions, Redundancy
  • Unified Border Element – Enterprise Edition 4000 Sessions
  • Unified Border Element Ent, 4000 Sessions, Redundancy
  • Unified Border Element – Enterprise Edition 16000 Sessions
  • Unified Border Element Ent, 16000 Sessions, Redundancy
  • CGN RTU Feature License for up to 2M Sessions on ASR1000
  • App Visibility and ControlFlex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series
  • Broadband Right-To-Use Feature Lic for ASR1000 Series
  • DBE Base Right-To-Use Lic for Release 2.3.x and prior
  • Firewall Right-To-Use Feature Lic for ASR1000 Series
  • GTP add-on to Firewall RTU Feature Licence for ASR1000
  • Firewall/NAT Stateful Inter-Chassis Redundancy License
  • NAT64 RTU Feature License for up to 2M Sessions on ASR1000
  • ASR1000 Lawful Intercept RTU
  • Encryption Right-To-Use Feature Lic for ASR1000 Series
  • SW Redundancy Right-To-Use Feat Lic for ASR1000 Series
AESK9
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES
  • Cisco ASR 1000 Series RP1 ADV ENT SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES
  • Cisco ASR 1000 Series RP1 ADV ENT SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES
  • Cisco ASR 1000 Series RP1 ADV ENT SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES
AES
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE W/O CRYPTO
AISK9
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O LI
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES
AIS
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O CRYPTO
  • Cisco ASR 1000 Series RP1 ADVANCED IP SERVICES W/O CRYPTO
IPBK9
  • Cisco ASR 1000 Series RP1 IP BASE
  • Cisco ASR 1000 Series RP1 IP BASE
  • Cisco ASR 1000 Series RP1 IP BASE
  • Cisco ASR 1000 Series RP1 IP BASE
IPB
  • Cisco ASR 1000 Series RP1 IP BASE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 IP BASE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 IP BASE W/O CRYPTO
  • Cisco ASR 1000 Series RP1 IP BASE W/O CRYPTO
MSS
  • ASR 1000 RP1 ADV ENTERPRISE SERVICES for Managed Service
  • ASR 1000 Series RP1 ADV IP SERVICES for Managed Services
  • Cisco ASR 1000 Series RP1 IP BASE for Managed Services
IOS XE Operating System Cisco IOS XE Software Release 2.1
