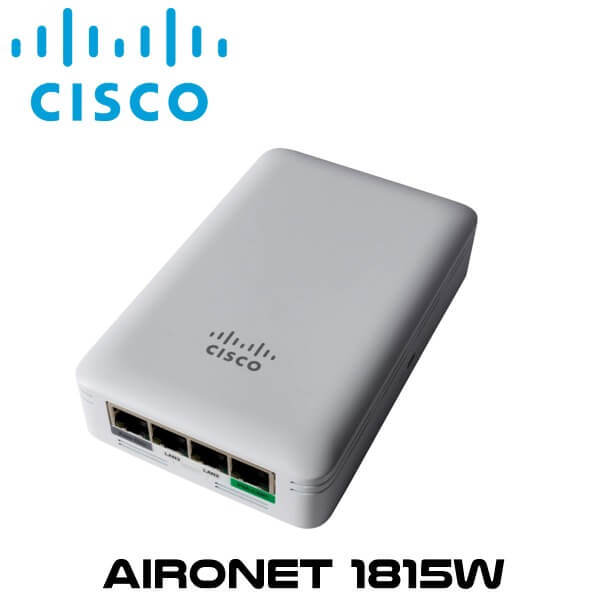

The Cisco Aironet1815w Kenya Access Point features a compact, wall plate mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.

Description

Cisco Aironet1815w Access Point Kenya

The Cisco Aironet1815w Kenya Access Point features a compact, wall plate mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments. With a sleek design and small form factor, the Cisco Aironet 1815w Access Point brings a full slate of Cisco high-performance functionality. Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the Cisco Aironet1815w Kenya is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.

With 802.11ac Wave 2 standard, the Cisco Aironet1815w Kenya provides a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users. The 1815w Cisco WiFi Kenya delivers industry-leading performance with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.

Features

MU-MIMO

Cisco Aironet1815w Kenya features Multiuser (MU) multiple-input multiple-output (MU-MIMO) allowing simultaneous data transmission to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as single-user MIMO (SU-MIMO).

Gigabit Ethernet ports

Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to a wireless LAN controller (for compatible controllers) or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera

Cisco Mobility Express solution

Flexible deployment through the Cisco Mobility Express solution is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows the Cisco Aironet1815w Kenya to be deployed on networks without a physical controller.

Integrated Bluetooth 4.1

Cisco Aironet1815w Kenya has integrated Bluetooth low-energy (BLE) 4.1 radio for location and asset tracking (future availability).

Increased Wireless Performance

The Cisco Aironet 1815w access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

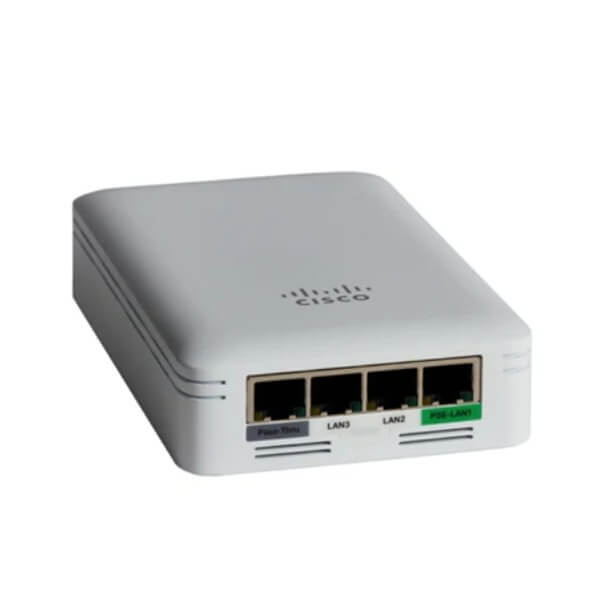

The Cisco Aironet1815w Kenya allows wired access via a single RJ-45 10/100/1000 auto detection port. It supports full operation modes using PoE 802.3af power. The 1815w comes with three local Gigabit Ethernet ports, one uplink Gigabit Ethernet port, and one passive pass-through RJ-45 port, allowing for a variety of connections.

Flexible Mounting

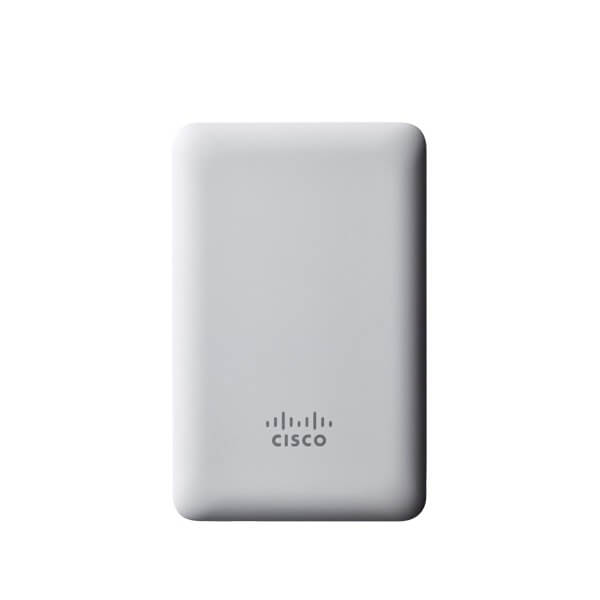

This sleek Cisco WiFi Kenya access point with a small form factor is designed with flexible mounting options in mind. You can mount it directly on the wall or to numerous global wall junction standards. The access point is also easy to install.

 Specifications

Authentication and security
  • Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
  • 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
  • 802.11r
  • 802.11i
Software
  • Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.3.112.0/83MR1 or later
  • Cisco Mobility Express
Supported WLAN controllers Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst  6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex  7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers.

Cisco Mobility Express

Maximum clients Maximum number of associated wireless clients : 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac
  • 2×2 single-user/multiuser MIMO with two spatial streams
  • Maximal Ratio Combining (MRC)
  • 20-, 40- and 80-MHz channels
  • PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
Ethernet ports
  • Authentication with 802.1X or MAC filtered
  • Dynamic VLAN or per port
  • Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability) Integrated Bluetooth 4.1 (including BLE) radio

Maximum transmit power: 4 dBm

Antenna gain: 2 dBi

Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
802.11n data rates on 2.4 GHz:
MCS Index GI = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 20-MHz Rate (Mbps)
0 6.5 7.2
1 13 14.4
2 19.5 21.7
3 26 28.9
4 39 43.3
5 52 57.8
6 58.5 65
7 65 72.2
8 13 14.4
9 26 28.9
10 39 43.3
11 52 57.8
12 78 86.7
13 104 115.6
14 117 130
15 130 144.4
  802.11ac data rates on 5 GHz:
MCS Index Spatial Streams GI = 800 ns GI = 400 ns
  20-MHz
Rate
(Mbps)
40-MHz
Rate
(Mbps)
80-MHz
Rate
(Mbps)
20-MHz
Rate
(Mbps)
40-MHz
Rate (Mbps)
80-MHz
Rate
(Mbps)
1 6.5 13.5 29.3 7.2 15 32.5
1 13 27 58.5 14.4 30 65
1 19.5 40.5 87.8 21.7 45 97.5
1 26 54 117 28.9 60 130
1 39 81 175.5 43.3 90 195
1 52 108 234 57.8 120 260
1 58.5 121.5 263.3 65 135 292.5
1 65 135 292.5 72.2 150 325
1 78 162 351 86.7 180 390
1 – 180 390 – 200 433.3
2 13 27 58.5 14.4 30 65
2 26 54 117 28.9 60 130
2 39 81 175.5 43.3 90 195
2 52 108 234 57.8 120 260
2 78 162 351 86.7 180 390
2 104 216 468 115.6 240 520
2 117 243 526.5 130 270 585
2 130 270 585 144.4 300 650
2 156 324 702 173.3 360 780
2 – 360 780 – 400 866.7
Maximum number of non-overlapping channels A (A regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

B (B regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.720 GHz; 12 channels
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

E (E regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)

F (F regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.250 to 5.350 GHz; 4 channels
  • 5.725 to 5.825 GHz; 4 channels

G (G regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.865 GHz; 7 channels

H (H regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels

N (N regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.660 to 5.700 GHz; 3 channels
  • 5.745 to 5.805 GHz; 4 channels

S (S regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
  • 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain) :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Note : This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings 2.4 GHz

  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1 dBm (0.78 mW)
5 GHz

  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1 dBm (0.78mW)
Note : The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas
  • 2.4 GHz, gain 2 dBi
  • 5 GHz, gain 4 dBi
Interfaces
  • 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) Access point (without mounting bracket) : 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental
  • Operating
    • Temperature : 32° to 104°F (0° to 40°C)
    • Humidity : 10% to 90% (noncondensing)
    • Max. altitude: 9843 ft (3000 m) @ 40°C
  • Nonoperating (storage and transportation)
    • Temperature : -22° to 158°F (-30° to 70°C)
    • Humidity : 10% to 90% (noncondensing)
    • Max. altitude : 15,000 ft (4500 m) @ 25°C
System
  • 1 GB DRAM
  • 256 MB flash
  • 710 MHz quad core
Input power requirements Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Powering options 802.3af/at Ethernet switch

Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

Power draw 8.3W (maximum, on PoE)
Physical security Torx security screw, included with the access point
Mounting Included with the access point: mounting bracket AIR-AP-BRACKET8
Accessories Mounting bracket : AIR-AP-BRACKET8= (available as spare)

Physical security kit : AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

Warranty Limited Lifetime Hardware Warranty
Compliance Safety

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 60601-1-2
  • Radio approvals
  • FCC Part 15.247, 15.407
  • RSS-247 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 50385
  • IEEE standards:
  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac

Security

  • 802.11i, WPA3, WPA2, WPA
  • 802.1X
  • AES
  • Extensible Authentication Protocol (EAP) types:
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • EAP-Flexible Authentication via Secure Tunneling (FAST)
  • PEAP v1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Multimedia

Wi-Fi Multimedia (WMM)

Other

  • FCC Bulletin OET-65C
  • RSS-102
