The Cisco Aironet1850i Kenya delivers great performance for enterprise and service provider markets via enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s 802.11ac Wave 2 specification.

Description

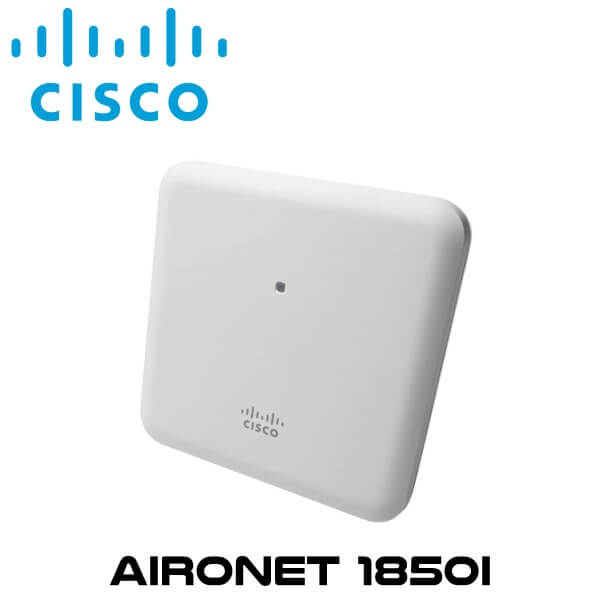

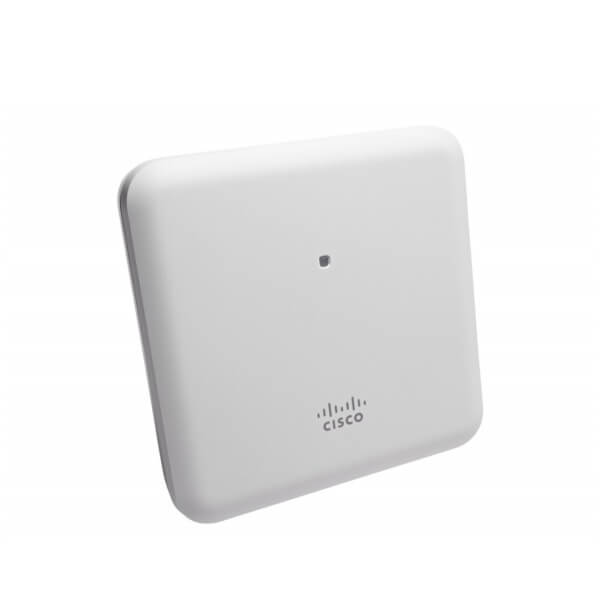

Cisco Aironet1850i Access Point Kenya

The Cisco Aironet1850i Kenya delivers great performance for enterprise and service provider markets via enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s 802.11ac Wave 2 specification. The Cisco Aironet1850i Kenya extends support to Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. With 802.11ac Wave 2, Cisco WiFi Kenya provides high data rate. Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users.

With 802.11ac Wave 2, the Cisco Aironet1850i Kenya provides a data rate of up to 1.7 Gbps on the 5-GHz radio, more than triple the rates offered by today’s high-end 802.11n access points. It also enables a total aggregate dual-radio data rate of 2.0 Gbps, providing the necessary foundation for enterprise and service provider networks to stay ahead of the performance and bandwidth expectations and needs of their wireless users. Due to its convenience, Cisco WiFi Kenya access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely.

Features

Multiuser MIMO

The Cisco Aironet1850i Kenya boasts 802.11ac Wave 2 with 4×4 Multiple-Input Multiple-Output (MIMO) technology with four spatial streams when operating in single-user MIMO mode and three spatial streams while operating in multiuser MIMO mode, offering 1.7-Gbps rates for more capacity and reliability than competing access points.

802.11ac Wave 1 and 2 capabilities

Cisco Aironet1850i Kenya features Multiuser MIMO, allowing transmission of data to multiple 802.11ac Wave 2 capable clients simultaneously to improve client experience. Prior to multiuser MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

Transmit beamforming technology

Transmit beamforming technology to improve downlink performance to mobile devices, including one-, two-, and three-spatial-stream devices on 802.11ac, while improving battery life on mobile devices such as smartphones and tablets.

Cisco Mobility Express

Cisco Aironet1850i Kenya boasts of flexible deployment mode through Cisco Mobility Express ideal for small to medium-sized deployments that require multiple access points. Easy setup allows the Cisco Aironet1850i to be deployed on networks without a physical controller.

OfficeExtend Access Point (OEAP)

Secure connections for remote workers or the micro-office. Cisco Aironet1850i Kenya, can function as an OfficeExtend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how.

Cisco User Defined Network

Cisco User Defined Network, a feature available in Cisco DNA Center, that allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network.

Increased Wi-Fi Experience

The Wi-Fi 6 readiness dashboard, a new dashboard in the Assurance menu of Cisco DNA Center. It will look through the inventory of all devices on the network and verify device, software, and client compatibility with the new Wi-Fi 6 standard. After upgrading, advanced wireless analytics will indicate performance and capacity gains as a result of the Wi-Fi 6 deployment.Cisco Aironet1850i Kenya assist team define where and how the wireless network should be upgraded. It will also give you insights into the access point distribution by protocol (802.11 ac/n/abg), wireless airtime efficiency by protocol, and granular performance metrics.

Onyx BLE Beacon Solution

The Onyx BLE Beacon Solution, Cisco WiFi Kenya features Aironet access point is missing : built-in Bluetooth Low Energy (BLE). The Onyx BLE Beacons work smoothly with indoor location-based services. Used for indoor navigation, proximity marketing, and asset tracking, BLE is a tool that is becoming more and more useful with each passing day. With the Onyx BLE Beacons, customers can add BLE to their networks.

Specifications

Software Cisco Unified Wireless Network Software Release with AireOS wireless controllers :

8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points

Deployment modes Centralized local, Standalone, Sniffer, Cisco FlexConnect, Monitor, OfficeExtend, Mesh
Supported wireless LAN controllers
  • Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst  6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex  7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Catalyst 9800 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers,  Cisco Catalyst 3650/3850 Series Switches with integrated controller
  • Cisco Mobility Express
802.11n version 2.0 (and related) capabilities
  • 4×4 MIMO with four spatial streams
  • Maximal Ratio Combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 600 Mbps (40 MHz with 5 GHz)
  • Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 and 2 capabilities
  • 4×4 MIMO with four spatial streams, single-user MIMO
  • 4×4 MIMO with three spatial streams, multiuser MIMO
  • MRC
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)
  • Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
  • Rogue device detection
Data rates supported 802.11a : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz :
MCS Index GI = 800 ns GI = 800 ns GI = 400 ns GI = 400 ns
  20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135



Feature Specifications
Data rates supported  MCS Index GI = 800 ns GI = 800 ns GI = 400 ns GI = 400 ns
  20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
16 19.5 40.5 21.7 45
17 39 81 43.3 90
18 58.5 121.5 65 135
19 78 162 86.7 180
20 117 243 130 270
21 156 324 173.3 360
22 175.5 364.5 195 405
23 195 405 216.7 450
24 26 54 28.9 60
25 52 108 57.8 120
26 78 162 86.7 180
27 104 216 115.6 240
28 156 324 173.3 360
29 208 432 231.1 480
30 234 486 260 540
31 260 540 288.9 600
802.11ac data rates (5 GHz) :
MCS
Index
Spatial Streams GI = 800 ns GI = 400 ns
    20-MHz
Rate
(Mbps)
40-MHz
Rate
(Mbps)
80-MHz
Rate
(Mbps)
20-MHz
Rate
(Mbps)
40-MHz
Rate
(Mbps)
80-MHz
Rate
(Mbps)
0 1 6.5 13.5 29.3 7.2 15 32.5
1 1 13 27 58.5 14.4 30 65
2 1 19.5 40.5 87.8 21.7 45 97.5
3 1 26 54 117 28.9 60 130
4 1 39 81 175.5 43.3 90 195
5 1 52 108 234 57.8 120 260
6 1 58.5 121.5 263.3 65 135 292.5
7 1 65 135 292.5 72.2 150 325
8 1 78 162 351 86.7 180 390



Feature Specifications
  MCS

index

Spatial streams GI = 800 ns GI = 400 ns
    20-MHz
rate
(Mbps)
40-MHz
rate
(Mbps)
80-MHz
rate
(Mbps)
20-MHz
rate
(Mbps)
40-MHz
rate
(Mbps)
80-MHz
rate
(Mbps)
9 1 180 390 200 433.3
0 2 13 27 58.5 14.4 30 65
1 2 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
3 2 52 108 234 57.8 120 260
4 2 78 162 351 86.7 180 390
5 2 104 216 468 115.6 240 520
6 2 117 243 526.5 130 270 585
7 2 130 270 585 144.4 300 650
8 2 156 324 702 173.3 360 780
9 2 360 780 400 866.7
0 3 19.5 40.5 87.8 21.7 45 97.5
1 3 39 81 175.5 43.3 90 195
2 3 58.5 121.5 263.3 65 135 292.5
3 3 78 162 351 86.7 180 390
4 3 117 243 526.5 130 270 585
5 3 156 324 702 173.3 360 780
6 3 175.5 364.5 195 405
7 3 195 405 877.5 216.7 450 975
8 3 234 486 1053 260 540 1170
9 3 260 540 1170 288.9 600 1300
0 4 26 54 117 28.9 60 130
1 4 52 108 234 57.8 120 260
2 4 78 162 351 86.7 180 390
3 4 104 216 468 115.6 240 520
4 4 156 324 702 173.3 360 780
5 4 208 432 936 231.1 480 1040
6 4 234 486 1053 260 540 1170
7 4 260 540 1170 288.9 600 1300
8 4 312 648 1404 346.7 720 1560
9 4 720 1560 800 1733.3
Maximum number of non-overlapping channels A (A regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

B (B regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.720 GHz; 12 channels
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

E (E regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)

F (F regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.250 to 5.350 GHz; 4 channels
  • 5.725 to 5.825 GHz; 4 channels

H (H regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.150 to 5.350 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels

N (N regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.660 to 5,805 GHz; 7 channels

S (S regulatory domain) :

  • 2.412 to 2.472 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
  • 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain) :

  • 2.412 to 2.462 GHz; 3 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels
    (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Maximum number of non-overlapping channels 2.4 GHz

  • 802.11b/g :
    • 20 MHz : 3
  • 802.11n :
    • 20 MHz : 3
5 GHz

  • 802.11a :
    • 20 MHz : 25
  • 802.11n :
    • 20 MHz : 25
    • 40 MHz : 12
  • 802.11ac :
    • 20 MHz : 21
    • 40 MHz : 12
    • 80 MHz : 6
Receive sensitivity 802.11b (CCK)

  • -101 dBm @ 1 Mbps
  • -98 dBm @ 2 Mbps
  • -92 dBm @ 5.5 Mbps
  • -89 dBm @ 11 Mbps
802.11g (non HT20)

  • -96 dBm @ 6 Mbps
  • -95 dBm @ 9 Mbps
  • -94 dBm @ 12 Mbps
  • -92 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -81 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
802.11a (non HT20)

  • -96 dBm @ 6 Mbps
  • -95 dBm @ 9 Mbps
  • -94 dBm @ 12 Mbps
  • -92 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -80 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
2.4 GHz

802.11n (HT20)

  • -96 dBm @ MCS0
  • -93 dBm @ MCS1
  • -90 dBm @ MCS2
  • -87 dBm @ MCS3
  • -84 dBm @ MCS4
  • -79 dBm @ MCS5
  • -78 dBm @ MCS6
  • -76 dBm @ MCS7
  • -93 dBm @ MCS8
  • -90 dBm @ MCS9
  • -87 dBm @ MCS10
  • -84 dBm @ MCS11
  • -81 dBm @ MCS12
  • -76 dBm @ MCS13
  • -75 dBm @ MCS14
  • -73 dBm @ MCS15
  • -91 dBm @ MCS16
  • -88 dBm @ MCS17
  • -85 dBm @ MCS18
  • -82 dBm @ MCS19
  • -79 dBm @ MCS20
  • -74 dBm @ MCS21
  • -73 dBm @ MCS22
  • -71 dBm @ MCS23
5 GHz

802.11n (HT20)

  • -96 dBm @ MCS0
  • -92 dBm @ MCS1
  • -90 dBm @ MCS2
  • -86 dBm @ MCS3
  • -83 dBm @ MCS4
  • -79 dBm @ MCS5
  • -77 dBm @ MCS6
  • -76 dBm @ MCS7
  • -93 dBm @ MCS8
  • -89 dBm @ MCS9
  • -87 dBm @ MCS10
  • -83 dBm @ MCS11
  • -80 dBm @ MCS12
  • -76 dBm @ MCS13
  • -74 dBm @ MCS14
  • -73 dBm @ MCS15
  • -91 dBm @ MCS16
  • -87 dBm @ MCS17
  • -85 dBm @ MCS18
  • -81 dBm @ MCS19
  • -78 dBm @ MCS20
  • -74 dBm @ MCS21
  • -72 dBm @ MCS22
  • -71 dBm @ MCS23
  • -89 dBm @ MCS24
  • -85 dBm @ MCS25
  • -83 dBm @ MCS26
  • -79 dBm @ MCS27
  • -76 dBm @ MCS28
  • -72 dBm @ MCS29
  • -70 dBm @ MCS30
  • -69 dBm @ MCS31
5 GHz

802.11n (HT40)

  • -93 dBm @ MCS0
  • -90 dBm @ MCS1
  • -87 dBm @ MCS2
  • -84 dBm @ MCS3
  • -80 dBm @ MCS4
  • -76 dBm @ MCS5
  • -75 dBm @ MCS6
  • -73 dBm @ MCS7
  • -90 dBm @ MCS8
  • -87 dBm @ MCS9
  • -84 dBm @ MCS10
  • -81 dBm @ MCS11
  • -77 dBm @ MCS12
  • -73 dBm @ MCS13
  • -72 dBm @ MCS14
  • -70 dBm @ MCS15
  • -88 dBm @ MCS16
  • -85 dBm @ MCS17
  • -82 dBm @ MCS18
  • -79 dBm @ MCS19
  • -75 dBm @ MCS20
  • -71 dBm @ MCS21
  • -70 dBm @ MCS22
  • -68 dBm @ MCS23
  • -86 dBm @ MCS24
  • -83 dBm @ MCS25
  • -80 dBm @ MCS26
  • -77 dBm @ MCS27
  • -73 dBm @ MCS28
  • -69 dBm @ MCS29
  • -68 dBm @ MCS30
  • -66 dBm @ MCS31
802.11ac receive sensitivity
802.11ac (non HT80)

  • -89 dBm @ 6 Mbps
  • -73 dBm @ 54 Mbps
MCS index Spatial streams
    VHT20 VHT40 VHT80
0 1 -96 dBm -93 dBm -89 dBm
7 1 -76 dBm -73 dBm -70 dBm
8 1 -71 dBm -69 dBm -66 dBm
9 1 NA -67 dBm -64 dBm
0 2 -93 dBm -90 dBm -86 dBm
7 2 -73 dBm -70 dBm -67 dBm
8 2 -68 dBm -66 dBm -63 dBm
9 2 NA -64 dBm -61 dBm
0 3 -91 dBm -88 dBm -84 dBm
7 3 -71 dBm -68 dBm -65 dBm
8 3 -66 dBm -64 dBm -61 dBm
9 3 -64 dBm -62 dBm -59 dBm
MCS index Spatial streams
    VHT20 VHT40 VHT80
0 4 -89 dBm -86 dBm -82 dBm
7 4 -69 dBm -66 dBm -63 dBm
8 4 -64 dBm -62 dBm -59 dBm
9 4 NA -60 dBm -57 dBm
Maximum transmit power 2.4 GHz

  • 802.11b
    • 22 dBm, 3 antennas
  • 802.11g
    • 22 dBm, 3 antennas
  • 802.11n (HT20)
    • 22 dBm, 3 antennas
5 GHz

  • 802.11a
    • 23 dBm, 4 antennas
  • 802.11n (HT20)
    • 23 dBm, 4 antennas
  • 802.11n (HT40)
    • 23 dBm, 4 antennas
  • 802.11ac
    • non-HT80 : 23 dBm, 4 antennas
    • VHT20 : 23 dBm, 4 antennas
    • VHT40 : 23 dBm, 4 antennas
    • VHT80 : 23 dBm, 4 antennas
Integrated antenna
  • 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
  • 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
External antenna (sold separately)
  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

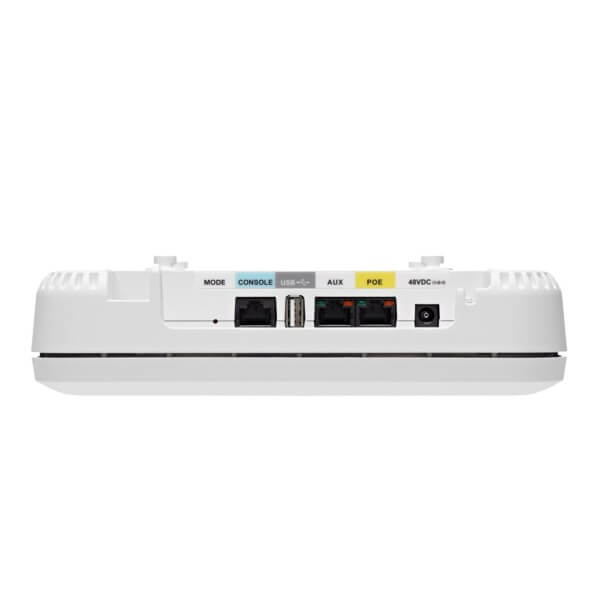

Interfaces
  • 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
  • 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)
  • Management console port (RJ-45)
  • USB 2.0 (enabled via future software)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions

(W x L x H)

Access point (without mounting bracket) : 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight 3.12 lb (1.41 kg)
Environmental Cisco Aironet 1850i

  • Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
  • Non-operating (storage) altitude test : 25ËšC, 15,000 ft.
  • Operating temperature : 32° to 104°F (0° to 50°C)
  • Operating humidity : 10% to 90% (noncondensing)
  • Operating altitude test : 40ËšC, 9843 ft.

Cisco Aironet 1850e

  • Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
  • Non-operating (storage) altitude test : 25ËšC, 15,000 ft.
  • Operating temperature : -4° to 122°F (-20° to 50°C)
  • Operating humidity : 10% to 90% (noncondensing)
  • Operating altitude test : 40ËšC, 9843 ft.
System memory
  • 1 GB DRAM
  • 256 MB flash
Input power requirements
  • AP1850 : 44 to 57 VDC
  • Power supply and power injector : 100 to 240 VAC; 50 to 60 Hz
Power draw 20.9W

Note : When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options
  • 802.3at
  • Enhanced PoE
  • Cisco power injector, AIR-PWRINJ4=
  • Cisco local power supply, AIR-PWR-C=
  • Cisco power injector, AIR-PWRINJ5= ( Note : this injector supports 802.3af only)



Yealink CP960 Conference Phone Kenya
