The Cisco Aironet1562D Kenya is equipped with IEEE’s 802.11ac Wave 2 support, providing a data rate of up to 450 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1.3 Gbps.

Description

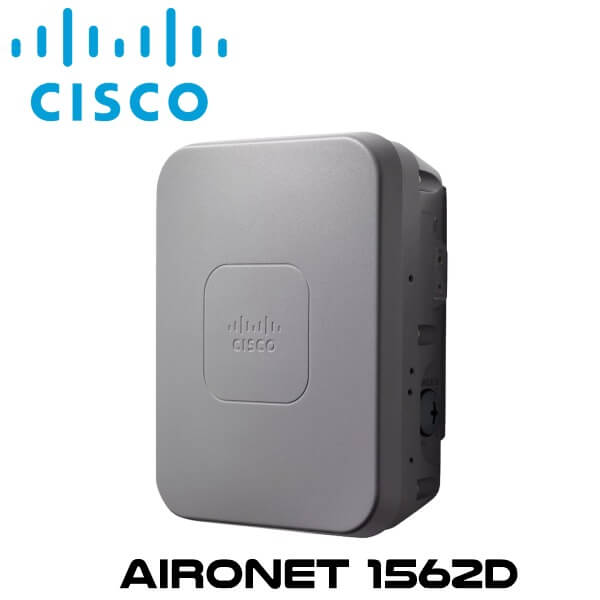

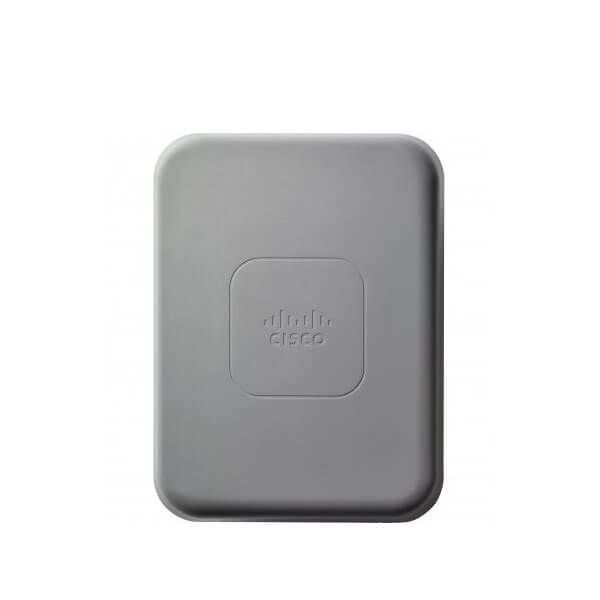

The Cisco Aironet1562D Access Point Kenya

Cisco Aironet1562D Kenya is equipped with IEEE’s 802.11ac Wave 2 support, providing a data rate of up to 450 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1.3 Gbps. Ideal for rugged outdoor environments, the Cisco Aironet1562D Kenya Access Point delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience. Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco WiFi Kenya Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package.

The Cisco Aironet1562D Kenya offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Cisco Aironet1562D is built on the strong base of Cisco® wireless innovations including: Cisco CleanAir® technology for spectrum intelligence; Cisco ClientLink technology for beamforming and Radio Resource Management (RRM) for dynamic transmitter channel and power control

Features

Extends your Wave 2 network

Business doesn’t end when you leave your office. With Cisco Aironet1562D Kenya you stay connected everywhere and improve the performance of many client devices.

Multiuser MIMO (MU-MIMO)

Cisco Aironet1562D Kenya Improves performance for multiple client devices. The 802.11ac Wave 2 access points use MU-MIMO technology, which allows different data streams to all flow at once from the access point to multiple 802.11ac Wave 2-supported devices. Now, multiple 802.11ac Wave 2 devices can connect at the same time, getting the information they need quicker.

Flexible deployment modes

Allows for deployment of the Cisco Aironet1562D Kenya in a variety of ways including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure

Small Form-Factor Pluggable (SFP) port

This Cisco WiFi Kenya supports optical fiber-based network connectivity for remote locations

Scales more and performs better

The Aironet 1560 Series access points double the scale of 5-GHz mobile devices and raise the performance of high-density environments.

4G LTE Coexistence

The Cisco Aironet1562D Kenya includes robust filtering around the 2.4 GHz unlicensed band to block out nearby licensed 4G LTE cellular signals.

Cisco Flexible Antenna Port technology

uses software configurable for either single- or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimize radio coverage.

Cisco Mobility Express

Cisco WiFi Kenya access point solutions is designed to bring enterprise-class wireless access to small and medium-sized networks. Easy to set up with low maintenance, Mobility Express includes advanced features from Cisco and does not require a physical controller appliance.

Improves efficiency with HDX

Cisco High Density Experience (HDX) comes standard. HDX gives the Cisco Aironet1562D Kenya top-of-the-line network efficiency for a large number of wireless clients. It is built for best-in-class RF architecture and targets high-density networks. HDX uses customized chipsets to target the needs of high-density networks. It is built with best-in-class RF architecture and gives a better user experience for high-performance applications.

Specifications

802.11ac Wave 1 and 2 capabilities
  • 1562I : 3 x 3 MIMO with three spatial streams
  • 1562E/D 2 x 2 MIMO with two spatial streams
  • Multi- and single-user MIMO
  • Maximal Ratio Combining (MRC)
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
  • Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic-Shift-Diversity (CSD) support
802.11n
(and related) capabilities
  • 1562I : 3 x 3 MIMO with three spatial streams
  • 1562E/D : 2 x 2 MIMO with two spatial streams
  • MRC
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps
  • Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Data rates supported
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11b/g : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 and 5 GHz:
MCS Index GI4 = 800 ns GI = 400 ns
20-MHz Rates (Mbps) 40-MHz Rates (Mbps) 20-MHz Rates (Mbps) 40-MHz Rates (Mbps)
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135
7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
16 19.5 40.5 21.7 45
17 39 81 43.3 90
18 58.5 121.5 65 135
19 78 162 86.7 180
20 117 243 130 270
21 156 324 173.3 360
22 175.5 364.5 195 405
23 195 405 216.7 450
802.11ac Data Rates (5 GHz)
Spatial Streams MCS GI = 800 ns GI = 400 ns
20 MHz 40 MHz 80 MHz 20 MHz 40 MHz 80 MHz
1 0 6.5 13.5 29.3 7.2 15 32.5
1 1 13 27 58.5 14.4 30 65
1 2 19.5 40.5 87.8 21.7 45 97.5
1 3 26 54 117 28.9 60 130
1 4 39 81 175.5 43.3 90 195
1 5 52 108 234 57.8 120 260
1 6 58.5 121.5 263.3 65 135 292.5
1 7 65 135 292.5 72.2 150 325
1 8 78 162 351 86.7 180 390
1 9 – 180 390 – 200 433.3
2 0 13 27 58.5 14.4 30 65
2 1 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
2 3 52 108 234 57.8 120 260
2 4 78 162 351 86.7 180 390
2 5 104 216 468 115.6 240 520
2 6 117 243 526.5 130 270 585
2 7 130 270 585 144.4 300 650
2 8 156 324 702 173.3 360 780
2 9 – 360 780 – 400 866.7
3 0 19.5 40.5 87.8 21.7 45 97.5
3 1 39 81 175.5 43.3 90 195
3 2 58.5 121.5 263.3 65 135 292.5
3 3 78 162 351 86.7 180 390
3 4 117 243 526.5 130 270 585
3 5 156 324 702 173.3 360 780
3 6 175.5 364.5 – 195 405 –
3 7 195 405 877.5 216.7 450 975
3 8 234 486 1053 260 540 1170
3 9 260 540 1170 288.9 600 1300
Frequency band and 20- MHz operating channels (regulatory domains)
  • A :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.280 to 5.320 GHz, 3 channels
    • 5.500 to 5.580 GHz, 5 channels
    • 5.660 to 5.700 GHz, 3 channels
    • 5.745 to 5.825 GHz, 5 channels
  • B :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.180 to 5.240 GHz, 4 channels
    • 5.260 to 5.320 GHz, 4 channels
    • 5.500 to 5.720 GHz, 12 channels
    • 5.745 to 5.825 GHz, 5 channels
  • C:
    • 2.412 to 2.472 GHz, 13 channels
    • 5.745 to 5.825 GHz, 5 channels
  • D :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.745 to 5.865 GHz, 7 channels
  • E :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.500 to 5.580 GHz, 5 channels
    • 5.660 to 5.700 GHz, 3 channels
  • F :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.745 to 5.805 GHz, 4 channels
  • G :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.745 to 5.825 GHz, 5 channels
  • H :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.745 to 5.825 GHz, 5 channels
  • I :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.180 to 5.320 GHz, 8 channels (Supported countries – *Egypt)
  • K :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.280 to 5.320 GHz, 3 channels
    • 5.500 to 5.620 GHz, 7 channels
    • 5.745 to 5.805 GHz, 4 channels
  • L :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.500 to 5.620 GHz, 7 channels
    • 5.745 to 5.865 GHz, 7 channels
  • M :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.500 to 5.580 GHz, 5 channels
    • 5.660 to 5.700 GHz, 3 channels
    • 5.745 to 5.805 GHz, 4 channels
  • N :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.745 to 5.825 GHz, 5 channels
  • Q :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.500 to 5.700 GHz, 11 channels
  • R :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.260 to 5.320 GHz, 4 channels
    • 5.660 to 5.700 GHz, 3 channels
    • 5.745 to 5.825 GHz, 5 channels
  • S :
    • 2.412 to 2.472 GHz, 13 channels
    • 5.500 to 5.700 GHz, 11 channels
    • 5.745 to 5.825 GHz, 5 channels
  • T :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.500 to 5.580 GHz, 5 channels
    • 5.660 to 5.700 GHz, 3 channels
    • 5.745 to 5.825 GHz, 5 channels
  • Z :
    • 2.412 to 2.462 GHz, 11 channels
    • 5.500 to 5.580 GHz, 5 channels
    • 5.660 to 5.700 GHz, 3 channels
    • 5.745 to 5.825 GHz, 5 channels
Maximum number of nonoverlapping channels 2.4 GHz

  • 802.11b/g :
    • 20 MHz : 3
  • 802.11n :
    • 20 MHz : 3
    • 40 MHz : 1 (hardware capable)
5 GHz

  • 802.11a :
    • 20 MHz : 27
  • 802.11n :
    • 20 MHz : 27
    • 40 MHz : 13
  • 802.11ac :
    • 20 MHz : 27
    • 40 MHz : 13
    • 80 MHz : 6
Receive Sensitivity
2.4 GHz Radio 5 GHz Radio
Spatial Streams 1562I 1562D/E 1562I 1562D/E
802.11/11b
1 Mbps 1 -100 -98 NA NA
11 Mbps 1 -88 -87 NA NA
802.11a/g
6 Mbps 1 -92 -90 -94 -93
24 Mbps 1 -86 -83 -89 -88
54 Mbps 1 -76 -74 -80 -79
802.11n HT20
MCS0 1 -90 -89 -91 -90
MCS4 1 -84 -82 -88 -86
MCS7 1 -77 -75 -80 -78
MCS8 2 -89 -88 -90 -89
MCS12 2 -82 -80 -85 -83
MCS15 2 -75 -72 -78 -76
MCS16 3 -89 -90
MCS20 3 -81 -84
MCS23 3 -73 -76
802.11n HT40
MCS0 1 -88 -86 -90 -90
MCS4 1 -82 -80 -85 -83
MCS7 1 -75 -74 -78 -76
MCS8 2 -87 -86 -90 -90
MCS12 2 -80 -78 -82 -81
MCS15 2 -72 -70 -75 -73
MCS16 3 -87 -90
MCS20 3 -78 -81
MCS23 3 -71 -74
802.11ac VHT20
MCS0 1 -95 -94
MCS4 1 -88 -86
MCS7 1 -81 -79
MCS8 1 -77 -75
MCS0 2 -94 -93
MCS4 2 -86 -84
MCS7 2 -78 -76
MCS8 2 -74 -72
MCS0 3 -93
MCS4 3 -85
MCS7 3 -78
MCS8 3 -72
MCS9 3 -69
802.11ac VHT40
MCS0 1 -91 -90
MCS4 1 -85 -84
MCS7 1 -79 -77
MCS8 1 -75 -73
MCS9 1 -73 -71
MCS0 2 -91 -90
MCS4 2 -83 -82
MCS7 2 -76 -74
MCS8 2 -73 -70
MCS9 2 -71 -68
MCS0 3 -91
MCS4 3 -82
MCS7 3 -74
MCS8 3 -69
MCS9 3 -68
802.11ac VHT80
MCS0 1 -88 -88
MCS4 1 -83 -81
MCS7 1 -75 -73
MCS8 1 -71 -69
MCS9 1 -69 -67
MCS0 2 -88 -88
MCS4 2 -80 -78
MCS7 2 -73 -71
MCS8 2 -69 -67
MCS9 2 -67 -65
MCS0 3 -88
MCS4 3 -78
MCS7 3 -71
MCS8 3 -67
MCS9 3 -65
Maximum conducted transmit power 1562I

  • 2.4 GHz : 29 dBm with 3 antennas
  • 5 GHz : 29 dBm with 3 antennas
1562D

  • 2.4 GHz : 27 dBm with 2 antennas
  • 5 GHz : 27 dBm with 2 antennas
1562E

  • 2.4 GHz : 27 dBm with 2 antennas
  • 5 GHz : 27 dBm with 2 antennas
Interfaces
  • WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
  • SFP port (fiber or electrical)
  • Management console port (RJ-45)
  • Multicolor LED
  • DC power input
  • Reset button
Uplink options Ethernet, SFP, and wireless mesh
Dimensions
(L x W x D)
  • 1562I : 9.0 x 6.8 x 3.9 in.                   (22.9 x 17.1 x 9.8 cm)
  • 1562D : 9.0 x 6.8 x 4.3 in.                 (22.9 x 17.1 x 10.9 cm)
  • 1562E : 9.0 x 6.8 x 3.9 in.                 (22.9 x 17.1 x 9.8 cm)
Weight
  • 1562I : 5.6 lb (2.5 kg)
  • 1562D : 5.7 lb (2.6 kg)
  • 1562E : 5.6 lb (2.5 kg)
Environmental
  • Operating temperature :
    • –40 to 65°C (–40 to 149°F) ambient air with no solar loading
    • –40 to 55°C (–40 to 131°F) ambient air with solar loading
  • Storage temperature : –40 to 85°C (–40 to 185°F)
  • Humidity : 5 – 95%, non-condensing
  • Wind resistance :
    • Up to 100-mph sustained winds
    • Up to 165-mph wind gusts
Environmental ratings
  • IEC 60529 IP67
  • NEMA Type 4X
  • Icing protection           NEMA 250-2008
  • Corrosion                    NEMA 250-2008 (600 hours)
  • Solar radiation             EN 60068-2-5 (1200 W/ m2)
  • Vibration MIL-STD-810
Antennas Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz)

Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz)

Dual Band

  • AIR-ANT2568VG-N             6 dBi (2.4 GHz),        8 dBi (5 GHz                    Omni
  • AIR-ANT2547VG-N             4 dBi (2.4 GHz),        7 dBi (5 GHz                    Omni
  • AIR-ANT2547V-N                4 dBi (2.4 GHz),        7 dBi (5 GHz                    Omni
  • AIR-ANT2588P3M-N=         8 dBi (2.4 GHz),        8 dBi (5 GHz)

Directional

AIR-ANT2513P4M-N=         13 dBi (2.4 GHz),      13 dBi (5 GHz)                                           Directional

Single Band

2.4 GHz

  •  AIR-ANT2450V-N=              5 dBi (2.4 GHz),        Omni
  •  AIR-ANT2450VG-N=           5 dBi (2.4 GHz),        Omni, vertical polarized
  •  AIR-ANT2450HG-N=           5 dBi (2.4 GHz),        Omni, horizontal polarized
  •  AIR-ANT2480V-N=              8 dBi (2.4 GHz),        Omni
  •  AIR-ANT2413P2M-N=         13 dBi (2.4 GHz),      Directional, dual polarized

5 GHz

  •  AIR-ANT5150VG-N=            5 dBi (5GHz),            Omni, vertical polarized
  •  AIR-ANT5150HG-N=           5 dBi (5GHz),            Omni, horizontal polarized
  •  AIR-ANT5180V-N=              8 dBi (5GHz),            Omni
  •  AIR-ANT5114P2M-N=         14 dBi (5GHz),          Directional, dual polarized
Powering options
  • AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
  • 44–57 VDC input
  • Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at
  • Cisco power injectors:
  • AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)
  • AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)
  • AIR-PWRINJ6= (indoor, 802.3at)

Note : If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.

Power consumption
  • 1562I            32 W (3×3:3, full power)
  • 1562D/E       25 W
Compliance Safety

  • UL60950, 2 nd Edition
  • CAN/CSA-C22.2 No. 60950, 2 nd Edition
  • IEC 60950, 2 nd Edition
  • EN 60950, 2 nd Edition
  • Immunity
  • <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform
  • ANSI/IEEE C62.41
  • EN61000-4-5 Lev el 4 AC Surge Immunity
  • EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity
  • EN61000-4-3 Lev el 4 EMC Field Immunity
  • EN61000-4-2 Lev el 2 ESD Immunity
  • EN60950 Overvoltage Category IV

Radio Approvals

  • FCC Part 15.247, 15.407
  • FCC Bulletin OET-65C
  • RSS-247
  • RSS-102
  • AS/NZS 4268.2003
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EN 300 328
  • EN 301 893
  • EMI and Susceptibility
  • FCC part 15.107, 15.109
  • ICES-003
  • EN 301 489-1, -17

Security

  • Wireless bridging/mesh (future availability)
  • X.509 digital certificates
  • MAC address authentication
  • Advanced Encryption Standard (AES)

Wireless Access

  • 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
  • 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module – (EAP-SIM), and Cisco LEAP
  • VPN pass-through
  • IP Security (IPsec)
  • Layer 2 Tunneling Protocol (L2TP)
  • MAC address filtering



Yealink CP960 Conference Phone Kenya
