The Cisco Aironet1830 Kenya delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s new 802.11ac Wave 2 specification, and meets the growing requirements of wireless networks by delivering a better user experience.

Description

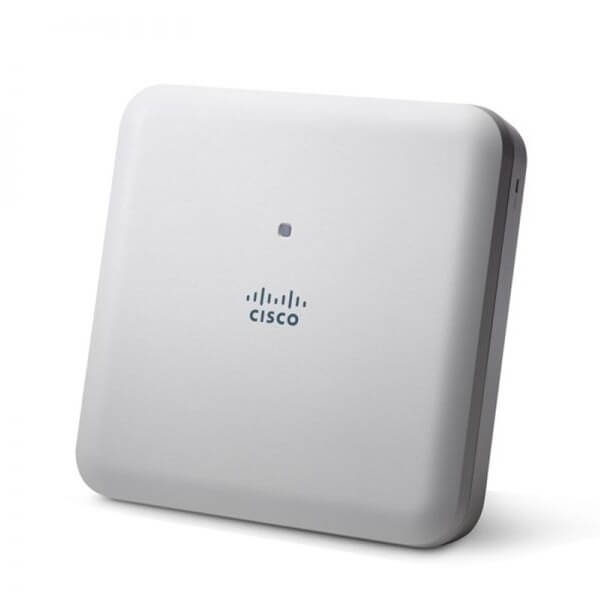

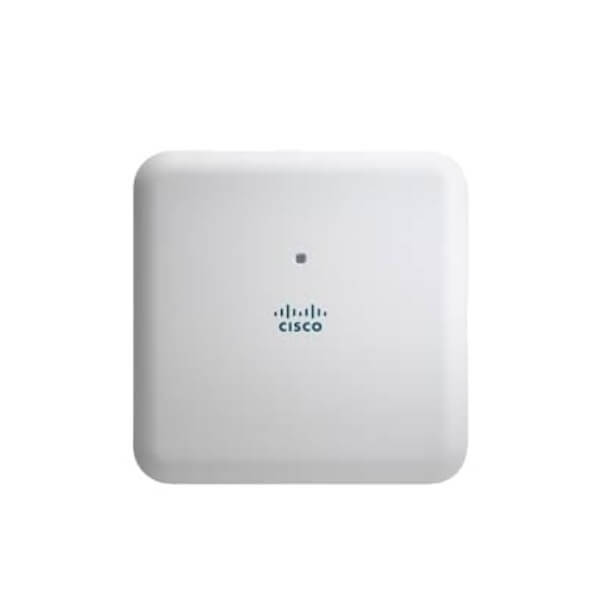

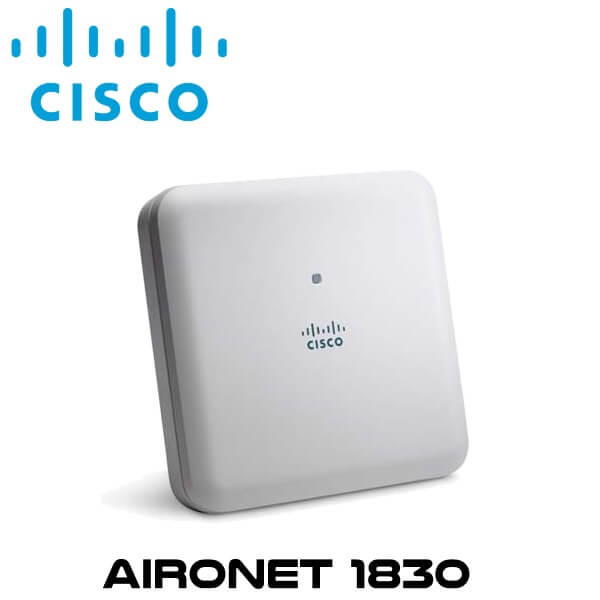

Cisco Aironet1830 Access Point Kenya

The Cisco Aironet1830 Kenya delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s new 802.11ac Wave 2 specification, and meets the growing requirements of wireless networks by delivering a better user experience. This Cisco WiFi Kenya extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

With 802.11ac Wave 2, Cisco Aironet1830 Kenya provides a data rate of up to 867 Mbps on the 5-GHz radio, exceeding the data rates offered by today’s high-end 802.11n access points. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation for enterprise and service provider networks to stay ahead of the performance and bandwidth expectations and needs of their wireless users.

Due to its convenience, Cisco WiFi Kenya is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely. The Cisco Aironet1830 Kenya delivers industry-leading performance for highly secure and reliable wireless connections and provides a robust mobility experience that includes

Features

Increased wireless performance

The 802.11ac Wave 2 with 3×3 multiple-input multiple-output (MIMO) technology with two spatial streams when operating in single-user or multiuser MIMO mode, allows Cisco Aironet1830 Kenya to provide 867-Mbps rates for more capacity and reliability than competing access points.

Multiuser MIMO

With Multiuser MIMO (MU-MIMO) Cisco Aironet1830 Kenya, allows transmission of data to multiple 802.11ac Wave 2 capable clients simultaneously to improve client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

Transmit beamforming technology

Cisco Aironet1830 Kenya boasts of transmit beamforming technology improves downlink performance to mobile devices, including one- and two-spatial-stream devices on 802.11ac, while improving battery life on mobile devices such as smartphones and tablets.

Cisco Mobility Express Solution

Cisco Aironet1830 Kenya packs flexible deployment mode through the Mobility Express Solution is ideal for small to medium-sized deployments that require multiple access points. Easy setup allows the 1830 Series to be deployed on networks without a physical controller.

Specifications

Software Cisco Unified Wireless Network Software Release with AireOS wireless controllers :

8.1.121.0 or later for the Cisco Aironet1830 Series Access Points

Deployment modes Centralized, standalone, sniffer, Cisco FlexConnect, monitor, OfficeExtend, mesh
Supported wireless LAN controllers
  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller
  • Cisco Mobility Express
802.11n version 2.0 (and related) capabilities
  • 3×3 MIMO with two spatial streams
  • Maximal ratio combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities
  • 3×3 MIMO with two spatial streams, single-user or multiuser MIMO
  • MRC
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz:
MCS Index GI= 800 ns GI = 800 ns GI = 400 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135
Data rates supported MCS Index GI = 800 ns GI = 800 ns GI = 400 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
802.11ac data rates (5 GHz):
MCS
Index
Spatial Streams GI = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps)
0 1 6.5 13.5 29.3 7.2 15 32.5
1 1 13 27 58.5 14.4 30 65
2 1 19.5 40.5 87.8 21.7 45 97.5
3 1 26 54 117 28.9 60 130
4 1 39 81 175.5 43.3 90 195
5 1 52 108 234 57.8 120 260
6 1 58.5 121.5 263.3 65 135 292.5
7 1 65 135 292.5 72.2 150 325
8 1 78 162 351 86.7 180 390
MCS
Index
Spatial Streams GI = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps)
9 1 – 180 390 – 200 433.3
0 2 13 27 58.5 14.4 30 65
1 2 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
3 2 52 108 234 57.8 120 260
4 2 78 162 351 86.7 180 390
5 2 104 216 468 115.6 240 520
6 2 117 243 526.5 130 270 585
7 2 130 270 585 144.4 300 650
8 2 156 324 702 173.3 360 780
9 2 – 360 780 – 400 866.7
Maximum number of nonoverlapping channels A (A regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.720 GHz; 12 channels
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

E (E regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.805 GHz; 4 channels

H (H regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.150 to 5.350 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels

N (N regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.660 to 5,805 GHz; 7 channels

S (S regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz;, 11 channels
  • 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Maximum number of nonoverlapping channels 2.4 GHz

  • 802.11b/g :
    • 20 MHz : 3
  • 802.11n :
    • 20 MHz : 3
5 GHz

  • 802.11a:
    • 20 MHz: 25
  • 802.11n:
    • 20 MHz: 25
    • 40 MHz: 12
  • 802.11ac:
    • 20 MHz: 21
    • 40 MHz: 12
    • 80 MHz: 6
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive sensitivity 802.11b (CCK)

  • -101 dBm @ 1 Mbps
  • -98 dBm @ 2 Mbps
  • -92 dBm @ 5.5 Mbps
  • -89 dBm @ 11 Mbps
802.11g (non HT20)

  • -96 dBm @ 6 Mbps
  • -95 dBm @ 9 Mbps
  • -94 dBm @ 12 Mbps
  • -92 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -81 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
802.11a (non HT20)

  • -96 dBm @ 6 Mbps
  • -95 dBm @ 9 Mbps
  • -94 dBm @ 12 Mbps
  • -92 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -80 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
Receive sensitivity 2.4 GHz

802.11n (HT20)

  • -96 dBm @ MCS0
  • -93 dBm @ MCS1
  • -90 dBm @ MCS2
  • -87 dBm @ MCS3
  • -84 dBm @ MCS4
  • -79 dBm @ MCS5
  • -78 dBm @ MCS6
  • -76 dBm @ MCS7
  • -93 dBm @ MCS8
  • -90 dBm @ MCS9
  • -87 dBm @ MCS10
  • -84 dBm @ MCS11
  • -81 dBm @ MCS12
  • -76 dBm @ MCS13
  • -75 dBm @ MCS14
  • -73 dBm @ MCS15
  5 GHz

802.11n (HT20)

  • -96 dBm @ MCS0
  • -92 dBm @ MCS1
  • -90 dBm @ MCS2
  • -86 dBm @ MCS3
  • -83 dBm @ MCS4
  • -79 dBm @ MCS5
  • -77 dBm @ MCS6
  • -76 dBm @ MCS7
  • -93 dBm @ MCS8
  • -89 dBm @ MCS9
  • -87 dBm @ MCS10
  • -83 dBm @ MCS11
  • -80 dBm @ MCS12
  • -76 dBm @ MCS13
  • -74 dBm @ MCS14
  • -73 dBm @ MCS15
5 GHz

802.11n (HT40)

  • -93 dBm @ MCS0
  • -90 dBm @ MCS1
  • -87 dBm @ MCS2
  • -84 dBm @ MCS3
  • -80 dBm @ MCS4
  • -76 dBm @ MCS5
  • -75 dBm @ MCS6
  • -73 dBm @ MCS7
  • -90 dBm @ MCS8
  • -87 dBm @ MCS9
  • -84 dBm @ MCS10
  • -81 dBm @ MCS11
  • -77 dBm @ MCS12
  • -73 dBm @ MCS13
  • -72 dBm @ MCS14
  • -70 dBm @ MCS15
802.11ac Receive Sensitivity
802.11ac (non HT80)

  • -89 dBm @ 6 Mbps
  • -73 dBm @ 54 Mbps
MCS Index Spatial Streams
VHT20 VHT40 VHT80
0 1 -96 dBm -93 dBm -89 dBm
7 1 -76 dBm -73 dBm -70 dBm
8 1 -71 dBm -69 dBm -66 dBm
9 1 NA -67 dBm -64 dBm
0 2 -93 dBm -90 dBm -86 dBm
7 2 -73 dBm -70 dBm -67 dBm
8 2 -68 dBm -66 dBm -63 dBm
9 2 NA -64 dBm -61 dBm
Maximum transmit power 2.4 GHz

  • 802.11b
    • 22 dBm, 3 antennas
  • 802.11g
    • 22 dBm, 3 antennas
  • 802.11n (HT20)
    • 22 dBm, 3 antennas
5 GHz

  • 802.11a
    • 23 dBm, 3 antennas
  • 802.11n (HT20)
    • 23 dBm, 3 antennas
  • 802.11n (HT40)
    • 23 dBm, 3 antennas
  • 802.11ac
    • non-HT80: 23 dBm, 3 antennas
    • VHT20 23 dBm, 3 antennas
    • VHT40: 23 dBm, 3 antennas
    • VHT80: 23 dBm, 3 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Available transmit power settings 2.4 GHz

  • 22 dBm
  • 19 dBm
  • 16 dBm
  • 13 dBm
  • 10 dBm
  • 7 dBm
  • 4 dBm
  • 1 dBm
5 GHz

  • 23 dBm
  • 20 dBm
  • 17 dBm
  • 14 dBm
  • 11 dBm
  • 8 dBm
  • 5 dBm
  • 2 dBm
Integrated antenna
  • 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
  • 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces
  • 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
  • Management console port (RJ-45)
  • USB 2.0 (enabled via future software)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions

(W x L x H)

Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight 3.12 lb (1.41 kg)
Environmental
  • Cisco Aironet1830i
  • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25ËšC, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% (noncondensing)
  • Operating altitude test: 40ËšC, 9843 ft.
System memory
  • 1 GB DRAM
  • 256 MB flash
Input power requirements AP1830: 44 to 57 VDC

Power supply and power injector : 100 to 240 VAC; 50 to 60 Hz

Power draw 15.4W

Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options
  • 802.3af/802.3at
  • Enhanced PoE
  • Cisco local power supply, AIR-PWR-C=
  • Cisco power injector, AIR-PWRINJ5= (Note: This injector supports 802.3af only), AIR-PWRINJ6=

Note: If 802.3af PoE is the source of power, the USB port is disabled.

Warranty Limited lifetime hardware warranty
Compliance standards
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-210 (Canada)
    • EN 300.328, EN 301.893 (Europe)
    • ARIB-STD 66 (Japan)
    • ARIB-STD T71 (Japan)
    • EMI and susceptibility (Class B)
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • VCCI (Japan)
    • EN 301.489-1 and -17 (Europe)
  • IEEE standards:
    • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
    • IEEE 802.11ac Draft 5
  • Security:
    • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
    • 802.1X
    • Advanced Encryption Standard (AES)
    • Extensible Authentication Protocol (EAP) types:
    • EAP-Transport Layer Security (TLS)
    • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
    • EAP-Flexible Authentication via Secure Tunneling (FAST)
    • PEAP v1 or EAP-Generic Token Card (GTC)
    • EAP-Subscriber Identity Module (SIM)
  • Multimedia:
    • Wi-Fi Multimedia (WMM)
  • Other:
    • FCC Bulletin OET-65C
    • RSS-102
