Ruijie RGNBS5100-24GT4SFP Kenya



Ruijie RGNBS5100-24GT4SFP Kenya

Ruijie RGNBS5100-24GT4SFP Kenya is a 24-Port Gigabit L2+ Managed, featuring next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. The Switch provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks

Description

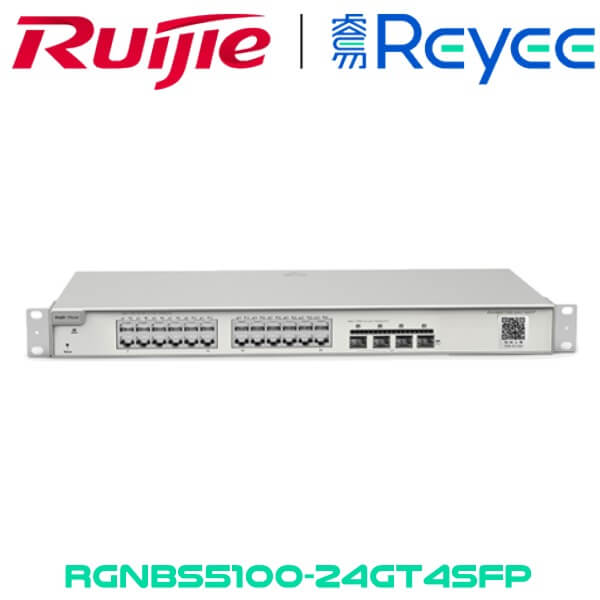

Ruijie Reyee RGNBS5100-24GT4SFP Network Switch Kenya

Ruijie RGNBS5100-24GT4SFP Kenya is a 24-Port Gigabit L2+ Managed, featuring next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. Ruijie RGNBS5100-24GT4SFP Network Switch provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks. Adopting an efficient hardware architecture design, this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience. RG-NBS5100 series provides Gigabit access and Gigabit uplink, while RG-NBS5200 series provides Gigabit access and 10G uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability.

Features

  • Switch 24 Ports 10/100/1000BASE-T + 4 ports 1G
  • 24 ports 10/100/1000BASE-T
  • 4 ports SFP BASE-X
  • Switching speed: 336Gbps
  • MAC: 16K, VLAN: 4094
  • Layer 2+ features: port mirroring, loop protection, cable detection
  • Security features: broadcast storm suppression, port speed limit, port isolation
  • Supports 16 Layer 3 combo ports
  • Dimensions: 440×207.5×43. 6mm
  • Operating temperature: 0°C~50°C
  • Easy to manage and configure via Ruijie cloud
  • Integrated Web management
  • AC power 100~240V, 50/60Hz
  • 1Q VLAN support, security between device groups

Layer 2+ 10G Switches, Easy Play

Ruijie RGNBS5100-24GT4SFP Kenya support Ruijie Cloud App management. Even for Layer 2+ and 10G network scenarios, Ruijie Cloud enables equipment and projects of different sizes to be managed on your mobile phone.

Outstanding Performance

The 6KV surge protection of the Ruijie RGNBS5100-24GT4SFP Kenya Series switch ports can reduce the core risk of physical malfunction for the switch by reducing the probability of being damaged by surges. The smart PoE feature of the PoE models provides safe power supply while offering mutual protection. The high-quality internal components provide powerful protection for customer’s network stability.

Specifications

Model RG-NBS5200-24GT4XS RG-NBS5200-48GT4XS RG-NBS5200-24SFP/8GT4XS RG-NBS5100-24GT4SFP RG-NBS5100-48GT4SFP
Fixed ports 24 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

24 SFP ports (SFP: 100/1000M ports)

8 combo 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

24 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

Switching capacity 128Gbps 216Gbps 128Gbps 56Gbps 104Gbps
Packet forwarding rate 96Mpps 132Mpps 96Mpps 42Mpps 78Mpps
MAC address Support static MAC address, MAC address filtering
MAC address table size 16K
Number of VLANs 4094
Layer 3 aggregation ports 16
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
IP routing Support static routing
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud platform or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×207.5×43.6mm 440×267.5×43.6mm 440 x 207.5 x 43.6mm 440×267.5×43.6mm
Temperature
  • Operating temperature : 0 ℃ ~ 50 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
