Ruijie RG-ES210GCLP Kenya



Ruijie RG-ES210GCLP Kenya

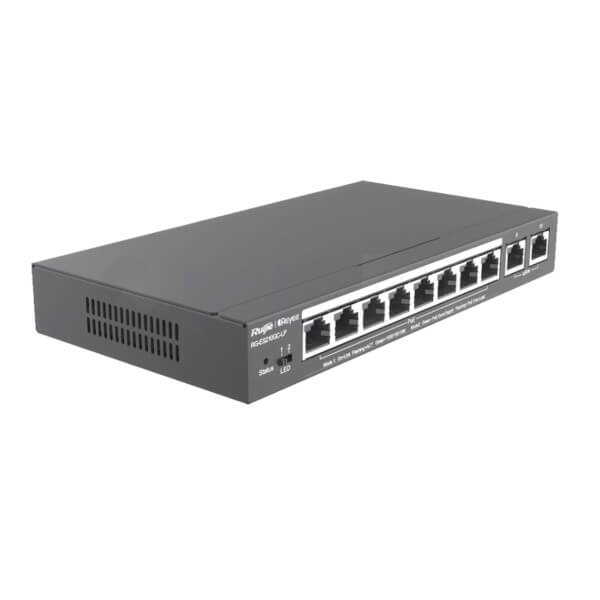

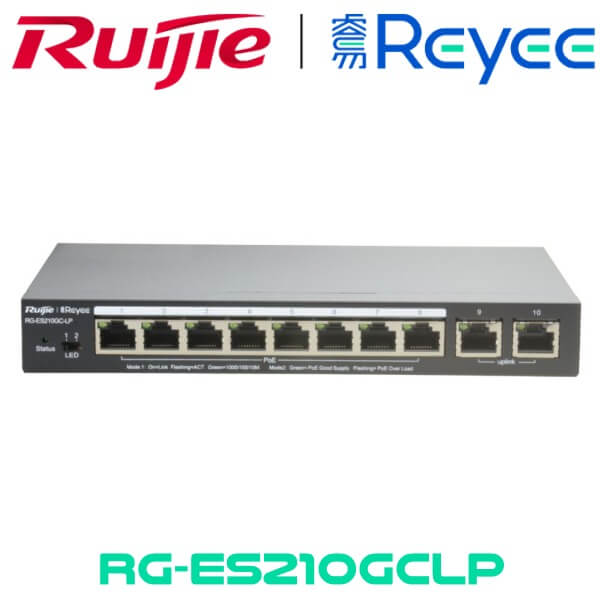

The Ruijie RG-ES210GCLP Kenya features Ruijie Reyee smart surveillance switch offering a variety of port options to meet the needs of video surveillance networks of different scales. The Switch boasts of Ruijie Cloud app and Ruijie Cloud platform remote management.

Description

Ruijie Reyee RG-ES210GCLP Network Switch Kenya

The Ruijie RG-ES210GCLP Kenya features Ruijie Reyee smart surveillance switch offering a variety of port options to meet the needs of video surveillance networks of different scales. The Switch boasts of Ruijie Cloud app and Ruijie Cloud platform remote management. In addition, this Ruijie Reyee smart surveillance switch provides simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.

Features

Zero configuration

Ruijie RG-ES210GCLP Kenya require zero configuration after plugged in. This Network Switch can be set up quickly after connecting the switch to the cameras and DVR correctly.

High compatibile network cable

The Ruijie RG-ES210GCLP Kenya not only support standard cat5/5e/6 network cables, but also support data transmission via network cables of non-standard materials (such as 0.38/0.40/0.45-diameter copper-clad steel/iron), facilitating the construction and cabling.

High surge protection for device stability

The RG-ES210GCLP Switch packs ports that offer surge protection of up to 6KV, reducing the probability of being damaged by the surge and improving the stability of the customer’s network.

Fast fault positioning

The Ruijie RG-ES210GCLP Network Switch Kenya support network topology display of the entire network and monitoring the network status in real time. When failure occurs for the network camera, the location and cause of failure can be displayed in a timely manner, and the notification can be sent via the mobile app.

On-demand VLAN configuration

In the network of villas/ stores/ offices, the network cameras and wireless APs may be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speed. The RG-ES210GCLP provides convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, improving the stability of the entire network.

Ruijie Cloud Application

The Ruijie RG-ES210GCLP Kenya support mobile app and Ruijie Cloud platform for remote management. Users can view the network status, modify the configuration, and troubleshoot at home. In addition, the ports can be restarted remotely.

Simple Remote management

The smart surveillance switches can obtain the IP address automatically from the gateway and connect to the external network without configuration. MANET for switches is also supported. Users can scan the QR code of any switch in the network using the mobile app to automatically add all switches in the network to the project. In addition, the smart surveillance switches support networking with Reyee Series EG / EAP. The switches can be automatically discovered by the Reyee Series EG / EAP and added to the corresponding project.

Specifications

Model RG-ES210GC-LP RG-ES218GC-P RG-ES226GC-P
Switching capacity 20Gbps 36Gbps 52Gbps
Switching Cache 1.5Mbit 4.1Mbit 4.1Mbit
Package forwarding rate 14.8Mpps 26.8Mpps 38.7Mpps
Ports
  • 8 10/100/1000 Base-T ports (PoE/PoE+),
  • 2 10/100/1000 Base-T uplink port
  • 16 10/100/1000 Base-T ports (PoE/PoE+),
  • 2 10/100/1000 Base-X SFP uplink port
  • 24 10/100/1000 Base-T ports (PoE/PoE+),
  • 2 10/100/1000 Base-X SFP uplink port
PoE Standard IEEE 802.3at / 802.af
PoE Power Budget 70W 240W 370W
Speed / Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address 4K 8K 8K
Maximum Number of VLANs 16
Allowed VLAN ID 1 ~ 4094
Port-based VLAN Support
Flow Control Support
Loop Protection Support
Unknown Unicast Suppression Support
Multicast / Broadcast Storm Suppression Support
Mirroring Many-to-One Mirroring
Port Isolation Support
Cable Testing Support
ICMP Ping Support
DNS DNS Client
Telnet Support
MACC Support
Port Surge Common mode : 4KV
Electrostatic Discharge
  • Air discharge : 6KV
  • Contact discharge : 4KV
Power Consumption ≤ 80W ≤ 280W ≤ 443W
Power supply External power adapter
100-240V
Built-in power supply
Dimensions

(W x D x H)

202 x 108 x 28 mm 300 x 230 x 43.6mm 440 x 289 x 43.6mm
Weight 1.3 kg (with package) 3.5 kg (with package) 4.2 kg (with package)
MTBF >200K
Operating temperature 0 to 40°C
Storage temperature -40~70ºC
Operating humidity 10% to 90% RH
Storage humidity 5% to 95% RH
Operating Altitude -500 ~ 5000 meters
FAN Fanless Supports adaptive speed adjustment. The fan stops running when the ambient temperature is lower than 25°Cand the PoE power is less than 120W.
Management Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance GB4943-2011, EN 62638-1
EMC GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
