Ruijie RGNBS3100-8GT2SFP Kenya



Ruijie RGNBS3100-8GT2SFP Kenya

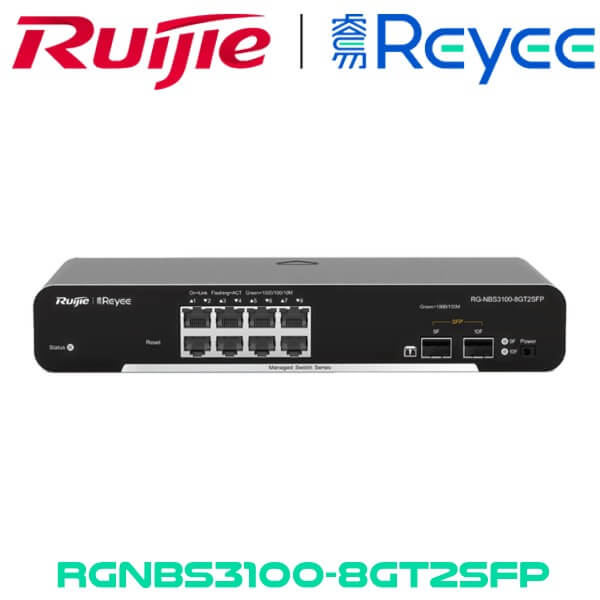

Ruijie RGNBS3100-8GT2SFP Kenya is a Management Switch Series that not only supports web interface management, but also supports Ruijie Cloud application and Ruijie Cloud platform remote management.

Description

Ruijie Reyee RGNBS3100-8GT2SFP Network Switch Kenya

Ruijie RGNBS3100-8GT2SFP Kenya is a Management Switch that not only supports web interface management, but also supports Ruijie Cloud application and Ruijie Cloud platform remote management. It includes 4 models of switches designed for SME Customers to meet their different network needs including basic VLAN division and advanced security features, like ACLs. Models with -P suffix support PoE, which can meet the PoE requirements of wireless APs, IP cameras and other devices in different scenarios. In an office network, to isolate network access between departments to avoid virus-infected PCs affecting the entire network, people often divide the internal network into VLANs by department, floor, etc. to isolate the broadcast domain and improve network stability.

Features

Flexible VLAN division

Ruijie Reyee RGNBS3100-8GT2SFP switch provides a convenient and flexible way to split VLANs, allowing you to assign ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for users.

Protection against surge for stability

The Ruijie RGNBS3100-8GT2SFP Kenya packs port’s 6KV surge protection reducing the chance of surge damage and improves customer network stability.

Self-organizing network

Ruijie RGNBS3100-8GT2SFP can get IP address automatically from gateway and connect to external network without configuration. It also supports self-organizing networking for switches. Users can scan the QR code of any Switch in the network using the Ruijie Cloud app to automatically add all the Switches in the network to the project.

Ruijie Cloud App / Ruijie Cloud Platform Remote Management

Ruijie RGNBS3100-8GT2SFP Kenya not only supports web interface management, but also supports Ruijie Cloud application and Ruijie Cloud platform remote management. Users can view network status, modify configuration, and troubleshoot at home.

Specifications

Model RG-NBS3100-8GT2SFP
Fixed ports
  • 8 10/100/1000Base-T ports
  • 2 SFP 1000Base-X ports
Switching capacity 192Gbps
Packet forwarding rate 15Mpps
MAC address
  • Support static MAC address
  • MAC address filtering
MAC address table size 8K CZK
Number of VLANs 4094
Link aggregation support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP support
IP routing N/A
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP DHCP snooping
EEE support
Physical specifications
Dimensions 260x120x43.6mm
PoE N/A
Temperature
  • Operating temperature : 0 ~ 50
  • Storage temperature : -40 ~ 70
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
