Ruijie RGIS2700-4GT4SFPP Kenya offers abundant routing, switching and security protocols and advanced features including vibration resistance, wide temperature range, dust proof, and lightning arrester to cope with harsh operating environments

Description

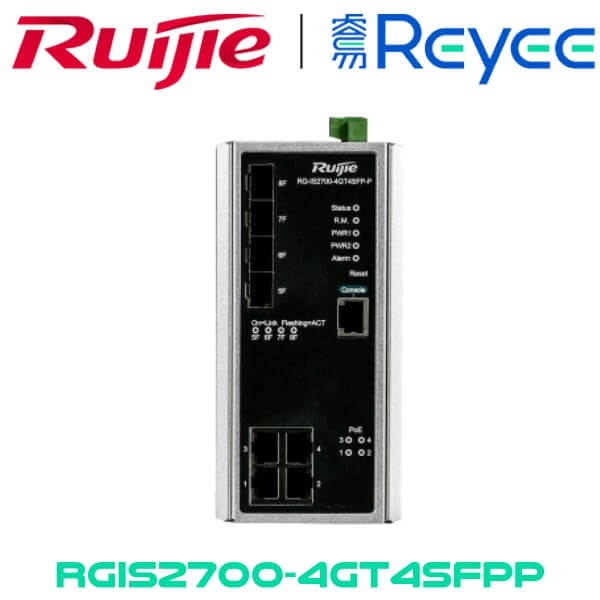

Ruijie RGIS2700-4GT4SFPP Industrial Ethernet Switch Kenya

Ruijie RGIS2700-4GT4SFPP Kenya offers abundant routing, switching and security protocols and advanced features including vibration resistance, wide temperature range, dust proof, and lightning arrester to cope with harsh operating environments. The RG-IS2700G Network Switch Series features an Industrial Ethernet Switch designed to power various industrial applications. Ethernet Ring Protection Switching (ERPS) is another highlight to improve network flexibility, resiliency and security. The Ruijie RGIS2700-4GT4SFPP Kenya provides customers with a robust, highly secure and easy-to-use switching infrastructure features.

Features

  • Advanced Hardware Architecture
  • Abundant Network and Security Features
  • Flexible Deployment and Management

Advanced Hardware Architecture

  • Advanced hardware design: The Ruijie RGIS2700-4GT4SFPP Kenya Switch Series embodies mainstream industrial chips, high-performance CPU, and industrial-grade power module in a durable aluminum case to meet the demanding requirements across industrial networks.
  • Robust design for industrial deployment: Support fanless cooling, -40 to 85ºC operating temperature range, IP40 protection rating, lightning protection≥6KV, power supply with anti-vibration feature, level 4 electromagnetic interference standard, shock and vibration resistance.

Abundant Network and Security Features

  • An extensive library of Layer 2 features: Support VLAN, ERPS, QoS, port security, broadcast storm suppression and offer Layer 3 features such as static routing.
  • Advanced security protection: Support binding of static and dynamic ports, port isolation, multiple kinds of hardware ACL control, bandwidth speed limit based on data traffic, user access control, etc. The RG-IS2700G Series supports effective protection against virus attacks, network traffic attacks and rogue network access.
  • High network stability: Network Foundation Protection Policy (NFPP) implements speed limit based on different packet categories (management, forwarding, protocol packets, etc.) and attack inspection. The Ruijie RGIS2700-4GT4SFPP Kenya fully protects the CPU and bandwidth resources from network attacks, ensuring normal forwarding and protocol operation.

Flexible Deployment and Management

  • Best price-to-performance ratio: Support the traditional star network topology and also the Ethernet Ring Protection Switching (ERPS) technology. ERPS enables ring network topology with superior redundancy and reliability. Once a node in the ring network fails, data can be forwarded from the other end. The ERPS is more cost-effective as it minimizes the investment cost on optical fiber.
  • Flexible network deployment: Support Gigabit copper and fiber (non-combo) deployment.
  • Easy maintenance and management: Support Syslog which enables centralized log collection, maintenance, analysis, troubleshooting and backup

Specifications

Model RG-IS2700-4GT4SFP-P
Fixed Ports
  • 4 100/1000BASE-X SFP ports
  • 4 10/100/1000BASE-T ports support PoE/PoE+
Management Port 1 console port
Switching Capacity 16Gbps
Forwarding Rate 12Mpps
MAC Address 8K
VLAN Group 256 (VLAN ID 1 ~ 4094)
VLAN Arrange Port based VLAN, Q-in-Q (VLAN Stacking), GVRP
PoE Power Budget 120 Watts
PoE Standard 802.3 af/at
Operating Temperature -40 to 75°C
Operating Humidity 5% to 95%RH
Protection Rating IP40
MTBF >42 years
Electromagnetic Interference
  • ESD (IEC 61000-4-2)               Level 3
  • RS (IEC 61000-4-3)                 Level 3
  • EFT (IEC 61000-4-4)               Level 3
  • CS (IEC 61000-4-6)                 Level 3
  • PFMF (IEC 61000-4-8)            Level 3
  • Surge (IEC 61000-4-5)            Level 3
L2 Protocols
  • Jumbo Frame
  • Port based VLAN
  • Q-in-Q (VLAN Stacking)
  • GVRP
  • Port Mirroring
  • IGMP Snooping v1/v2/v3
  • MLD Snooping
  • IGMP Immediate leave
  • Storm Control
  • IEEE 802.1D-STP
  • IEEE 802.1s-MSTP
  • IEEE 802.1w-RSTP
  • ERPS
  • R-Ring
QoS
  • WRR (Weighted Round Robin)
  • SP (Strict Scheduling Priority) Hybrid Priority
  • IEEE 802.1p Based CoS
  • IP TOS, DSCP based CoS
  • Ingress Rate limit
  • Egress Rate limit
  • IEEE 802.3ad Dynamic Port Trunking
  • Static Port Trunking
Security
  • Port Security : Static, Dynamic
  • Authentication: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption)
Management SNMP v1/v2c/v3, HTTP, HTTPS, Telnet, RMON, SNMP, SSH, SNTP client, DHCP Client, DHCP Server, Option 66/67/82
Dimensions (W×H×D) 74x152x105 mm
Installation Mode DIN rail-mounted
Power Supply 48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at, redundant dual power input
System Power Consumption 14 Watts
Heat Dissipation Fanless design with high-efficiency heat sink
Emissions EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Class A
