Ruijie RG-ES109GLPL Kenya



Ruijie RG-ES109GLPL Kenya

The Ruijie RG-ES109GLPL Kenya is the next generation unmanaged switches for scenarios like CCTV, ELV and small offices. Ruijie RG-ES109GLPL Switch is designed for small and medium businesses looking for a Plug-n-Play solution

Description

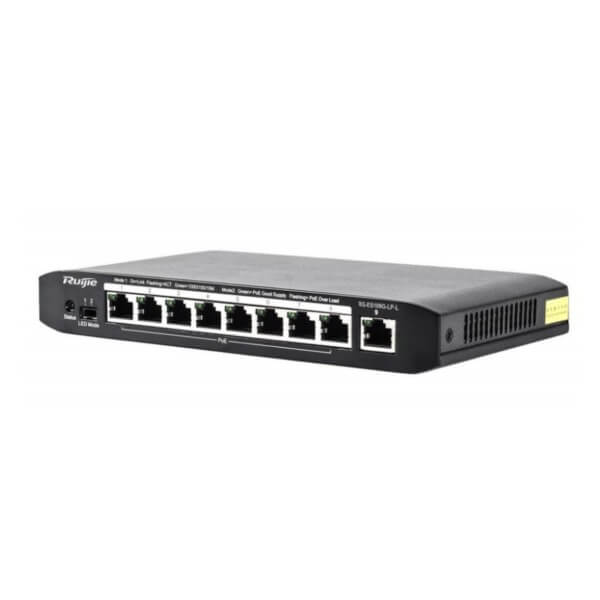

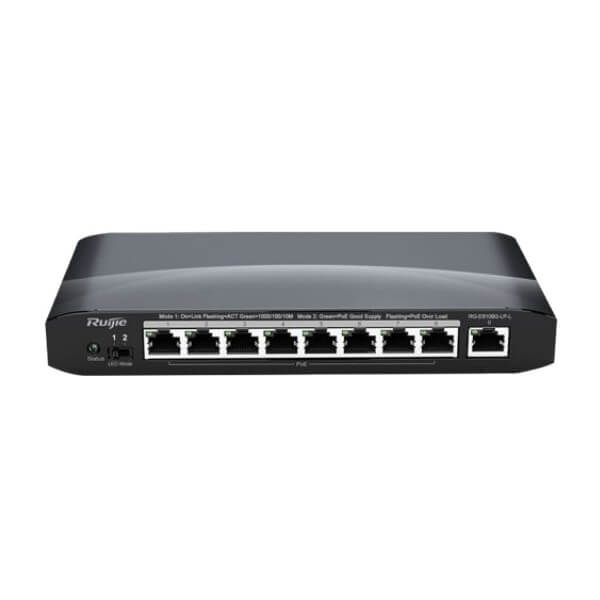

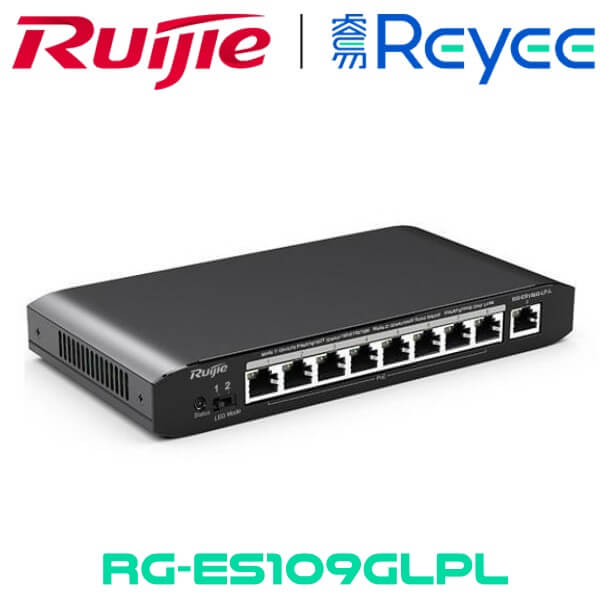

Ruijie RG-ES109GLPL Unmanaged Network Switch Kenya

The Ruijie RG-ES109GLPL Kenya is the next generation unmanaged switches for scenarios like CCTV, ELV and small offices. Ruijie RG-ES109GLPL Switch is designed for small and medium businesses looking for a Plug-n-Play solution. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port. This product line includes 3 switches including one 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. The RG-ES109GLPL Network Switch can be deployed with plug-and-play right out of the box. Furthermore, port isolation and flow control features can be accomplished with a simple flip of a button on the control panel. In addition, PoE budget status can be displayed directly on the port indicators, which is of great help in troubleshooting.

Features

Easy connection

Ruijie RG-ES109GLPL Kenya boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.

Power over Ethernet (PoE / PoE+)

Ruijie RG-ES109GLPL Kenya provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES109G-LP-L are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.

More than Plug-n-Play

The One-click flow control. With a flip button on the control panel, Ruijie Network Switch Kenya flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port

Specifications

Overview
  • Ruijie RG-ES109G-LP-L UnManaged Gigabit POE Switch 8 Port
  • 1 Port Lan Uplink Gigabit
  • 8-port 802.3af/at standard POE power supply
  • maximum power 54W
Ports 9 x 10/100/1000BASE-T
Power over Ethernet
PoE/PoE+
enabled Ports
8
PoE power budget 54W
Switching capacity 18Gbps
Forwarding rate 13.5Mpps
Dimensions(WxDxH) 206.5x 108.5 x28
Unit weight 1.1kg
Surge protection 4KV
Power supply Power Adapter
Input frequency 50/60Hz
Input voltage AC 100~240V
Cooling Fanless
Safety EN 60950-1
EMC EN 300 386
Emissions EN 55032, EN 55035
Immunity generic EN 55024
ESD EN 61000-4-2
Radiated EN 61000-4-3
EFT/Burst EN 61000-4-4
Surge EN 61000-4-5
Conducted EN 61000-4-6
Power frequency magnetic field EN 61000-4-8
Voltage dips and interruptions EN 61000-4-11
Harmonics EN 61000-3-2
Flicker EN 61000-3-3
Operating temperature 0℃~40℃
Storage temperature -40℃~70℃
Operating humidity 5%~90% R.H.
Storage humidity 5%~95% R.H.
Package contents
  • Ruijie RG-ES100 Series Switch
  • Power Cord
  • Power Adapter
  • Rubber Feet
  • Quick Start Guide
