Logitech Zoom Room Base Package



Logitech Zoom Room – Base Package.

Transform any space to a Zoom Room with one-touch join, both wireless (Direct Share) and wired (HDMI) content sharing, and center of room control. Tap and connect to a computer via USB as an additional display, opening up new touch control possibilities for applications like team collaboration, digital signage, room automation, environmental control, and other workflows where touch control is needed.

Description

Logitech Zoom Room Base Package Nairobi, Mombasa

Logitech Zoom Rooms in Nairobi, Mombasa transform any space to a Zoom meeting place with one-touch join, easy content sharing, and center of room control for online meetings. Now, Logitech® has made it easy for IT to deploy these benefits to meeting rooms of all shapes and sizes with pre-configured systems and expert support resources. Logitech Room Solutions for Zoom include everything you need to build out conference rooms with one or two displays.

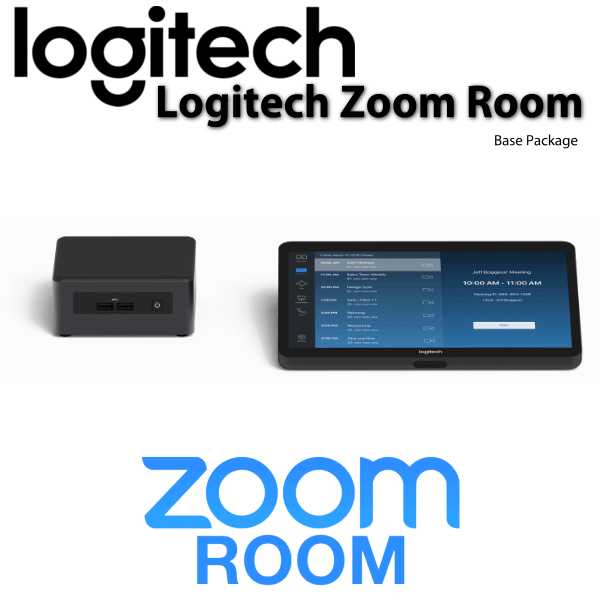

Available in small, medium, and large configurations, Logitech Room Solutions for Zoom come pre-configured with a Zoom-approved mini PC, a Logitech conference cam with RightSense™ technologies, a PC mount with cable retention, and the Logitech Tap touch controller. Systems arrive neatly packaged and ready for installation. A setup guide shows how components fit together, while an online wizard guides you through configuration step-by-step.

With quality components, commercial-grade cabling, and innovations that automate a better user experience, Logitech Room Solutions for Zoom make it easy to deploy Zoom Rooms throughout the workplace. It has an integrated strain relief and cable management system that keeps connections tight—route cables out the back for freestanding deployments, or through the bottom cover for a clean tabletop. Also, aramid-reinforced, plenum-rated, and Eca compliant for high pull-strength and durability in walls, above ceilings, or within standard ¾” conduit. 10 meters (32.8 ft) included, 25 meters (84 ft) optional.

 Logitech Zoom Room – Base Package Components and Specifications

Dimensions

 Height x Width x Depth:

2.3 in (58mm) x 9.6 in (244 mm) x 7.0 in (179 mm)

Weight: 2.75 lbs (1.25 kg)

Touch Screen

10.1” diagonal screen with 14° display angle

Oleophobic and anti-glare coating

1280 x 800 resolution

SYSTEM REQUIREMENTS

Windows® 10

Chrome™ OS 75 and higher

USB 2.0, 3.0, or 3.1 Type A port

Ports and Interfaces

USB 2.0/3.0/3.1 Type C (to PC)

USB 2.0/3.0/3.1 Type A (for accessory connection)

HDMI input (for 1080p video audio content sharing)

3.5mm / ⅛ “ 4 pole Headset Jack

TECHNICAL SPECIFICATIONS

General Specifications

Internal cable retention and strain relief system

Integrated ultrasonic speaker

Integrated PIR Motion Sensor

100mm x 100mm VESA FDMI (Flat Display Mounting Interface)

Kensington Lock slots (2)

Compatibility and Certifications

Logitech Tap is certified as a touch controller for video conferencing room solutions

Google Hangouts Meet hardware

Microsoft Teams Rooms / Skype Room System

Zoom Rooms

DisplayLink Plug and Display™: Tap connects via USB as an additional display for supported operating systems, including Windows 10 and Chrome OS

Optional Accessories

Table Mount

Riser Mount

Wall Mount

PC Mount

Logitech Strong USB cable: 10m cable included, 25m optional

PACKAGE CONTENTS

Tap Touch Controller

Logitech Strong USB 2.0 / 3.0 / 3.1 / 3.2 Cable 10m (32.8 ft)

Type A (male) to Type C (male)

Aramid-reinforced

Plenum Rated

Eca / IEC 60332-1-2 Compliant

¾” Conduit friendly

HDMI 1.4a cable 2.0m / 6.5 ft

Power adaptor with regional plugs (100-240v) 2.95m / 9.67 ft

VESA Mounting Screws (4)

Microfiber Cloth

Documentation
