Flyingvoice i12v Kenya



Flyingvoice i12v Kenya

Introducing the groundbreaking Flyingvoice i12v Kenya Audio/Video SIP Intercom, a state-of-the-art communication device designed to redefine audio and video intercom systems.

Category:

Description

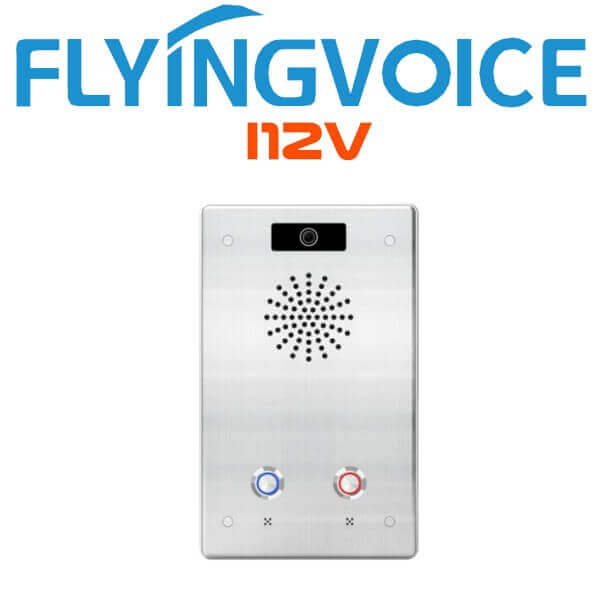

Flyingvoice i12v Audio/Video SIP Intercom Kenya

Introducing the groundbreaking Flyingvoice i12v Kenya Audio/Video SIP Intercom, a state-of-the-art communication device designed to redefine audio and video intercom systems. The i12v is meticulously crafted with a sturdy construction using high-strength aluminum alloy, ensuring durability and meeting stringent IP65 protection standards against dust, water, and impacts, thereby enhancing its lifespan and reliability. Additionally, the i12v is engineered to withstand extreme temperatures from -40°C to 75°C, making it suitable for diverse indoor and outdoor environments across various climates. Its compatibility with Power over Ethernet (PoE) further enhances its versatility and ease of installation. A standout feature of the Flyingvoice i12v Kenya is its built-in high-definition speakers and dual-MIC-array pickup, ensuring exceptional audio clarity and reception. The device is also equipped with LED speed dial keys, serving as intuitive controls for one-key intercom, notification broadcasting, and other essential functions, ensuring seamless communication experiences. In summary, the Flyingvoice i12v Kenya sets a new standard for voice intercom services, delivering unparalleled quality, durability, and functionality tailored to meet the demands of modern communication environments.

Main Features:

Multiple Protection Design

Made with aluminum alloy, supporting IK10 and IP65, effectively against collision, dust, splash. -40 ~ 75℃ ultra-wide temperature design to handle indoor and outdoor harsh environment situation.

One Click to Call

DSS Button, which can realize one-click call with SIP or IP point-to-point call, and broadcasting.

Strong Compatibility with SIP

Based on SIP protocols, it can easily access the mainstream IPPBX in the market and can be deployedused

in both LAN and WAN.

HD Audio/Video intercom

Built-in “dual MIC array”, providing clear voice quality; Built-in 1080P HD camera with video linkage to

FIP15G Plus.

Multiple Interface for a Wide Range of Connectivity

Built-in 1 short-circuit input and output interfaces which can be connected to peripherals such as infrared

sensors, inductive switches, etc., to realizing triggered alarm or door opening linkage.

Easy Configuration and Effortless Management

Integrated 802.11n 2.4GHz Wi-Fi and support for online management platforms such FACS, FRPS and FDC

to configure your device more conveniently even for mass deployment in seconds.

Specifications

Function Key  2* Speed Dial

Size  195mm*120mm*40mm(L*W*H)

Material

  • Panel: Aluminum alloy
  • Base case: iron

Button  1 Button with blue light, 1 Button with red light

Microphone  2

Speaker  1W 8Ω

Camera  1920*1080p(i12V)

Video Format  H.264

Installation  Wall-mounted

Power Supply  DC 12V/1A or PoE power supply

Wi-Fi  Built-in 2.4G Wi-Fi

Operating Temperature  -40~75°C

Protection Level  IP65,IK10

Port and Slot

  • 1 RJ45 port: 100M Ethernet Port
  • 1 set of short-circuit input port: Rated voltage 12V
  • 1 set of short-circuit output port: NC/COM connected by default, Rated voltage 12V, Maximum voltage DC 30V/1A, AC 125V/0.3A
  • 1 power port: DC input 12V /1A
  • 1 expansion card slot for TF card

Intercom Function

Basic Function

2 SIP lines, One-touch help, One-touch alarm, Two-way intercom, Real-time broadcast, Short-circuit input/output control

IP Direct Calling  Support

Function Key  Support custom settings: Speed Dial, Multicast, Action Url

IP Broadcasting  Long-press 3s for voice broadcast

Narrowband Encoding  G.711(A/u),iLBC,G.729A/B

Broadband Encoding  G.722,Opus

HD Voice

  • Duplex Intercom Acoustic Echo Cancel
  • Voice Activity Detection
  • Comfort Noise Generator
  • Packet Loss Concealment

DTMF  In-band,RFC 2833,SIP info

Network Features

Network Speed  10/100Mbps

IP Mode  IPv4/IPv6/IPv4&IPv6

IP Acquisition Method  Static IP setting, Dynamic DHCP acquisition(Default)

Network Security

  • Support DSCP, 802.1p QoS
  • Link layer discovery protocol
  • VPN: OpenVPN
  • Support SRTP, TLS call encryption
  • Support IEEE802.1x media access control

Time Synchronization  Support SNTP, PBX, DHCP

Configuration & Maintenance

Automated Deployment

  • TR069 network management (TR104/TR106)
  • FTP/TFTP/HTTP/HTTPS auto configuration
  • Support FACS Cloud Network Management Access
  • Support Flyingvoice FRPS redirection
  • DHCP Option66

Management and Maintenance

  • Support Web configuration
  • Support factory reset, reboot
  • Support packet capture and system log export

IP-PBX Features

  • Server-based recording capabilities
  • Outbound calls
