Flyingvoice FWR7302 4G-LTE Kenya

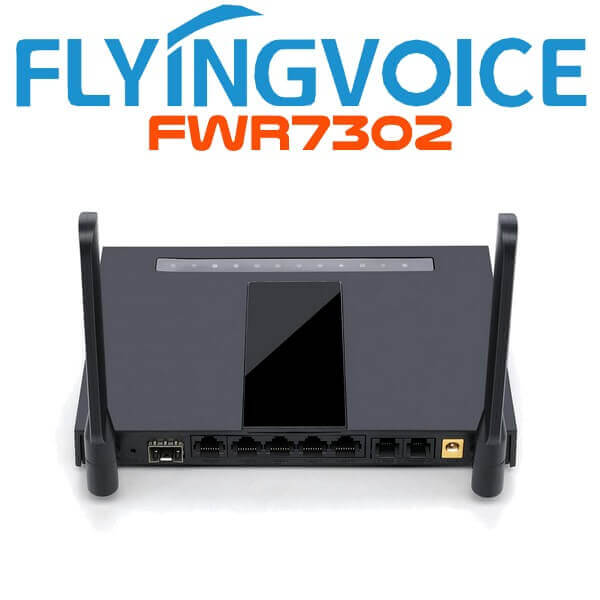

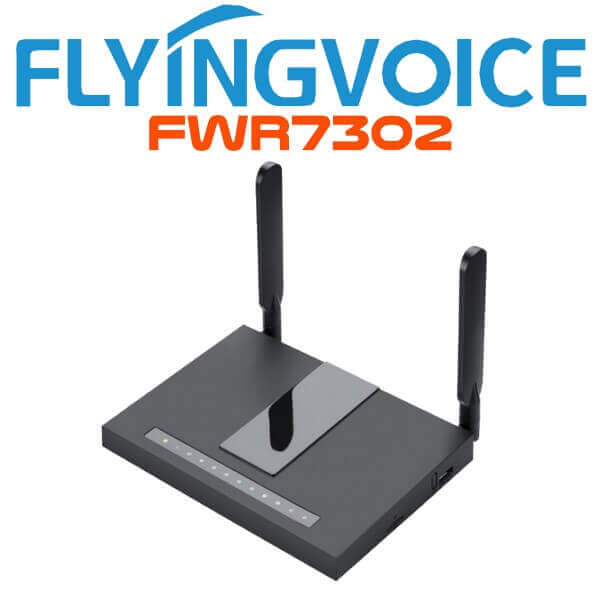

Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router Nairobi, Kenya.

The Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router includes extended functions which support SFP port, USB port, and 2 FXS ports. This Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router Nairobi Kenya is designed to provide its users with conventional VoIP and routing capabilities. Users can also take Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router as an FTP server to share LAN files, pictures, and other resources. Meanwhile, SFP for internet access, 2 FXS ports can be well adapted to small and micro enterprises,1FXS for telephone, 1FXS for Fax, therefore requiring no additional equipment. Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router  is ideally suited for small and medium enterprises (SMB) to build a wireless office.

Category:

Description

Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router Kenya

The Flyingvoice FWR7302 VoIP Router unlike FWR7202 is equipped with a USB port. It also has 2 FXS ports and an SFP port to provide users with a conventional VoIP and routing capabilities. The Flyingvoice FWR7302 uses Linux 2.6.36 operating system and can also be used as an FTP server, SAMBA server and Disk Management in order to share LAN files, pictures and other multimedia content.

Furthermore, SFP for internet access, 2 analog FXS ports can be well adapted to small and micro enterprises, 1 FXS for telephone, 1 FXS for Fax, eliminating the need to incur extra costs buying other equipment.FWR7302 VoIP wireless router is ideally suited for small and medium enterprises (SMB) to build wireless office. Flyingvoice FWR7302 VoIP Router supports IEEE 802.11ac gigabit wireless LAN standard, the highest wireless speed is up to 867 Mbps and it supports both 2.4 GHz and 5GHz bands. For VoIP end user, 5G band guarantees less interference and higher transmission quality.

Flyingvoice FWR7302 Wireless VoIP Router Features :

  • SIP Convenience :
    • The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Flyingvoice FWR7302 VoIP router can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your FlyingVoice FWR7302 VoIP Router to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Flyingvoice FWR7302 VoIP router is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.
  • Management Platform :
    • The Flyingvoice FWR7302 VoIP Router delivers convenience, reliability and seamless integration through the Flyingvoice Device Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain, but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in upgrade, maintenance and operational costs. The Flyingvoice FWR7302 VoIP Router is, thus, a perfect solution regardless of the variations in your company’s needs.
  • Automated – Provisioning :
    • The technologically advanced Flyingvoice FWR7302 VoIP Router has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.
  • Highly Flexible :
    • The Flyingvoice FWR7302 VoIP Router pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.
  • Clear Audio :
    • The Flyingvoice FWR7302 VoIP Router offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations.
  • 4G LTE
    • Download your favorite music, movies and other multimedia content at a lightning speed using the 4G LTE wireless data transmission incorporated in the Flyingvoice FWR7302 VoIp Router. It supports IEEE802.11ac and  802.11b/g/n wireless LAN standards, with its wireless Speed being up to 867Mbps. It also supports both 2.4GHz and 5GHz bands. For VoIP end user, 5G band guarantees less interference and  high transmission quality.
  •  2 FXS (Foreign Exchange Subscribers) Ports :
    •  Foreign Exchange Subscribers is the port that actually delivers the analog line to the subscriber. it is simply the “plug in the wall” that delivers a dial tone, battery current and ring voltage. This is the jack or interface to the phone system which FXO devices can be connected to. The Flyingvoice FWR7302 VoIP Router has been equipped with 2 FXS ports to maximize communication while using your telephone to make calls, thus maximizing work productivity.
  •  Portability :
    • The Flyingvoice FWR7302 VoIP Router has been meticulously designed to be extremely lightweight, with a net weight of just 350grams. This enables you to move around freely with it, without any strain. Its compactness allows you to easily keep it in your bag for maximum safety.
  • Pocket – Friendly :
    • The hi-tech Flyingvoice FWR7302 VoIP Router is configured to support low energy consumption thus lower power costs . This saves you from incurring extra costs while using the high – performing gadget. The setup further gives you the freedom to select only what you need for a perfect fit based on the already existing office fixtures.

Call Features :

  • Conference  Guide :
    •  This advanced feature of the Flyingvoice FWR7302 VoIP Router helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls, thus enabling the user to easily join or create meetings.
  • Call Transfer :
    • This advanced feature of the Flyingvoice FWR7302 VoIP Router allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Wireless Router.
  • Call Waiting :
    • You can hear another incoming call when you are already on an active phone call (beep). With the Flyingvoice FWR7302 VoIP Router, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.
  • Call Holding:
    • You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Flyingvoice FWR7302 VoIP Router

Flyingvoice FWR7302 Wireless VoIP Router Specifications :

VoIP SoC

  • CPU: MIPS Single-core 600MHz

Flash

  • 16MB Flash

RAM

  • 128MB DDR2 RAM

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 2A

Operating System

  • Linux 2.6.36

I/O Interfaces

  • 1 RJ-45 for WAN Port (Ethernet 1000 Base-T)
  • 4 RJ-45 for LAN Port (Ethernet 1000 Base-T)
  • 2 RJ-11 for FXS Port
  • 1 USB 2.0 Host Ports
  • 1 Combo SFP port
  • 1 SIM card port

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • G.711(A/u),PESQ>4.3
  • G.729AB,PESQ>3.7
  • Adaptive Jitter Buffer Management
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation
  • T.30 FAX with G.711
  • Real time FAX over IP via T.38

LTE Features

  • Four-Band TDD-LTE B38/B39/B40/B41
  • Three-Band FDD-LTE B1/B3/B8
  • Dual-Band TD-SCDMA B34/B39
  • Dual-Band UMTS/HSDPA/HSPA B1/B8
  • GSM/GPRS/EDGE 900/1800 MHz
  • Uplink up to 50Mbps
  • Downlink up to 100Mbps
  • 2G/3GFallback

Management

  • Firmware Upgrade
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMP v2
  • Telnet
  • TR069
  • System Log: local log and remote log

Feature keys

  • Support 1000Mbps HNAT
  • 2T2R 2.4G 802.11 b/g/n(300 Mbps)
  • 2T2R 5G 802.11ac (867Mbps)
  • Support VoIP FXS port with SIP and T.38 FAX
  • External Antenna for LTE and Wifi

SPF feature

  • Speed: GE
  • Interface type: LC
  • Module spec: Single Module
  • Core: Double core& single core

Protocols

  • SIP V2.0 (RFC 3261, 3262, 3263, 3264)
  • SDP (RFC2327)
  • RTP/RTCP (RFC823/903)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • HTTP Server for Web Management
  • TFTP/HTTP for Auto Provisioning
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • IEEE802.1Q VLAN/802.1p and IP DSCP

Applications

  • Support LTE(just for FWR7302)
  • Support NAT mode and Bridge mode
  • Support DDNS
  • MAC address cloning
  • SIP proxy redundancy
  • NAT Traversal by STUN
  • Built-in Wired speed NAT Router
  • DHCP Server and Client
  • IP conflict detection
  • Port Forwarding, DMZ, SuperDMZ
  • 802.1Q VLAN/802.1p, DSCP, Rate Limiting
  • VPN(PPTP,L2TP, IPSec) Passthrough
  • SNTP
  • IGMPv2
  • Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)

Wireless

  • 802.11 b/g/n support
  • 4 SSID
  • Static WEP(64/128bit)
  • Dynamic WEP(64/128bit)
  • AES(CCMP/TKIP)
  • MAC certification
  • WEP certification
  • WPA-PAK/WPA-PSK(2.0)
  • WPA/WPA2
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • WPS
  • Station list
  • Radius certification and billing
  • MAC Filter(different from wired MAC Filter)

Call Features

  • 3-way conference
  • Call hold
  • Call forwarding
  • Call Transfer
  • Call waiting
  • Caller ID and CWCID
  • DTMF Relay: In-band, Out-band and SIP INFO
  • QoS Layer 3
  • Call Log
  • CID/CWCID
  • Dial Plan
  • DTMF Mode: In band, RFC2833 and SIP Info

Regulatory

  • FCC Part 15 Class B approval
  • CE certification
  • RoHS compliance

Size And Weight

  • 188mm(L)x155mm(W)x29mm(H)
  • 331g(N.W)
