Flyingvoice FTA5120 Voice gateway Nairobi



Flyingvoice FTA5120 Voice gateway Nairobi Kenya

Based on Asterisk and running on the Linux 2.6.36 operating system, the Flyingvoice FTA5120 VoIP Adapter is a stand alone device that allows its user to make internet calls without having to purchase a PC. It can also be used as a small switch. Being fully compliant with industrial SIP V.2.0 standards, the Flyingvoice FTA5120 VoIP Adapter Kenya is fully compatible with many other SIP devices, platforms, applications as well as software. It is also compatible with most network service providers and supports the TR069 CPE Management & Detection Protocol. Standard features such as high quality audio, compact design, ATA products,  high interoperability, and high – cost performance deliver maximum convenience of IP voice and data connection.

Category:

Description

Flyingvoice FTA5120 VoIP Adapter Kenya

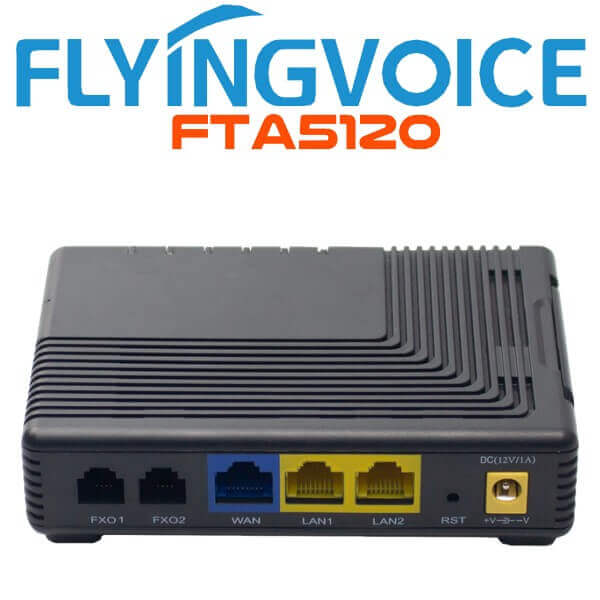

The Flyingvoice FTA5120 VoIP Adapter has two FXO ports, two LAN ports, and one WAN port. Being one of the most popular products ever produced during the Feiyin era by Flyingvoice, it is packed with many standard features which support a high performance. An embedded Asterisk feature enables the Flyingvoice FTA5120 VoIP Adapter Kenya to work as a small PBX. The Flyingvoice FTA5120 VoIP Adapter is equipped with 2 FXO ports, therefore allowing its user to make 2 PSTN calls. It also supports high performance NAT routing capabilities and can be used as a small switch to distribute internal internet access.

The Flyingvoice FTA5120 VoIP Adapter Kenya is built to support SAS as well as call type identification feature to enable a user identify toll calls. Its simple configuration further allows the inner line to reject charged calls, therefore lowering communications costs. The premium VoIP Adapter is a stand-alone device which allows its user to make internet calls without requiring to purchase a PC.

Being fully compliant with industrial SIP V.2.0 standards, the Flyingvoice FTA5120 VoIP Adapter Kenya is fully compatible with many other SIP devices, platforms, applications as well as software. It is also compatible with most network service providers and supports the TR069 CPE Management & Detection Protocol. Standard features such as high quality audio, compact design, ATA products,  high interoperability, and high – cost performance deliver maximum convenience of IP voice and data connection.

Flyingvoice FTA5120 VoIP Adapter Features :

Emergency State :

When a connection with the external proxy fails, the Flyingvoice FTA5120 VoIP Adapter enters the SAS emergency state. The FTA5120 serves as a proxy for the IP Phones, by handling internal call routing of the IP Phones (within the LAN enterprise).

Stand-Alone Survivability (SAS) :

This smart feature of the Flyingvoice FTA5120 VoIP Adapter  is of great value to enterprises using hosted IP services such as IP Centrex or IP PBX and may face a survivability challenge. SAS therefore provides backup for SIP clients, ensuring that telephony communication is not disrupted whenever there is a disconnection with the centralized SIP server.

Automated – Provisioning :

The technologically advanced FTA5120 Wireless VoIP Adapter has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

Normal State
In the normal state, the Flyingvoice FTA5120 VoIP Adapter receives REGISTER requests from the FIP1X IP Phones and forwards them to the external proxy normally.

Management Platform :

The Flyingvoice FTA5120 Wireless VoIP Adapter delivers convenience, reliability and seamless integration through the Flyingvoice Device Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain, but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in upgrade, maintenance and operational costs. The Flyingvoice FTA5120 Wireless VoIP Adapter is therefore a perfect solution regardless of the variations in your company’s needs.

 SIP V.2.0 – Compliant :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Flyingvoice FTA5120 Wireless VoIP Adapter can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your FlyingVoice FTA5120 Wireless VoIP Adapter to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Flyingvoice FTA5120 Adapter Wireless VoIP Adapter is based on SIP v2.0 (RFC 3261, 3262, 3263 and 3264) and works perfectly with most of the SIP platforms.

Crystal Clear Voice Quality :

The Flyingvoice FTA5120 Wireless VoIP Adapter offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations.

Highly Flexible :

The Flyingvoice FTA5120 Wireless VoIP Adapter pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

Pocket – Friendly :

The hi-tech Flyingvoice FTA5120 Wireless VoIP Adapter is configured to support low energy consumption thus lower power costs . This saves you from incurring extra costs while using the high – performing gadget. The setup further gives you the freedom to select only what you need for a perfect fit based on the already existing office fixtures.

SPECIFICATIONS

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 1A

Operating System

  • Linux 2.6.36

I/O Interfaces

  • 3 RJ-45 for 10/100 Ethernet Ports
  • 2 RJ-11 for FXO Ports
  • Reset key

Wireless

  • 11 b/g/n support
  • 4 SSID
  • Static WEP(64/128bit)
  • Dynamic WEP(64/128bit)
  • AES(CCMP/TKIP)
  • MAC certification
  • WEP certification
  • WPA-PAK/WPA-PSK(2.0)
  • WPA/WPA2
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • WPS
  • Station list
  • MAC Filter(different from wired MAC Filter

 Audio Codec

  •  711(A/u), PAMS>4.3
  • 729A/AB, PAMS>4.0
  • 30 FAX with G.711
  • Real time FAX over IP via T.38 (Phone 2 port only)
  • Adaptive Jitter Buffer
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164) • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level • SNMPv2
  • TR069

Protocols

  • SIP V2.0 (RFC 3261, 3262, 3263, 3264)
  • Backward compatible with RFC2543
  • Session timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC823/903)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • IEEE802.1Q VLAN/802.1p and IP DSCP

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detection

FXO Features

  • SAS
  • Busy tone detection
  • Voice interrupt detection
  • One-time dialing
  • Dial two times
  • FAS (Fake billing correction) • Impedance configuration
  • Caller ID ( DTMF & FSK) • Flash validation time
  • Block Collect Calls
