Flyingvoice G508 FXS VoIP Gateway Nairobi, Kenya



Flyingvoice G508 FXS VoIP Gateway Nairobi Kenya

Flyingvoice G508 FXS VoIP Gateway, which has 8 FXS ports, one LAN port, and one WAN port, is one of the most popular VoIP ATAs researched and produced by FlyingVoice. This product does not only provide 8 SIP lines for users to make calls, but also is a wire-speed NAT router, enabling you enjoy an easy network atmosphere. What’s more, Flyingvoice G508 FXS VoIP Gateway supports T.38 real-time FAX and T.30 FAX with G.711 codec. Flyingvoice G508 is a stand-alone device, which requires no PC to make Internet calls. This Flyingvoice G508  ATA guarantees clear and reliable voice quality on the Internet, which is fully compatible with the SIP industry standard and able to interoperate with many other SIP devices and software on the market.

Category:

Description

Flyingvoice G508 FXS VoIP Gateway Kenya

Contrary to the closely similar Flyingvoice G504 VoIP Phone Adapter which has 4 FXS ports, the Flyingvoice G508 has 8 FXS ports, enabling users to maximize productivity with enhanced communication. It supports T.38 real time FAX and T.30 FAX with G.711 codec. The Flyingvoice G508 VoIP Phone Adapter is an independent device, eliminating any need of a PC in order to make internet calls. This Advanced Technology Attachment(ATA) results in crystal clear and audible voice quality when using the internet with an excellent compatibility with SIP industrial standards, enabling the device to easily work with other SIP devices and compatible softwares available in the market.

The G508 is SIP – based, enabling users to register to different SIP Proxy servers, IP PBX and establish up to 2 concurrent VoIP calls for more flexibility in communication. The technologically advanced Flyingvoice G508 VoIP Adapter allows a maximum of three  parties to join a conference call from different locations, thus saving the user time and extra phone call costs.

Flyingvoice G508 FXS VoIP Gateway Features :

(Technical Report) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Flyingvoice G508 VoIP Phone Adapter uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Flyingvoice G508.

8 FXS (Foreign Exchange Subscribers) Ports :

 Foreign Exchange Subscribers is the port that actually delivers the analog line to the subscriber. it is simply the “plug in the wall” that delivers a dial tone, battery current and ring voltage. This is the jack or interface to the phone system which FXO devices can be connected to. The Flyingvoice G508 VoIP Phone Adapter has been equipped with 8 FXS ports to maximize communication while using your telephone to make calls, thus maximizing work productivity.

 Management Platform :

The Flyingvoice G508 VoIP Phone Adapter delivers convenience, reliability and seamless integration through the Flyingvoice Device Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain, but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in upgrade, maintenance and operational costs. The Flyingvoice G508 VoIP Phone Adapter is, thus, a perfect solution regardless of the variations in your company’s needs.

Automated – Provisioning :

The technologically advanced Flyingvoice G508 VoIP Phone Adapter has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

SIP Convenience :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Flyingvoice G508 VoIP phone adapter can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your FlyingVoice G508 VoIP Phone Adapter to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Flyingvoice G508 VoIP  phone adapter is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Highly Flexible :

The Flyingvoice G508 VoIP Phone Adapter pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

Portability :

The Flyingvoice G508 VoIP Phone Adapter has been meticulously designed to be extremely lightweight, with a net weight of just 295grams. This enables you to move around freely with it, without any strain. Its compactness allows you to easily keep it in your bag for maximum safety.

Pocket  – Friendly :

The hi-tech Flyingvoice G508 VoIP Phone Adapter  is configured to support low energy consumption thus lower power costs . This saves you from incurring extra costs while using the high – performing gadget.The setup further gives you the freedom to select only what you need for a perfect fit based on the already existing office fixtures.

Voice Clarity :

The Flyingvoice G508 VoIP Phone Adapter offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations.

CALL FEATURES :

Conference Guide :

 This advanced feature of the Flyingvoice G508 VoIP Phone Adapter helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls, thus enabling the user to easily join or create meetings.

Call Transfer :

This advanced feature of the Flyingvoice G508 VoIP Phone Adapter allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Wireless Adapter.

Call Waiting :

You can hear another incoming call when you are already on an active phone call (beep). With the Flyingvoice G508 VoIP Phone Adapter, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.

Call Holding :

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Flyingvoice G508 VoIP Phone Adapter.



Flyingvoice G508 FXS VoIP Gateway Specifications :

Flash

  • 16MB Flash

RAM

  • 256MB SDRAM

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 3A

Operating System

  • Linux 2.6.36

I/O Interfaces

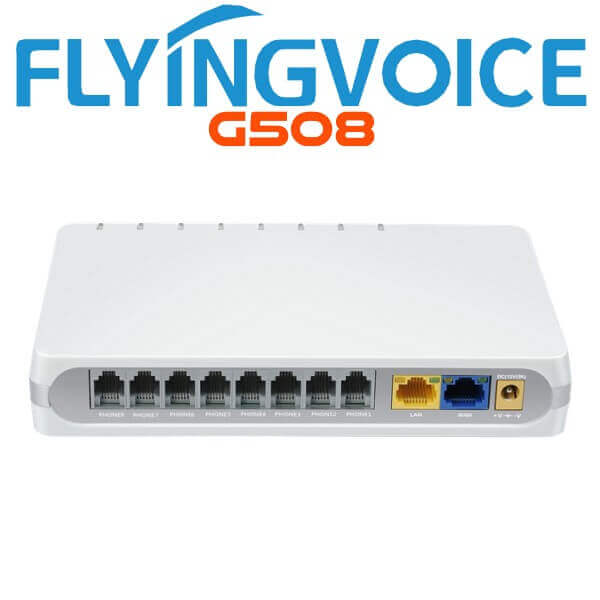

  • 2 RJ-45 for 10/100/1000Ethernet Ports
  • 8 RJ-11 for FXS Ports

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • G.711(A/u),PAMS>4.3
  • G.729A/AB,PAMS>4.0
  • T.30 FAX with G.711
  • Real time FAX over IP via T.38(Phone 2 port only)
  • Adaptive Jitter Buffer
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMPv2
  • TR069

Protocols

  • SIP V2 (RFC 3261)
  • Backward Compatible with RFC2543
  • Session Timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889 and RFC1890)
  • NAPTR for SIP URI Lookup (RFC2915)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • PPTP/L2TP VPN
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provisioning
  • DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • PPPoE
  • SIP proxy redundancy
  • Dynamic via DNS SRV, A records
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detectionv

Call Features

  • 3-way Conference
  • Music on hold
  • DTMF mode: In-band, RFC2833 and SIP INFO
  • Call Hold
  • Call Forwarding
  • Call Mute
  • Call Transfer
  • Call Waiting
  • Speed Dial
  • Caller ID and CWCID
  • Hotline
  • Real time fax over IP via T.38
  • T.30 FAX with G.711
  • Dial Plan
  • Black List
  • Call Log

SIZE And Weight

  • 180mm(L)x110mm(W)x30mm(H)
  • 295g(N.W)
