Description

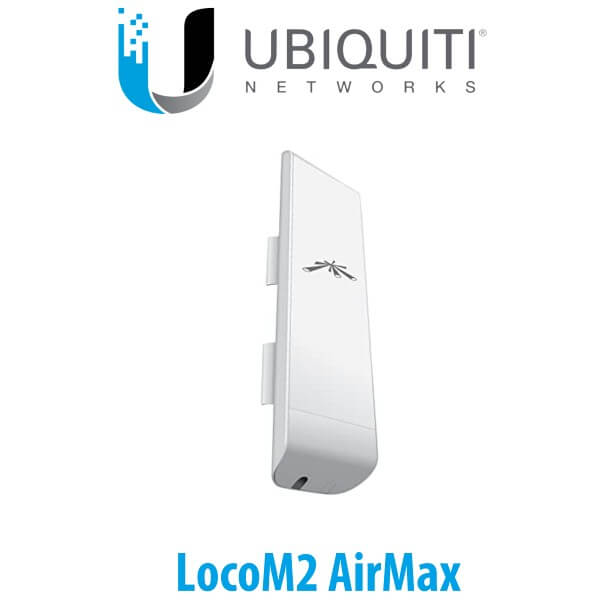

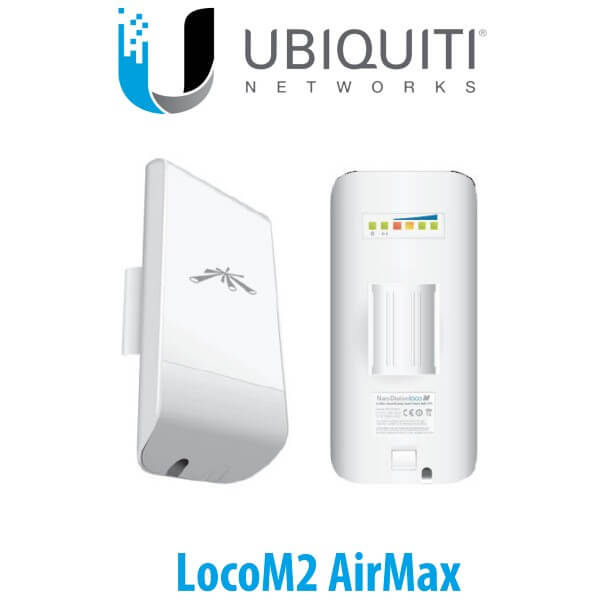

Ubiquiti LocoM2 AirMax Outdoor NanoStation Kenya
The Ubiquiti LocoM2 AirMax CPE Outdoor NanoStation Kenya is an affordable and highly reliable solution that delivers excellent performance to its users. It boasts of a long transmission range of up to 10km, 25+Mb/s of throughput performance, as well as an intuitive AirOS by Ubiquiti. It is also equipped with a broadband wireless CPE technology which delivers a fast performance.
Ubiquiti LocoM2 AirMax Outdoor NanoStation Kenya Features
- Compact CPE Design
- Featuring a panel antenna and dual-polarity performance, the Ubiquiti LocoM2 Outdoor NanoStation Kenya is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
- Plug and Play Installation
- The Ubiquiti LocoM2 NanoStation requires no tools for assembly; only a single wrench is required for pole-mounting.
- Dual Ethernet Connectivity
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
- Versatile Application Use
- The Ubiquiti LocoM2 Outdoor NanoStation Kenya can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
- Powerful airOS® Features
- Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
- Advanced Software Technology
- Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
- Â Window/Wall-Mounting Kit
- Use the NanoStation® Mount to quickly mount the Ubiquiti LocoM2 Outdoor NanoStation Kenya on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
- Wall/Pole Mounting Kit
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
Ubiquiti Networks LOCOM2Â Specs
Wireless
| Wireless Frequency Bands | 2.4 GHz |
| Sensitivity | -72 to -95 dBm |
| Antenna Gain | 8 dBi |
| Transmit Power | 15 to 20 dBm |
Interface
| Ports | 1 x 10/100 Mb/s Ethernet (RJ45) |
| Throughput | 150 Mb/s Total |
Hardware
| RAM | 16 MB |
| Storage Capacity | 4 MB |
| Processor | 180 MHz MIPS 4KC |
Electrical
| DC Input Power | VDC at 0.5 A |
Environmental
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 95% |
General
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 6.4 x 3.1 x 1.2″ / 16.3 x 8 x 3.1Â cm |
| Weight | 0.4Â lb / 0.2Â kg |
Packaging Info
| Package Weight | 1.07 lb |
| Box Dimensions (LxWxH) | 8.55 x 3.8 x 3.2″ |
