Description

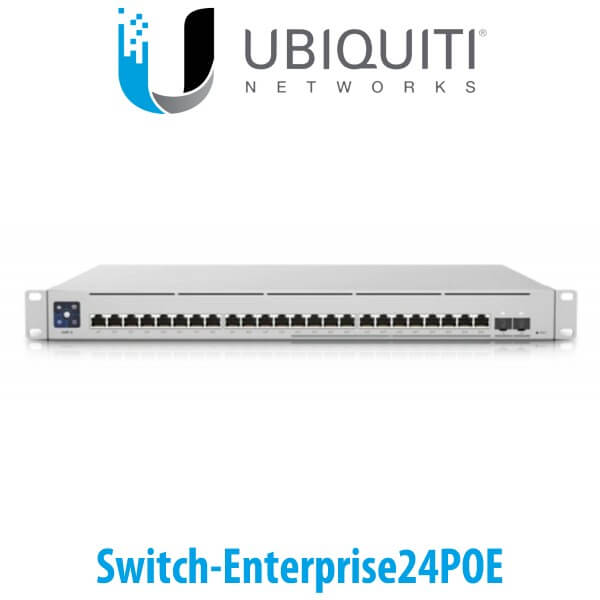

Ubiquiti USW-Enterprise24PoE Switch Kenya
The Ubiquiti USW-Enterprise24PoE Kenya, is a Switch Enterprise with 24 PoE, fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. This managed Switch enhances operations by offering support power-over-Ethernet devices, such as security cameras, VoIP phones, access points, and more.
Moreover, Ubiquiti USW-Enterprise24PoE Kenya is equipped is two 10G SFP+ ports available for high-speed fiber uplinks. With the convenient 1.3″ LCM color touchscreen users quickly configure, monitor, and troubleshoot your connections, or you can manage your switch from almost anywhere using the UniFi Network app, which also includes an augmented reality feature that provides you with a visual overview of your port connections and rackmount hardware is included.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
- 3″ LCM color touchscreen with AR switch management
- Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports
- 3″ LCM color touchscreen with AR switch management
- (12) GbE, 802.3at PoE+ RJ45 ports
- (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- 10G SFP+ ports
- USP RPS DC input
- 400W total PoE supply
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Easy user interface
The Ubiquiti USW-Enterprise24PoE Kenya is equipped with a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
Unmatched Performance
The Ubiquiti USW-Enterprise24PoE Kenya has a 124 Gb/s with 62 Gb/s non-blocking throughput and a 92.25 Mpps forwarding rate for smooth data transfers.
Enhance your experience with UniFi Network Controller
- Manage your networks from a single control panel
- Robust configuration, control, and monitoring features
- Remote firmware upgrade
- User and guest management
- Guest portal and hotspot support
Specifications
| Mechanical | |
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″) |
| Weight |
|
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method |
|
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces |
|
| SFP+ Interfaces | (2) 1/10G SFP+ |
| PoE Interfaces | (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System |
|
| Ethernet | White : Link or Activity |
| SFP+ | White : Link or Activity |
