Ruijie RG-RAP2260G Kenya



Ruijie RG-RAP2260G Kenya

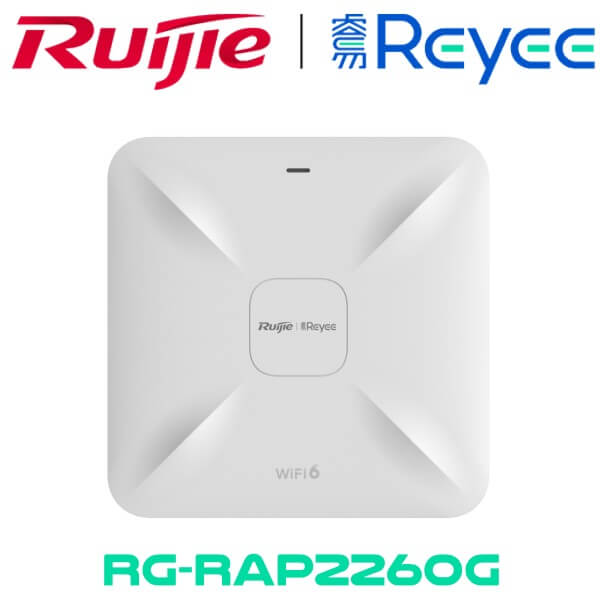

Ruijie Reyee RG-RAP2260G Kenya is a high-performance entry Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios supporting 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios.

Description

Ruijie Reyee RG-RAP2260G Access Point Kenya

Ruijie Reyee RG-RAP2260G Kenya is a high-performance entry Wi-Fi 6 Access Point for indoor large-area Wi-Fi coverage scenarios supporting 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, RG-RAP2260G supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. Ruijie Reyee RG-RAP2260G Kenya can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per Access Point . Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.

Features

High-Speed Dual-band Wi-Fi

The device supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience. Ruijie Reyee RG-RAP2260G Kenya provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz, in total 3202Mbps per Access Point .

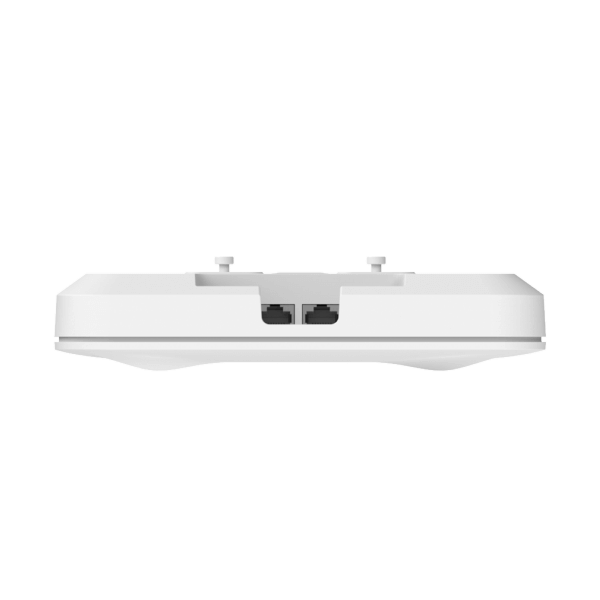

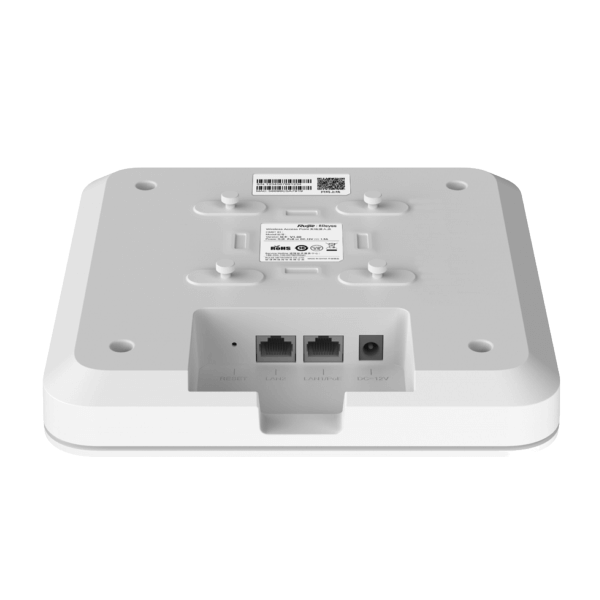

Dual LAN Ports Design

Ruijie Reyee RG-RAP2260G Kenya adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices, etc.

Support Routing and AP Mode

Ruijie Reyee RG-RAP2260G Kenya supports both AP and routing mode. A wireless network can be formed with multiple Access Points, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

ruijie rg rap2260g access point mombasa

ruijie rg rap2260g access point mombasa

Support Layer 3 roaming

The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Stronger and More Stable Signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out most of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust Casing

With the robust and flame-retardant material of the Access Point casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

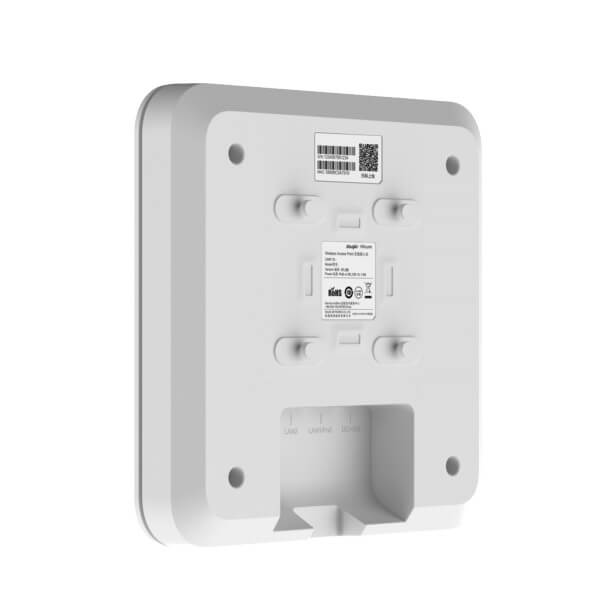

Simple Installation

Ruijie Reyee RG-RAP2260G Kenya supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.

Industrial Design

The Ruijie Reyee RG-RAP2260G Kenya features industrial product design, iconic edges and breathing light makes the product more recognizable.

Specifications

Model RG-RAP2260(G)
Radio Dual-stream dual-band
Protocol Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n/ax :2.4G ~ 2.4835GHz
  • 802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific)
Antenna Internal antennas(2.4G: 3dBi,5G: 3dBi)
Spatial Streams 2.4G 2x2MIMO  5G 2x2MIMO
Max Throughput
  • Up to 574Mbps at 2.4G
  • Up to 1201Mbps at 5G
  • 1.775Gbp per Access Point
Modulation
  • OFDM:
    • BPSK@6/9Mbps
    • QPSK@12/18Mbps
    • 16QAM@24Mbps
    • 64QAM@48/54Mbps
  • DSSS:
    • DBPSK@1Mbps
    • DQPSK@2Mbps,and CCK@5.5/11Mbps
  • MIMO-OFDM:
    • BPSKPSK
    • 16QAM
    • 64QAM
    • 256QAM and1024QAM
  • OFDMA
Receive Sensitivity
  • 11b:
    • -96dBm(1Mbps)
    • -93dBm(5Mbps)
    • -89dBm(11Mbps)
  • 11a/g:
    • -91dBm(6Mbps)
    • -85dBm(24Mbps)
    • -80dBm(36Mbps)
    • -74dBm(54Mbps)
  • 11n:
    • -90dBm(MCS0)
    • -70dBm(MCS7)
    • -89dBm(MCS8)
    • -68dBm(MCS15)
  • 11ac:
    • 20MHz :-88dBm(MCS0), -63dBm(MCS9)
    • 40MHz :-85dBm(MCS0), -60dBm(MCS9)
    • 80MHz :-85dBm(MCS0), -60dBm(MCS9)
  • Wi-Fi 6:
    • 80MHz :-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
Maximum output power of the transmitter
(single stream)
  • 2.4GHz (2.4~2.4835GHz) :23dBm
  • 5GHz (5.150~5.250GHz,5.725~5.850GHz) :23dBm

(country-specific comply with local laws)

Adjustable Power 1dBm
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.56kg (excluding mounting kits)
Service Ports 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port NA
LED Indicator Single indicator (green light)
Power Supply
Power Consumption ≤ 15.3W
Environment
  • Operating temperature : 0°C~40°C
  • Storage temperature : -40°C~70°C
  • Operating humidity (non-condensing) : 5%~95%
  • Storage humidity (non-condensing) : 5%~95%
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >400000H
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 512
  • Recommended number of clients : 100
  • Up to 8 SSIDs
  • Support SSID hiding
  • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
  • SSID-based and radio-based STA limit
  • Support Layer 2 user isolation
