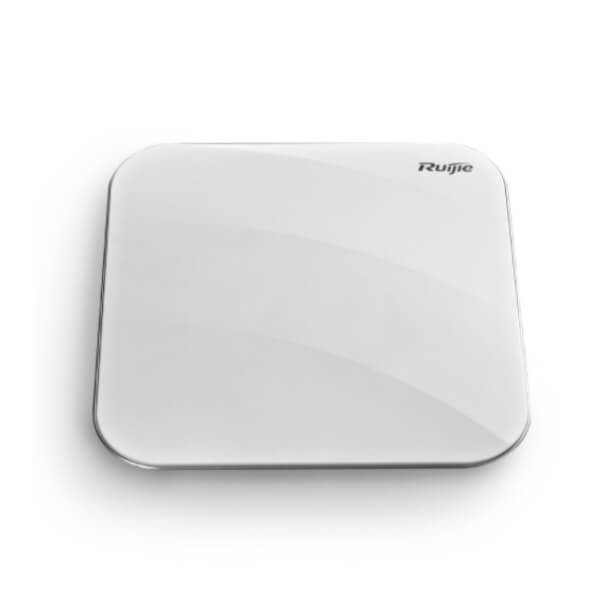

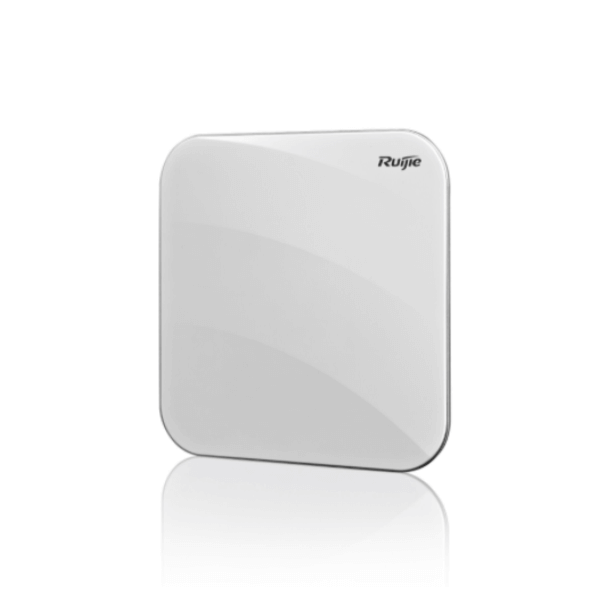

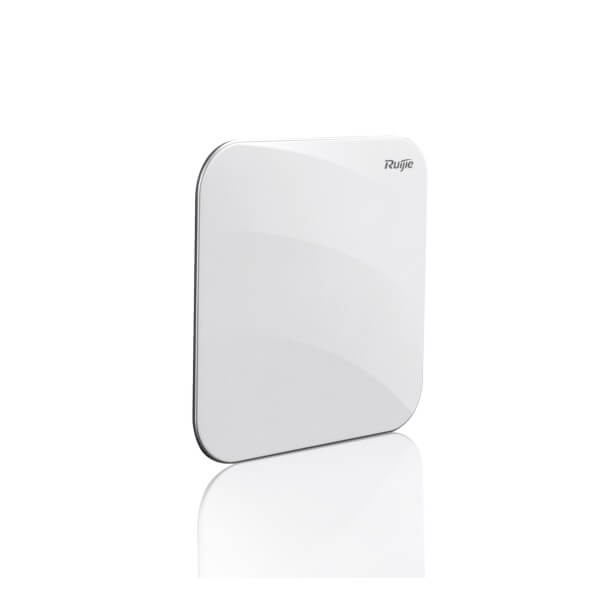

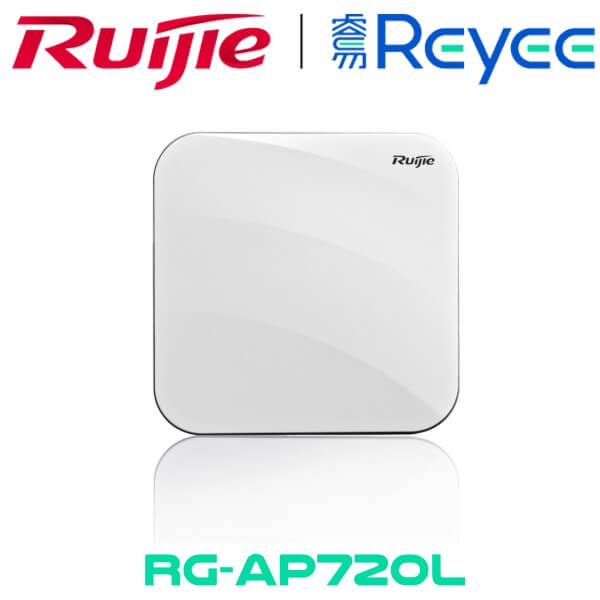

The Ruijie RG-AP720L Kenya is a high performance 802.11ac Wave 2 access point with 2×2 MU-MIMO and concurrent Dual-band design, data rate of up to 1.167Gbps. Ruijie hybrid management flexibility, users can choose the Ruijie Cloud Management and Hardware Controller to suite their needs.

Description

Ruijie RG-AP720L Access Point Kenya

The Ruijie RG-AP720L Kenya is a high performance 802.11ac Wave 2 access point with 2×2 MU-MIMO and concurrent Dual-band design, data rate of up to 1.167Gbps. Taking advantage of Ruijie hybrid management flexibility, customer can choose the Ruijie Cloud Management and Hardware Controller for various fast-changing business needs. No matter cloud or hardware-based controller, all integrated with advanced radio optimization, wireless roaming as well as secure authentication out-of-box. The high-performance RG-AP720L is ideal for primary and secondary education institutes, small to medium enterprises, boutique hotels, retail chains and other industries for their indoor scenarios. Ruijie RG-AP720L Kenya boasts of the innovative market leading feature, Pre-AX, CorrectLink & AirReorder drastically improve RF efficiency in high density WiFi deployment.

Features

High Density WiFi Experience

With Pre-AX Technology Optimizing WiFi Experience Ruijie RG-AP720L Kenya, adopts DCCA/DTPC from 802.11ax technology to dynamically fine tune RSSI threshold to maximize the utilizable spectrum and allow more data to be transmitted. Each AP optimize the RF channel and power according to each client.

CorrectLink, Improves Traffic Load Balancing & Client Roaming

Ruijie RG-AP720L Kenya packs CorrectLink technology is designed to analyses the latency, jitter and the signal strength of each client. It also correlates with additional information like wireless channel utilization and throughput to optimize the best user experience for wireless client.

AirReorder Allocating Time Slots to Terminals

The fundamental of AirReorder is to allocate the equal the time slot to ensure that each terminal can get the fairness of RF resources as possible. This can prevent lower data rate client to degrade entire network performance by occupying the limited shared medium.

WIS Cloud Smart Services Platform

Ruijie WIS is an AI-based intelligent services designed for WiFi optimization on the cloud. Ruijie RG-AP720L Kenya seamlessly integrated with Ruijie hardware AC on premise helps to streamline WiFi deployment planning, delivery testing as well as operation diagnosis. With WIS you can:

  • Cloud site survey for deployment planning
  • Smart mobile APPS for provisioning
  • Visualize the user experience
  • One-click WiFi optimization
  • and it is FREE!

Ruijie MOHO App for WiFi Testing

As part of the Ruijie WIS solution, Ruijie MOHO is a mobile app designed to carry out WiFi testing from your fingertips. Comprehensive testing tools like collaborative test, speed test, multi-point test and etc. are available for in Ruijie MOHO app that freely download from IOS APP Store & Google Play.

Virtual AP Enhancing Network Security

In most of the enterprise today, providing a Guest WiFi to visitor is an essential. However, Guest WiFi might become another entry point for network intrusion either it is intended or not. Ruijie RG-AP720L Kenya virtualization technology allows to virtualize a physical AP into multiple virtual AP to handle different services. Different VAP can connect to different AC to ensure the only authorized user access to right resource.

With VAP, you can now enjoy from its benefit of:

  • Resource isolation
  • Flexible authentication
  • Minimize RF interference
  • Cost effective & secured

Benefit from the dual GE uplink design of Ruijie RG-AP720L Kenya, two different CAPWAP tunnel separating employee WiFi and guest WiFi traffic into two different physical uplinks further enhanced the security.

Virtual AC Technology

Ruijie Network AC Virtualization technology help to virtualize multiple AC into single logical AC regardless of module or appliance-based AC. It supports up to 8 members of hardware AC in single high availability cluster. AP license is shared from the license pool regardless of the number of AC in the cluster. With the centralized management and distributed processing capability, it increases the scalability and resilience of entire Wireless Network. Simplified management streamline the IT operation as well.

PPSK Authentication

Traditional Pre-shared keys (PSK) are shared by all users on a WLAN, giving it potential risk of PSK leak-out. Ruijie Per-user PSK (PPSK) is an easy setup wireless authentication method with enterprise grade security level. Credentials can be created and revoked individually. Each PPSK can also be tied to a unique user/machine.

With PPSK, you can enjoy its benefit of:

  • High security by using different passwords for each user and device at individual SSID
  • Simple deployment, allow for batch account creation
  • Ease of use and offers the same experience as WPA / WPA2-PSK
  • Out-of-box feature in AC controller
  • No additional AAA required

Bluetooth iBeacon Application

The Ruijie RG-AP720L Kenya comes with built-in BT4.0 module, brings revolutionary changes to LBS marketing through iBeacon. iBeacon, first developed by Apple and later widely supported by other mobile devices, is a protocol leveraging Bluetooth low-energy (BLE) wireless technology to provide location-based information and services.
Gearing up with this BT 4.0 integration, the AP becomes a powerful O2O marketing tool, enabling customers to get exclusive offers from nearby shops, view details on mobile when they are close to a featured product, get alerts on what’s in-store next and many more.

Specifications

Model RG-AP720-I
Target Deployments For campuses, offices, hospitals, and hotspots of service providers
Basic Specifications Radio Concurrent dual-radio dual-band
Protocol 802.11a/b/g/n/ac
Wave 2
Operating Bands 802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
Antenna Built-in Smart Antenna
2×2 MU-MIMO
Max Throughput 400Mbps@2.4GHz
867Mbps@5GHz
1267Mbps per AP
 Spatial Streams 2
Modulation OFDM: BPSK@6/9Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mbps
DSSS:
DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5/11Mbps
MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receiver Sensitivity
  • 11b :-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)
  • 11a/g :-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)
  • 11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15
  • 11ac HT20 :-83dBm(MCS0), -57dBm(MCS9)
  • 11ac HT40 :-79dBm(MCS0), -57dBm(MCS9)
  • 11ac HT80 :-76dBm(MCS0), -51dBm(MCS9)
IP Rating IP41
Ports Service Port 2 10/100/1000BASE-T Ethernet ports (LAN1 port supports PoE & Uplink) 1 USB port
Management Port 1 console port
Power Power Supply Local power supply (DC 48V) and PoE+ (802.3af/at)
(DC Power adapters should be purchased from third-party vendors separately if needed.)
Adjustable Power 1dBm
Maximum Transmit Power 100mw
Maximum clients per AP Up to 256
BSSID capacity
  • Up to 16 per AP
  • Up to 32 per AP
WLAN SSID hiding Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
X-speed Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based speed control
Preference for 5GHz (band select) Support
Wireless position tracking Support
Dynamic Frequency Selection(DFS) Future Release Support
Security PSK, Web, and 802.1x authentication Support
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
SMS authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
Bluetooth iBeacon Support
Routing IPv4 address Static IP address or DHCP reservation
IPv6 CAPWAP tunnel Support
ICMPv6 Support
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
One-click Optimization Support
(need to integrate with WIS)
Fault detection and alarm Support
Cloud AC management Support
Statistics and logs Support
FAT/FIT switching The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
Lock Support
External Characteristics LED Indicators 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode)
Wi-Fi Alliance Certification Support
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard GB9254, EN301 489
Health Standard EN 62311
Relevant Standard Wi-Fi Alliance Certification Support
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard GB9254, EN301 489
Health Standard EN 62311
Radio Standard EN300 328, EN301 893
Vibration Standard
  • IEC60068 2-31, ETSI EN300 019,
  • NEBS GR-63-CORE
Specifications Weight 0.37kg
Dimensions (W x D x H) (mm) 180 × 180 × 20
(Height of AP only, excluding case and mount kit)
Work Environment Temperature
  • Operating Temperature : -10°C to 50°C
  • Storage Temperature : -40°C to 70°C
Humidity
  • Operating Humidity : 5% to 95% (non-condensing)
  • Storage Humidity : 5% to 95% (non-condensing)
Installation Mode Ceiling/wall-mountable
