Ruijie RG-RAP2200E Kenya



Ruijie RG-RAP2200E Kenya

Ruijie Reyee RG-RAP2200E Kenya is a dual-band ceiling mount AP featuring a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200E supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.

Description

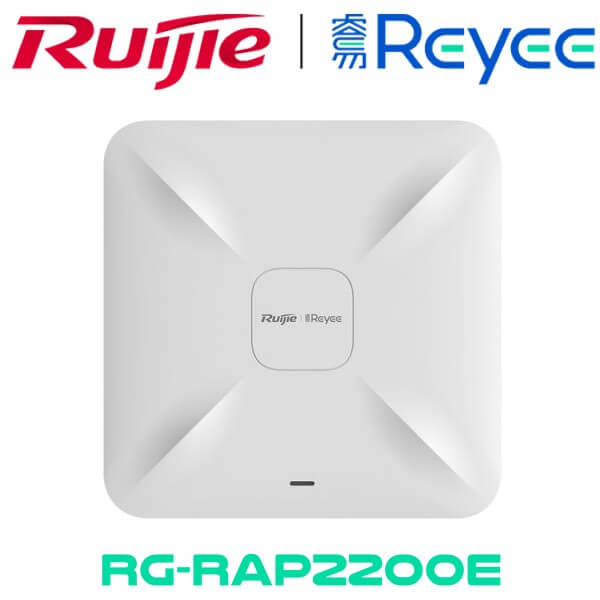

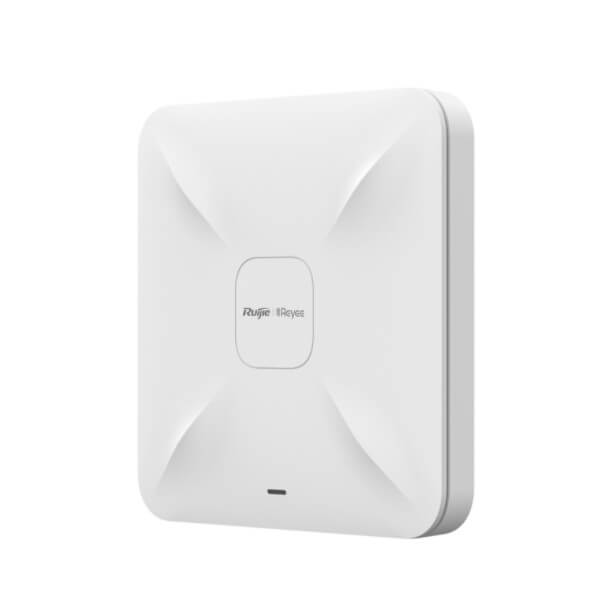

Ruijie Reyee RG-RAP2200E Access Point Kenya

Ruijie Reyee RG-RAP2200E Kenya is a dual-band ceiling mount AP featuring a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200E supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Ruijie Reyee RG-RAP2200E Kenya supports Ruijie’s self-organizing Network feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction

Ruijie Reyee RG-RAP2200E Kenya boasts of industrial product design, iconic edges and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device.

ruijie rg rap2200e kenya

ruijie rg rap2200e kenya

Ruijie Reyee RG-RAP2200E Kenya supports Ruijie’s self-developed smart networking feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. Users can perform comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

Features

  • 802. 11ac Wave2 technology
  • Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • More LAN Port: Two LAN interfaces are provided to support more services;
  • Seamless layer 3 roaming
  • Industrial Design: Robust casing, Provide better strength and safety for products;
  • High-speed dual-band Wi-Fi
  • Dual LAN ports design
  • Support routing and AP mode
  • Support Layer 3 networking
  • Stronger and more stable signals
  • Robust casing
  • Multi-end management
  • Al & big data network optimization
ruijie rg rap2200e nairobi

ruijie rg rap2200e nairobi

Specifications

Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands 802.11b/g/n :2.4G ~ 2.4835GHz
802.11a/n/ac : 5G:5.150~5.350GHz,5.725~5.850GHz
Antenna Array antennas(2.4G: 2dBi,5G: 2dBi)
Spatial Streams 2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput
  • Up to 400Mbps at 2.4G
  • Up to 867Mbps at 5G
  • 1.267Gbp per AP
Modulation
  • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b : -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
  • 11a/g : -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
  • 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
  • 11ac HT20 : -83dBm (MCS0), -57dBm (MCS9)
  • 11ac HT40 : -79dBm (MCS0), -57dBm (MCS9)
  • 11ac HT80 : -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power
  • 5.725~5.850GHz:≤20dBm (EIRP)
  • 5.150~5.350GHz:≤20dBm (EIRP)
  • 2.4~2.4835GHz:≤20dBm (EIRP)
Adjustable Power 1dBm
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.45kg (excluding mounting kits)

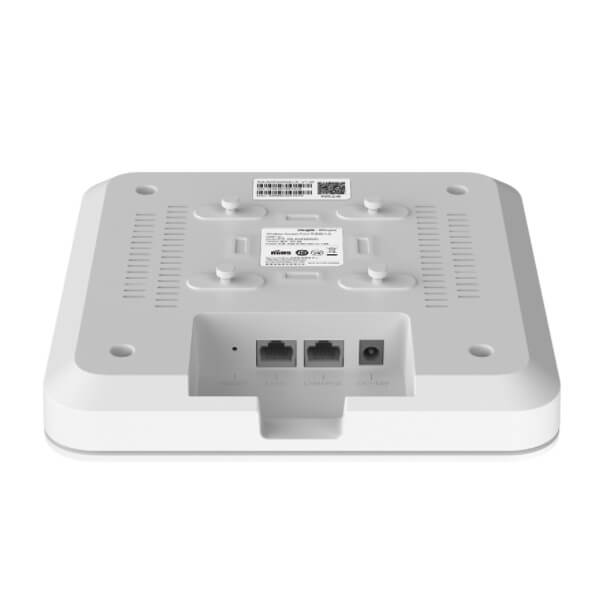

Service Ports 2 10/100/1000Base-T Ethernet ports,
PoE/LAN1 port supports PoE
Management Port NA
Power Supply Power Supply Single indicator (green light)
Power Consumption Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Environment
  • ≤ 12.95W
  • Operating temperature: 0°C~40°C
  • Storage temperature: -40°C~70°C
  • Operating humidity: 5%~95%(non-condensing)
Software Features
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 110
  • Recommended number of clients : 40 (8 at 2.4GHz, 32 at 5GHz)
  • Up to 8 SSIDs
  • Support SSID hiding
  • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
  • SSID-based and radio-based STA limit
  • Support Layer 2 user isolation
Installation Storage humidity: 5%~95%(non-condensing)
Safety Standard GB4943, IEC 60950-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard SRRC certification, EN300 328, EN301 893
MTBF >400000H
Roaming Support Layer 2 and Layer 3 roaming
Security
  • Support PSK authentication
  • Support static blacklist and whitelist
  • Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
  • Support unified networking of all network equipment
  • Support local or remote management with Ruijie Cloud app
  • Support local management with web
  • Support remote management with Ruijie Cloud platform
Platform management features
  • Automatic RF adjustment via the platform
  • Unified configuration via the platform
  • Unified monitoring via the platform
