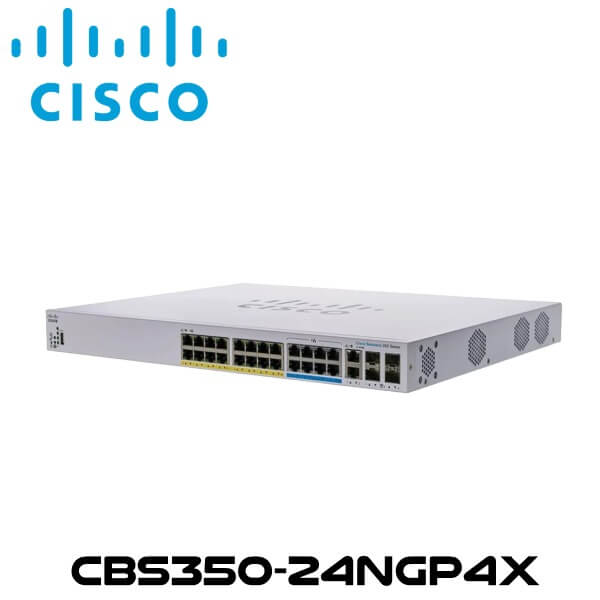

Cisco CBS350-24NGP4X Kenya



Cisco CBS350-24NGP4X Kenya

The Cisco CBS350-24NGP4X Kenya supports connected high-bandwidth power over Ethernet devices featuring 24-Port Multi-Gig PoE++ Compliant Managed Network Switch from Cisco.

Category:

Description

Cisco CBS350-24NGP4X Network Switch Kenya

The Cisco CBS350-24NGP4X Kenya supports connected high-bandwidth power over Ethernet devices featuring 24-Port Multi-Gig PoE++ Compliant Managed Network Switch from Cisco. This versatile managed rackmount switch features sixteen 30W PoE+ Gigabit Ethernet ports in addition to eight 60W 5G ports that work with compatible wired devices such as advanced security cameras, network attached storage, and more. There are also two 10G SFP+ and two fiber SFP+ / copper RJ45 combo ports available for high-speed uplinks. The Cisco CBS350-24NGP4X Kenya boasts of extensive Layer 2 and Layer 3 features including secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices.  Also the Cisco CBS350-24NGP4X Kenya has 192 Gb/s switching capacity and 142.85 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24NGP4X Kenya and its connected devices. The three fan design helps to maintain optimal temperatures while the switch operates quietly in the background.

Features

Reliable Performance

The Cisco CBS350-24NGP4X Kenya switch is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 140 Gb/s switching capacity and 104.16 Mpps forwarding rate.

Power over Ethernet

The Cisco CBS350-24NGP4X Kenya switch has a 370W power budget to operate advanced surveillance cameras, videophones, thin client devices, and more. The twenty PoE+ ports support up to 30W of power each while the four PoE++ ports support up to 60W

Extensive Security

  • The Cisco CBS350-24NGP4X Kenya has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
  • Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
  • The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-24NGP4X Kenya switch allows you to evolve your network using the IPv6 standard while remaining compatible with previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS350-24NGP4X Kenya can fit into most wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
  • 8 x 5 Gb/s Ethernet (RJ45) PoE (Type 3)
  • 2 x 10Gb SFP+
  • 2 x 10Gb Combo (Ethernet/SFP)
  • 1 x Ethernet (RJ45) (Console)
  • 1 x USB Type-A (Console)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Multicast Groups 2000
VLAN IDs 4094
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 1024
IP Interfaces 128
Static Routes 990
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3bt, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 142.85 Mpps
Switching Bandwidth 192 Gb/s
Priority Queues 8
Packet Buffer 3 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 488.9 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 375 W
PoE per Port 30 to 60 W
Power Supply Type Internal
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
Noise Level 40.4 dB
General
Cooling System Fan
Mean Time Between Failures (MTBF) 562,415 Hours
Indicator Lights Link/Activity, Speed, System
Rack Form Factor 1 RU
Dimensions 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm
Weight 11.7 lb / 5.3 kg
