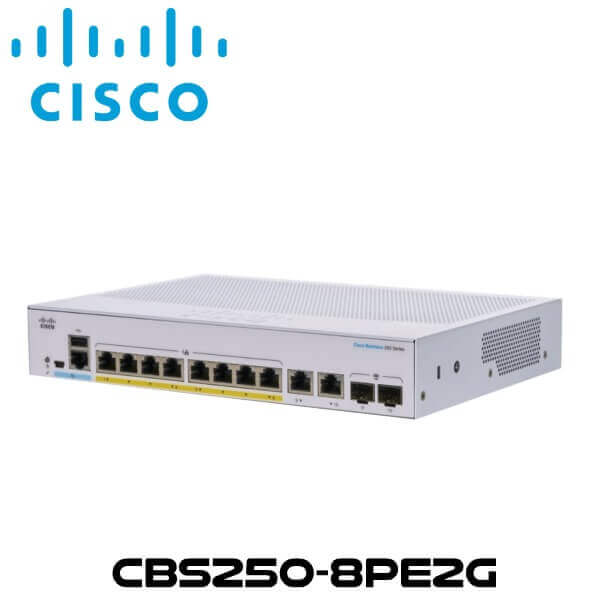

The Cisco CBS250-8PE2G Kenya is the next generation of affordable smart switch that combine powerful performance and reliability with a complete suite of the features you need for a solid business network.

Category:

Description

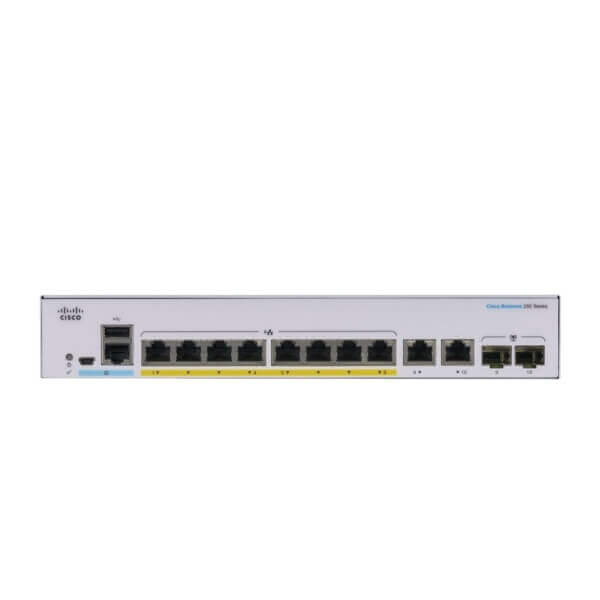

Cisco CBS250-8PE2G Network Switch Kenya

The Cisco CBS250-8PE2G Kenya is the next generation of affordable smart switch that combine powerful performance and reliability with a complete suite of the features you need for a solid business network. Managed through Cisco Business mobile app or dashboard, the Cisco CBS250-8PE2G Kenya provides a simple and reliable experience. This Switch provides flexible management options, comprehensive security capabilities and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, Cisco Business 250 Series Smart Cisco CBS250-8PE2G Kenya provides the ideal solution at an affordable pricing point.

Features

High-speed desktop connectivity

Cisco CBS250-8PE2G Kenya quickly and securely connect employees working in small offices with one another and with all of the printers, servers, and other networking devices. High performance and reliable connectivity help speed up file transfers and data processing, improve network uptime, and keep your employees productive.

Flexible wireless connectivity

Cisco Business 250 Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. With security features, Power over Ethernet Plus (PoE+), Virtual Local Area Network (VLAN), and QoS, these switches are the perfect foundation to add enterprise-grade wireless solutions to a network. The capability of up to 30W of power per port provided through the Ethernet cable means you can easily deploy Cisco Business Wireless access points to maximize workforce productivity.

Unified communications

The Cisco CBS250-8PE2G Kenya provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions such as IP telephony and video surveillance onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 250 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Easy configuration and management

Cisco CBS250-8PE2G Kenya is designed to be easy to deploy and use by small businesses or the partners that serve them:

  • Cisco CBS250-8PE2G Kenya has Cisco Business Dashboard is designed to manage Cisco Business switches, routers, and wireless access points. It lets you easily customize the interface and widgets to proactively manage your network. Cisco CBS250-8PE2G Kenya supports embedded probe for Cisco Business Dashboard, eliminating the need to set up a separate hardware or virtual machine on site.
  • The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
  • The redesigned modern web user interfaces reduce the time required to deploy, troubleshoot, and manage the network. Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to set up and manage the network.

Reliability and performance

Cisco Business 250 Series switches have been tested to deliver the high performance and reliability you would expect from a Cisco switch and help you prevent costly downtime. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on Cisco Business 250 Series switches, you can address all of your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure. Cisco Business 250 Series switches also support 10 Gigabit Ethernet uplinks on select models, so you can build a high-performance and future-ready network to support your thriving business.

Layer 3 static routing

This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.

Power over Ethernet (PoE)

Cisco CBS250-8PE2G Kenya is available with PoE+ on Gigabit Ethernet models. This capability enables the deployment of IP telephony, wireless, video surveillance, and other solutions with just a single network cable, thereby eliminating the need for separate power supplies or cabling. PoE+ provides up to 30W of power per port, ideal for deployments of 802.11ac wireless access points, Pan-Tilt-Zoom (PTZ) IP cameras, videophones, and thin client devices, delivering more flexibility and investment protection.

Network security

Cisco CBS250-8PE2G Kenya provides the security and network management features you need to maintain a high level of security for your business, keep unauthorized users off the network, and protect your business data. The switches include integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network, Denial-of-Service (DoS) attack prevention to increase network uptime during an attack, and extensive Access Control Lists (ACLs) to protect sensitive portions of the network from unauthorized users and guard against network attacks.

Flexible and compact design

The sleek and compact design provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.

An energy-efficient solution

Cisco CBS250-8PE2G Kenya is designed to be energy efficient and eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:

  • Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
  • Automatic power shutoff on ports when a link is down
  • Fan-less design in most models, which reduces power consumption, increases reliability, and provides quieter operation

Peace of mind and investment protection

Cisco CBS250-8PE2G Kenya offers the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. Complementary one-year access to our Small Business Support Center for ongoing support. Limited lifetime warranty with return to factory replacement keeps your business running smoothly

Specifications

Feature Description
Performance
Switching capacity and forwarding rate

All switches are wire-speed and non-blocking

Model Capacity in millions of packets per second (mpps) (64-byte packets) Switching capacity in gigabits per second (Gbps)
CBS250-8T-D 11.90 16.0
CBS250-8PP-D 11.90 16.0
CBS250-8TE2G 14.88 20.0
CBS250-8PP-E-2G 14.88 20.0
CBS250-8PE2G 14.88 20.0
CBS250-8FP-E-2G 14.88 20.0
CBS250-16T-2G 26.78 36.0
CBS250-16P-2G 26.78 36.0
CBS250-24T-4G 41.66 56.0
CBS250-24PP-4G 41.66 56.0
CBS250-24P-4G 41.66 56.0
CBS250-24FP-4G 41.66 56.0
CBS250-48T-4G 77.38 104.0
CBS250-48PP-4G 77.38 104.0
CBS250-48P-4G 77.38 104.0
CBS250-24T-4X 95.23 128.0
CBS250-24P-4X 95.23 128.0
CBS250-24FP-4X 95.23 128.0
CBS250-48T-4X 130.94 176.0
CBS250-48P-4X 130.94 176.0
Layer 2 switching
Spanning Tree Protocol (STP)
  • Standard 802.1d spanning tree support
  • Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default
  • Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
  • Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
  • Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation
  • Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Up to 4 groups
  • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
VLAN
  • Support for up to 255 active VLANs simultaneously
  • Port-based and 802.1Q tag-based VLANs
  • Management VLAN
  • Guest VLAN
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain
IGMP (versions 1, 2, and 3) snooping Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
HOL blocking Head-of-Line (HOL) blocking prevention
Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.
Layer 3 routing
IPv4 routing
  • Wire-speed routing of IPv4 packets
  • Up to 32 static routes and up to 16 IP interfaces
IPv6 routing Wire-speed routing of IPv6 packets
Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR) Support for CIDR
Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
Security
Secure Sockets Layer (SSL) SSL encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
IEEE 802.1X (authenticator role) Remote Authentication Dial-In User Service (RADIUS) authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user
Trustworthy systems
  • Trustworthy systems provide a highly secure foundation for Cisco products
  • Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
RADIUS Supports RADIUS authentication for management access. Switch functions as a client.
Storm control Broadcast, multicast, and unknown unicast
DoS prevention Denial-of-Service (DoS) attack prevention
Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
Access Control Lists (ACLs)
  • Support for up to 512 rules
  • Drop or rate limit based on source and destination MAC, VLAN ID or IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
  • Time-based ACLs supported
Quality of service
Priority levels 8 hardware queues
Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate limiting Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
IPv6
IPv6
  • IPv6 host mode
  • IPv6 over Ethernet
  • Dual IPv6/IPv4 stack
  • IPv6 Neighbor Discovery (ND)
  • IPv6 stateless address auto configuration
  • Path Maximum Transmission Unit (MTU) discovery
  • Duplicate Address Detection (DAD)
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
  • USGv6 and IPv6 Gold Logo certified
IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or rate limit IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), Remote Authentication Dial-In User Service (RADIUS), Syslog, DNS client, DHCP client, DHCP autoconfig
IPv6 RFCs supported
  • RFC 4443 (which obsoletes RFC 2463) : ICMPv6
  • RFC 4291 (which obsoletes RFC 3513) : IPv6 address architecture
  • RFC 4291 : IPv6 Addressing Architecture
  • RFC 2460 : IPv6 Specification
  • RFC 4861 (which obsoletes RFC 2461) : Neighbor Discovery for IPv6
  • RFC 4862 (which obsoletes RFC 2462) : IPv6 Stateless Address Autoconfiguration
  • RFC 1981 : Path MTU Discovery
  • RFC 4007 : IPv6 Scoped Address Architecture
  • RFC 3484 : Default address selection mechanism
  • RFC 5214 (which obsoletes RFC 4214) : ISATAP tunneling
  • RFC 4293 : Management Information Base (MIB) IPv6 : Textual Conventions and General Group
  • RFC 3595 : Textual Conventions for IPv6 Flow Label
Management
Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site.
Cisco Business mobile app Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
Cisco Network Plug and Play (PnP) agent
  • The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
  • Supports Cisco PnP Connect
Web user interface
  • Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
  • Basic and advanced mode for maximum operational efficiency
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)
Standard MIBs
  • lldp-MIB
  • lldpextdot1-MIB
  • lldpextdot3-MIB
  • lldpextmed-MIB
  • rfc2674-MIB
  • rfc2575-MIB
  • rfc2573-MIB
  • rfc2233-MIB
  • rfc2013-MIB
  • rfc2012-MIB
  • rfc2011-MIB
  • RFC-1212
  • RFC-1215
  • SNMPv2-CONF
  • SNMPv2-TC
  • p-bridge-MIB
  • q-bridge-MIB
  • rfc1389-MIB
  • rfc1493-MIB
  • rfc1611-MIB
  • rfc1612-MIB
  • rfc1850-MIB
  • rfc1907-MIB
  • rfc2571-MIB
  • rfc2572-MIB
  • rfc2574-MIB
  • rfc2576-MIB
  • rfc2613-MIB
  • rfc2665-MIB
  • rfc2668-MIB
  • rfc2737-MIB
  • rfc2925-MIB
  • rfc3621-MIB
  • rfc4668-MIB
  • rfc4670-MIB
  • trunk-MIB
  • tunnel-MIB
  • udp-MIB
  • draft-ietf-bridge-8021x-MIB
  • draft-ietf-bridge-rstpmib-04-MIB
  • draft-ietf-hubmib-etherif-mib-v3-00-MIB
  • draft-ietf-syslog-device-MIB
  • ianaaddrfamnumbers-MIB
  • ianaifty-MIB
  • ianaprot-MIB
  • inet-address-MIB
  • ip-forward-MIB
  • ip-MIB
  • RFC1155-SMI
  • RFC1213-MIB
  • SNMPv2-MIB
  • SNMPv2-SMI
  • SNMPv2-TM
  • RMON-MIB
  • rfc1724-MIB
  • dcb-raj-DCBX-MIB-1108-MIB
  • rfc1213-MIB
  • rfc1757-MIB
Private MIBs
  • CISCOSB-lldp-MIB
  • CISCOSB-brgmulticast-MIB
  • CISCOSB-bridgemibobjects-MIB
  • CISCOSB-bonjour-MIB
  • CISCOSB-dhcpcl-MIB
  • CISCOSB-MIB
  • CISCOSB-wrandomtaildrop-MIB
  • CISCOSB-traceroute-MIB
  • CISCOSB-telnet-MIB
  • CISCOSB-stormctrl-MIB
  • CISCOSBssh-MIB
  • CISCOSB-socket-MIB
  • CISCOSB-sntp-MIB
  • CISCOSB-smon-MIB
  • CISCOSB-phy-MIB
  • CISCOSB-multisessionterminal-MIB
  • CISCOSB-mri-MIB
  • CISCOSB-jumboframes-MIB
  • CISCOSB-gvrp-MIB
  • CISCOSB-endofmib-MIB
  • CISCOSB-dot1x-MIB
  • CISCOSB-deviceparams-MIB
  • CISCOSB-cli-MIB
  • CISCOSB-cdb-MIB
  • CISCOSB-brgmacswitch-MIB
  • CISCOSB-3sw2swtables-MIB
  • CISCOSB-smartPorts-MIB
  • CISCOSB-tbi-MIB
  • CISCOSB-macbaseprio-MIB
  • CISCOSB-env_mib-MIB
  • CISCOSB-policy-MIB
  • CISCOSB-sensor-MIB
  • CISCOSB-aaa-MIB
  • CISCOSB-application-MIB
  • CISCOSB-bridgesecurity-MIB
  • CISCOSB-copy-MIB
  • CISCOSB-CpuCounters-MIB
  • CISCOSB-Custom1BonjourService-MIB
  • CISCOSB-dhcp-MIB
  • CISCOSB-dlf-MIB
  • CISCOSB-dnscl-MIB
  • CISCOSB-embweb-MIB
  • CISCOSB-fft-MIB
  • CISCOSB-file-MIB
  • CISCOSB-greeneth-MIB
  • CISCOSB-interfaces-MIB
  • CISCOSB-interfaces_recovery-MIB
  • CISCOSB-ip-MIB
  • CISCOSB-iprouter-MIB
  • CISCOSB-ipv6-MIB
  • CISCOSB-mnginf-MIB
  • CISCOSB-lcli-MIB
  • CISCOSB-localization-MIB
  • CISCOSB-mcmngr-MIB
  • CISCOSB-mng-MIB
  • CISCOSB-physdescription-MIB
  • CISCOSB-PoE-MIB
  • CISCOSB-protectedport-MIB
  • CISCOSB-rmon-MIB
  • CISCOSB-rs232-MIB
  • CISCOSB-SecuritySuite-MIB
  • CISCOSB-snmp-MIB
  • CISCOSB-specialbpdu-MIB
  • CISCOSB-banner-MIB
  • CISCOSB-syslog-MIB
  • CISCOSB-TcpSession-MIB
  • CISCOSB-traps-MIB
  • CISCOSB-trunk-MIB
  • CISCOSB-tuning-MIB
  • CISCOSB-tunnel-MIB
  • CISCOSB-udp-MIB
  • CISCOSB-vlan-MIB
  • CISCOSB-ipstdacl-MIB
  • CISCOSB-eee-MIB
  • CISCOSB-ssl-MIB
  • CISCOSB-qosclimib-MIB
  • CISCOSB-digitalkeymanage-MIB
  • CISCOSB-tbp-MIB
  • CISCOSMB-MIB
  • CISCOSB-secsd-MIB
  • CISCOSB-draft-ietf-entmib-sensor-MIB
  • CISCOSB-draft-ietf-syslog-device-MIB
  • CISCOSB-rfc2925-MIB
  • CISCO-SMI-MIB
  • CISCOSB-DebugCapabilities-MIB
  • CISCOSB-CDP-MIB
  • CISCOSB-vlanVoice-MIB
  • CISCOSB-EVENTS-MIB
  • CISCOSB-sysmng-MIB
  • CISCOSB-sct-MIB
  • CISCO-TC-MIB
  • CISCO-VTP-MIB
  • CISCO-CDP-MIB
Remote monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
Firmware upgrade Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH

Dual images for resilient firmware upgrades

Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port
Dynamic Host Configuration Protocol (DHCP) (options 12, 59, 60, 66, 67, 125, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server), to obtain IP address, autoconfiguration (with configuration and image file download), DHCP Relay, and host name
Secure Copy (SCP) Securely transfers files to and from the switch
Autoconfiguration with SCP file download Enables mass deployment with protection of sensitive data
Text-editable configs Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports Simplified configuration of QoS and security capabilities
Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments.
Text view Command-Line Interface (CLI) Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI.
Localization Localization of GUI and documentation into multiple languages
Login banner Configurable multiple banners for web as well as CLI
Other management Traceroute; single IP management; HTTP/HTTPS; RADIUS; port mirroring; TFTP upgrade; DHCP client; Simple Network Time Protocol (SNTP); cable diagnostics; Ping; syslog; Telnet client (SSH secure support); automatic time settings from Management Station
Green (power efficiency)
Energy detect Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up
Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables
EEE compliant (802.3az) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs LEDs can be manually turned off to save on energy
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 8K addresses
Discovery
Bonjour The switch advertises itself using the Bonjour protocol
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol
Power over Ethernet (PoE)
802.3at PoE+ and 802.3af PoE delivered over any of the RJ-45 ports within the listed power budgets The following switches support 802.3at PoE+, 802.3af, and Cisco prestandard (legacy) PoE. Maximum power of 30.0W to any 10/100 or Gigabit Ethernet port, until the PoE budget for the switch is reached. The total power available for PoE per switch is as follows :
Model Power dedicated to PoE Number of ports that support PoE
CBS250-8PP-D 45W 8
CBS250-8PP-E-2G 45W 8
CBS250-8PE2G 60W 8
CBS250-8FP-E-2G 120W 8
CBS250-16P-2G 120W 16
CBS250-24PP-4G 100W 24
CBS250-24P-4G 195W 24
CBS250-24FP-4G 370W 24
CBS250-48PP-4G 195W 48
CBS250-48P-4G 370W 48
CBS250-24P-4X 195W 24
CBS250-24FP-4X 370W 24
CBS250-48P-4X 370W 48
PoE Powered Device (PD)
  • Select compact switch models can work as PoE Powered Device (PD) and be powered by upstream PoE switches.
  • When AC power is connected and functioning correctly, it is preferred over PoE power. The PoE power can function as a backup to the AC power source or be used as the sole power source for the switch.
Model Power option
CBS250-8T-D 1 x PoE input (802.3af) on port 1 or AC power
Hardware
Power consumption (worst case) Model System power consumption Power consumption (with PoE) Heat dissipation (BTU/hr)
CBS250-8T-D 110V=7.6W

220V=7.6W

N/A 25.93
CBS250-8PP-D 110V=9.1W

220V=10.1W

110V=61.4W

220V=59.8W

209.51
CBS250-8TE2G 110V=12.55W

220V=12.56W

N/A 42.86
CBS250-8PP-E-2G 110V=14.34W

220V=14.47W

110V=65.29W

220V=66.02W

222.79
CBS250-8PE2G 110V=13.84W

220V=14.31W

110V=80.79W

220V=80.86W

275.91
CBS250-8FP-E-2G 110V=17.07W

220V=16.68W

110V=147.48W

220V=145.26W

503.22
CBS250-16T-2G 110V=18.63W

220V=18.37W

N/A 64.46
CBS250-16P-2G 110V=24.51W

220V=25.01W

110V=156.4W

220V=154.5W

536.05
CBS250-24T-4G 110V=25.91W

220V=25.63W

N/A 89.13
CBS250-24PP-4G 110V=34.4W

220V=33.11W

110V=138.9W

220V=138.1W

476.68
CBS250-24P-4G 110V=34.42W

220V=33.09W

110V=239.7W

220V=236.4W

820.28
CBS250-24FP-4G 110V=46.60W

220V=46.35W

110V=449.7W

220V=438.3W

1,536.83
CBS250-48T-4G 110V=48.27W

220V=48.64W

N/A 165.96
CBS250-48PP-4G 110V=68.68W

220V=67.18W

110V=276.75W

220V=270.58W

944.31
CBS250-48P-4G 110V=60.77W

220V=59.73W

110V=451.95W

220V=445.85W

1,542.12
CBS250-24T-4X 110V=27.54W

220V=27.25W

N/A 93.32
CBS250-24P-4X 110V=35.72W

220V=34.53W

110V=240.4W

220V=236.9W

822.67
CBS250-24FP-4X 110V=47.14W

220V=47.01W

110V=451.8W

220V=437.4W

1,543.99
CBS250-48T-4X 110V=51.01W

220V=50.58W

N/A 174.06
CBS250-48P-4X 110V=61.53W

220V=60.73W

110V=471.90W

220V=463.32W

1,610.19
Ports Model name Total system ports RJ-45 ports Combo ports (RJ-45 + SFP)
CBS250-8T-D 8 Gigabit Ethernet 8 Gigabit Ethernet –
CBS250-8PP-D 8 Gigabit Ethernet 8 Gigabit Ethernet –
CBS250-8TE2G 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
CBS250-8PP-E-2G 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
CBS250-8PE2G 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
CBS250-8FP-E-2G 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
CBS250-16T-2G 18 Gigabit Ethernet 16 Gigabit Ethernet 2 Small Form-Factor Pluggable (SFP)
CBS250-16P-2G 18 Gigabit Ethernet 16 Gigabit Ethernet 2 SFP
CBS250-24T-4G 28 Gigabit Ethernet 24 Gigabit Ethernet 4 SFP
CBS250-24PP-4G 28 Gigabit Ethernet 24 Gigabit Ethernet 4 SFP
CBS250-24P-4G 28 Gigabit Ethernet 24 Gigabit Ethernet 4 SFP
CBS250-24FP-4G 28 Gigabit Ethernet 24 Gigabit Ethernet 4 SFP
CBS250-48T-4G 52 Gigabit Ethernet 48 Gigabit Ethernet 4 SFP
CBS250-48PP-4G 52 Gigabit Ethernet 48 Gigabit Ethernet 4 SFP
CBS250-48P-4G 52 Gigabit Ethernet 48 Gigabit Ethernet 4 SFP
CBS250-24T-4X 24 Gigabit Ethernet +
4 10 Gigabit Ethernet
24 Gigabit Ethernet 4 SFP+
CBS250-24P-4X 24 Gigabit Ethernet +
4 10 Gigabit Ethernet
24 Gigabit Ethernet 4 SFP+
CBS250-24FP-4X 24 Gigabit Ethernet +
4 10 Gigabit Ethernet
24 Gigabit Ethernet 4 SFP+
CBS250-48T-4X 48 Gigabit Ethernet +
4 10 Gigabit Ethernet
48 Gigabit Ethernet 4 SFP+
CBS250-48P-4X 48 Gigabit Ethernet +
4 10 Gigabit Ethernet
48 Gigabit Ethernet 4 SFP+
Console port Cisco Standard mini USB Type-B/RJ45 console port*

*Not available on CBS250-8T-D and CBS250-8PP-D

USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Packet buffer All numbers are aggregate across all ports because the buffers are dynamically shared :
Model name Packet buffer
CBS250-8T-D 1.5 MB
CBS250-8PP-D 1.5 MB
CBS250-8TE2G 1.5 MB
CBS250-8PP-E-2G 1.5 MB
CBS250-8PE2G 1.5 MB
CBS250-8FP-E-2G 1.5 MB
CBS250-16T-2G 1.5 MB
CBS250-16P-2G 1.5 MB
CBS250-24T-4G 1.5 MB
CBS250-24PP-4G 1.5 MB
CBS250-24P-4G 1.5 MB
CBS250-24FP-4G 1.5 MB
CBS250-48T-4G 3 MB
CBS250-48PP-4G 3 MB
CBS250-48P-4G 3 MB
CBS250-24T-4X 1.5 MB
CBS250-24P-4X 1.5 MB
CBS250-24FP-4X 1.5 MB
CBS250-48T-4X 3 MB
CBS250-48P-4X 3 MB
Supported SFP/SFP+ modules SKU Media Speed Maximum distance
MGBSX1 Multimode fiber 1000 Mbps 500 m
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBT1 UTP cat 5e 1000 Mbps 100 m
GLC-SX-MMD Multimode fiber 1000 Mbps 550 m
GLC-LH-SMD Single-mode fiber 1000 Mbps 10 km
GLC-BX-U Single-mode fiber 1000 Mbps 10 km
GLC-BX-D Single-mode fiber 1000 Mbps 10 km
GLC-TE UTP cat 5e 1000 Mbps 100 m
SFP-H10GB-CU1M Copper coax 10 Gig 1 m
SFP-H10GB-CU3M Copper coax 10 Gig 3 m
SFP-H10GB-CU5M Copper coax 10 Gig 5 m
SFP-10G-SR Multimode fiber 10 Gig 26 m – 400 m
SFP-10G-LR Single-mode fiber 10 Gig 10 km
SFP-10G-SR-S Multimode fiber 10 Gig 26 m – 400 m
SFP-10G-LR-S Single-mode fiber 10 Gig 10 km
Environmental
Unit dimensions
(W x D x H)
Model name Unit dimensions
CBS250-8T-D 160 x 128 x 30 mm (6.3 x 5.04 x 1.18 in)
CBS250-8PP-D 160 x 128 x 30 mm (6.3 x 5.04 x 1.18 in)
CBS250-8TE2G 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
CBS250-8PP-E-2G 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
CBS250-8PE2G 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
CBS250-8FP-E-2G 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
CBS250-16T-2G 268 x 272 x 44 mm (10.56 x 10.69 x 1.73 in)
CBS250-16P-2G 268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in)
CBS250-24T-4G 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
CBS250-24PP-4G 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
CBS250-24P-4G 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
CBS250-24FP-4G 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in)
CBS250-48T-4G 445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in)
CBS250-48PP-4G 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
CBS250-48P-4G 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
CBS250-24T-4X 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
CBS250-24P-4X 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
CBS250-24FP-4X 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in)
CBS250-48T-4X 445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in)
CBS250-48P-4X 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight Model name Unit weight
CBS250-8T-D 0.54 kg (1.19 lb)
CBS250-8PP-D 0.56 kg (1.23 lb)
CBS250-8TE2G 1.39 kg (3.06 lb)
CBS250-8PP-E-2G 1.53 kg (3.37 lb)
CBS250-8PE2G 1.53 kg (3.37 lb)
CBS250-8FP-E-2G 1.53 kg (3.37 lb)
CBS250-16T-2G 1.78 kg (3.92 lb)
CBS250-16P-2G 2.38 kg (5.25 lb)
CBS250-24T-4G 2.63 kg (5.80 lb)
CBS250-24PP-4G 3.53 kg (7.78 lb)
CBS250-24P-4G 3.53 kg (7.78 lb)
CBS250-24FP-4G 4.6 kg (10.14 lb)
CBS250-48T-4G 3.95 kg (8.71 lb)
CBS250-48PP-4G 5.43 kg (11.97 lb)
CBS250-48P-4G 5.43 kg (11.97 lb)
CBS250-24T-4X 2.78 kg (6.13 lb)
CBS250-24P-4X 3.68 kg (8.11 lb)
CBS250-24FP-4X 4.6 kg (10.14 lb)
CBS250-48T-4X 3.95 kg (8.71 lb)
CBS250-48P-4X 5.43 kg (11.97 lb)
Power
  • 100 to 240V 50 to 60 Hz, internal, universal : CBS250-16T-2G, CBS250-16P-2G, CBS250-24T-4G, CBS250-24PP-4G, CBS250-24P-4G, CBS250-24FP-4G, CBS250-48T-4G, CBS250-48PP-4G, CBS250-48P-4G, CBS250-24T-4X, CBS250-24P-4X, CBS250-24FP-4X, CBS250-48T-4X, CBS250-48P-4X
  • 100 to 240V 50 to 60 Hz, external : CBS250-8T-D, CBS250-8PP-D, CBS250-8TE2G, CBS250-8PP-E-2G, CBS250-8PE2G, CBS250-8FP-E-2G
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature
  • 32° to 122°F (0° to 50°C) for CBS250-8T-D and CBS250-8PP-D
  • 23° to 122°F (-5° to 50°C) for other models
Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 10% to 90%, relative, non-condensing
Acoustic noise and Mean Time Between Failures (MTBF) Model name Fan (number) Acoustic noise MTBF at 25°C (hours)
CBS250-8T-D Fanless N/A 3,277,956
CBS250-8PP-D Fanless N/A 1,659,542
CBS250-8TE2G Fanless N/A 2,171,669
CBS250-8PP-E-2G Fanless N/A 1,706,649
CBS250-8PE2G Fanless N/A 1,706,649
CBS250-8FP-E-2G Fanless N/A 1,706,649
CBS250-16T-2G Fanless N/A 2,165,105
CBS250-16P-2G Fanless N/A 706,983
CBS250-24T-4G Fanless N/A 2,026,793
CBS250-24PP-4G Fanless N/A 698,220
CBS250-24P-4G Fanless N/A 698,220
CBS250-24FP-4G 1 25°C : 34.8 dBA 698,220
CBS250-48T-4G 1 25°C : 29.7 dBA 1,452,667
CBS250-48PP-4G 1 25°C : 37.3 dBA 1,206,349
CBS250-48P-4G 1 25°C : 37.3 dBA 856,329
CBS250-24T-4X Fanless N/A 2,026,793
CBS250-24P-4X Fanless N/A 698,220
CBS250-24FP-4X 1 25°C : 34.8 dBA 698,220
CBS250-48T-4X 1 25°C : 29.7 dBA 1,452,667
CBS250-48P-4X 1 25°C : 37.3 dBA 856,329
Warranty Limited lifetime
Package contents
  • Cisco Business 250 Series Smart Switch
  • Power cord (power adapter for 8-port SKUs)
  • Mounting kit
  • Quick Start Guide





Yealink CP960 Conference Phone Kenya
