Description

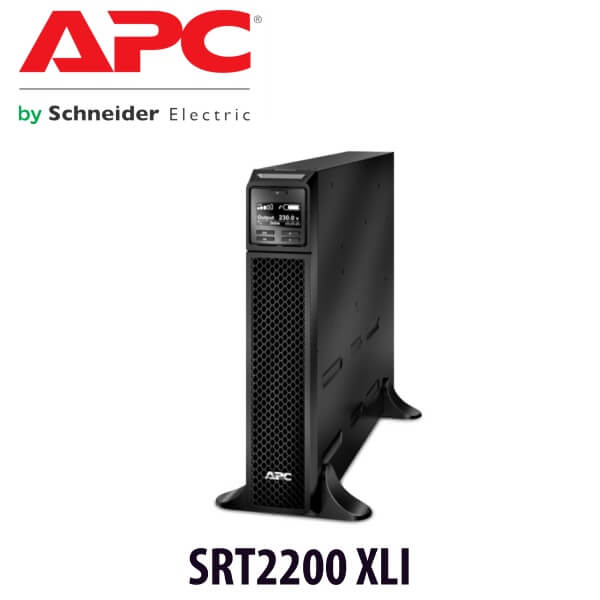

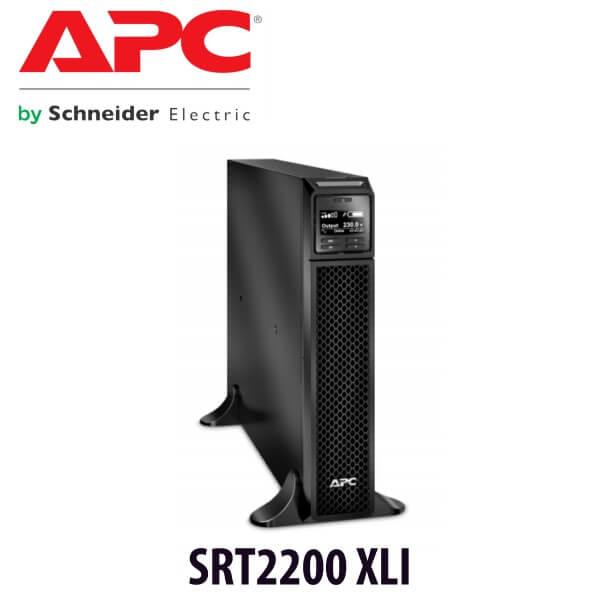

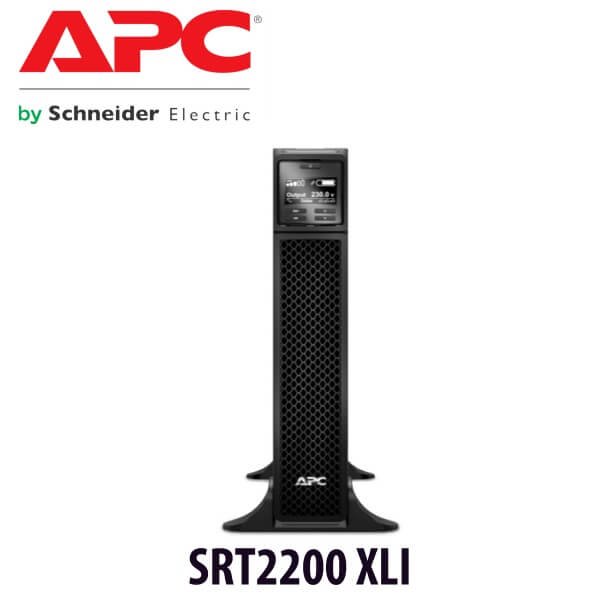

APC SRT2200 XLI Smart-UPS Kenya

The APC SRT2200 XLI Smart-UPS Kenya protects data and hardware from electrical power outages and current fluctuations. Using APC SRT2200XLI UPS devices, available for towers and racks, guarantee its users of interrupted power supply is secured during power outages. The Smart-UPS provides reliable battery back-up capacity powers through outages or gracefully shutdown systems Reliable battery back-up capacity to power through outages or gracefully shutdown systems. Temperature-compensated battery charging that prolongs battery life by regulating the charge voltage according to battery temperature.

APC SRT2200 XLI Smart-UPS Kenya boasts of intelligent battery management, pioneered by APC, that maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self-tests insure battery reliability and warn in advance of needing replacement. Also access Intuitive LCD interface that provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

 Key Features

• Tower-rack convertible UPS for 230 V power
• LCD control panel
• SmartSlot for an optional management card
• USB and serial interfaces (via RJ45 dongle), EPO connection
• Automatic bypass
• Input: IEC320-C20 to mains plug

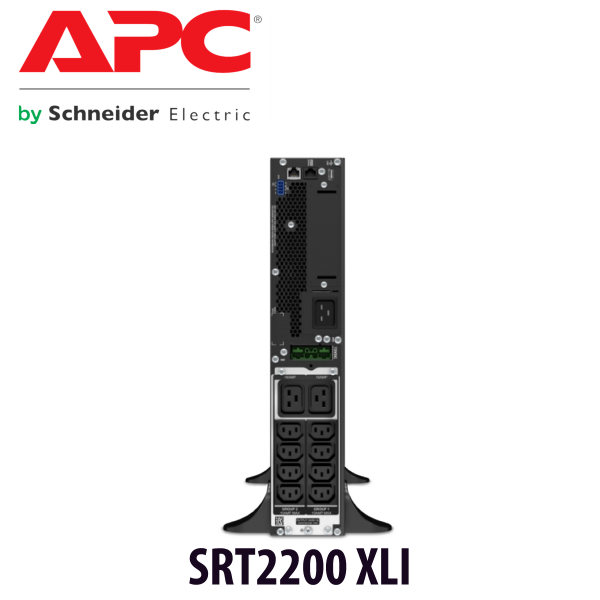

• Outputs: 8 x IEC320-C13, 2 x IEC320-C19, managed in 2 groups

Key Features and Benefits

Cold-start capable

APC SRT2200 XLI Smart-UPS Kenya provides temporary battery power when the utility power is out.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Pure sine wave output on battery

APC SRT2200 XLI Smart-UPS Kenya simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

APC SRT2200 XLI Smart-UPS Kenya increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

APC SRT2200 XLI Smart-UPS Kenya protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

APC SRT2200 XLI Smart-UPS Kenya warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications
