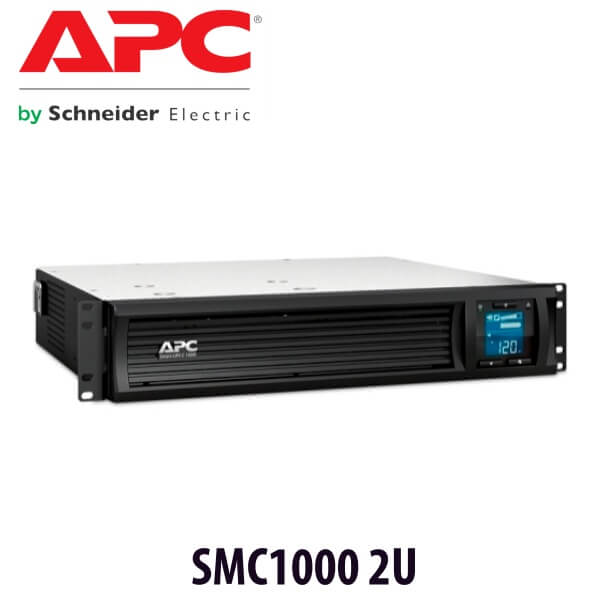

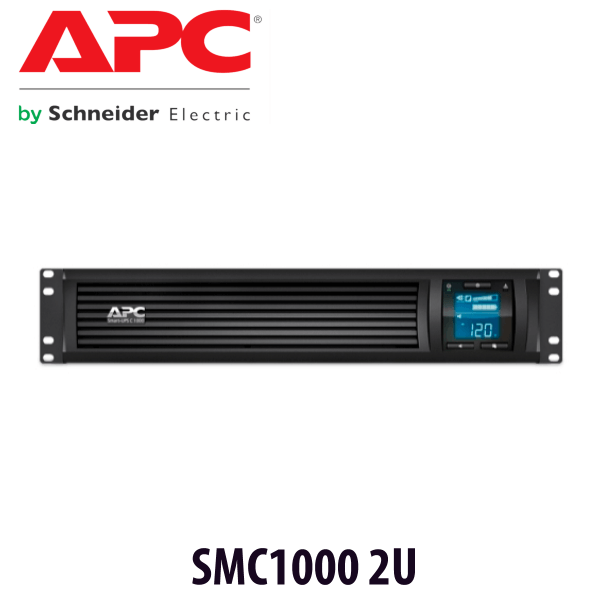

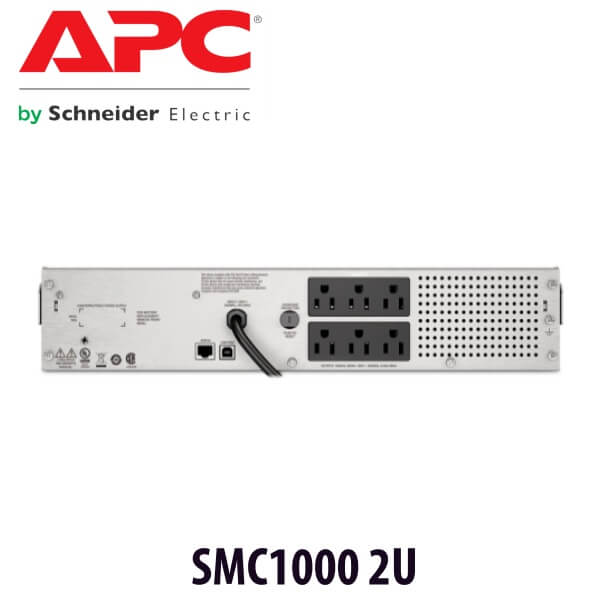

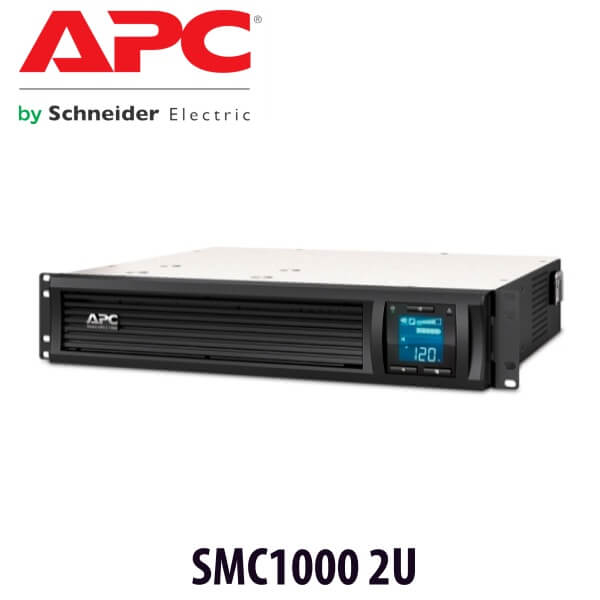

APC SMC1000 2U Kenya



APC SMC1000 2U Kenya

APC SMC1000 2U Kenya features intelligent and efficient network power protection from entry level to scalable runtime. It is deal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Category:

Description

APC SMC1000 2U UPS Kenya

APC SMC1000 2U Kenya features intelligent and efficient network power protection from entry level to scalable runtime. It is deal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Avoid costly power problems by keeping your IT equipment and data safe and available with APC SMC1000 2U. Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems. Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

APC SMC1000 2U Kenya has an intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Also it packs over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. APC SMC1000 2U has patented green operating mode achieving efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self-tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable APC SMC1000 2U

Key Features

Cold-start capable

APC SMC1000 2U Kenya provides temporary battery power when the utility power is out.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

APC SMC1000 2U Kenya reduces utility costs, generates less heat.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Serviceability

Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

APC SMC1000 2U Kenya ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Easy Configuration

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Compatibility

APC SMC1000 2U Kenya provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Benefits

  • Automatic restart of loads after UPS shutdown
  • Automatically starts up the connected equipment upon the return of utility power.
  • Temperature-compensated battery charging
  • Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Intelligent battery management
  • Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning
  • Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Disconnected battery notification
  • Warns when a battery is not available to provide backup power.
  • Automatic self-test
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Safety-agency approved
  • Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications

Output

  • Max Configurable Power (Watts) : 600 Watts / 1.0kVA
  • Output Voltage Distortion : Less than 5 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Topology : Line interactive
  • Waveform type : Sine wave
  • Transfer Time : 4 ms typical : 8 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 85 – 136 Adjustable, 93 – 130V
  • Number of Power Cords : 1

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)

Replacement Battery

  • Expected Battery Life (years) : 4 – 6
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 56 Watts

Communications & Management

  • Interface Port(s) :RJ-45 Serial, USB
  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

  • Surge energy rating : 455Joules
  • Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height : 3.5inches (89MM, 8.9CM)
  • Maximum Width : 17.01inches (432MM, 43.2CM)
  • Maximum Depth : 5.98inches (406MM, 40.6CM)
  • Net Weight : 45.24lbs. (20.52KG)
  • Shipping weight : 49.23lbs. (22.33KG)
  • Shipping Height : 9.49inches (241MM, 24.1CM)
  • Shipping Width : 21.5inches (546MM, 54.6CM)
  • Shipping Depth : 22.99inches (584MM, 58.4CM)
  • Color : Black
  • Units per Pallet : 16.0

Environmental

  • Operating Temperature : 32 – 104 °F (0 – 40 °C)
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0 – 10000ft (0 – 3048meters)
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0 – 50000ft (0 – 15240meters)
  • Audible noise at 1 meter from surface of unit : 42.0dBA
  • Online thermal dissipation : 81.0BTU/hr

Conformance

  • Approvals : CSA, NOM, UL 1778
  • Equipment protection policy : Lifetime : $150000
  • Standard warranty : 2 years repair or replace

Sustainable Offer Status

  • RoHS : Compliant
