APC Smart-UPS-3000VA RackMount Kenya

APC Smart-UPS-300-VA RackMount Kenya is equipped with a robust, hot-swappable, and easy-to-replace battery capable of powering up computers, monitors, and other components whenever there is a power blackout.

Add to quote

Description

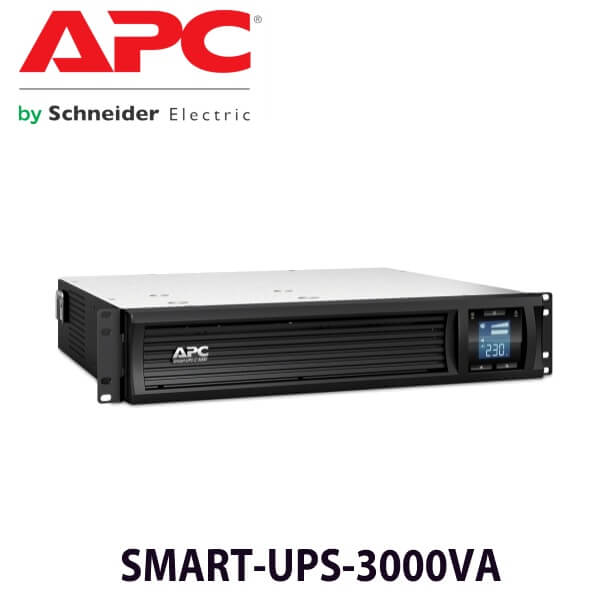

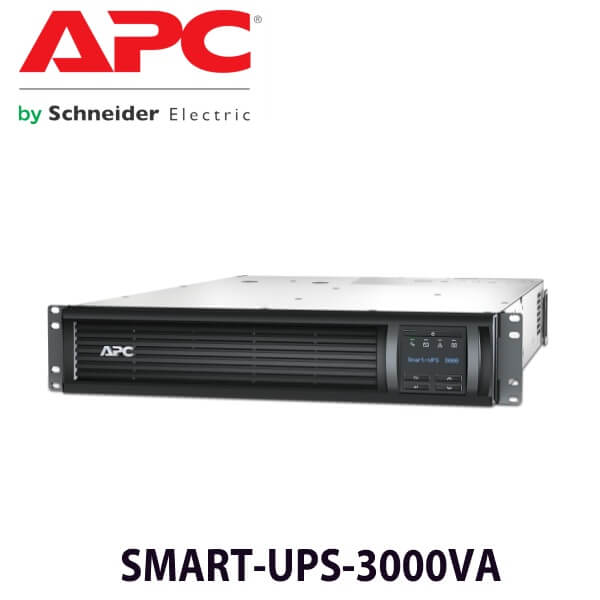

APC Smart-UPS-3000VA RackMount Kenya

APC Smart-UPS-3000VA RackMount Kenya is an ultra-efficient device that is designed to keep you working without any interruptions due to electrical power outages. It specifically delivers power to your essential computer peripherals, thus keeping you powered up throughout your day at work. The Uninterruptible Power Supply(UPS) offers an easy deployment for placement in a 2U rack mount and installation with NMC. APC Smart-UPS-300-VA RackMount Kenya is equipped with a robust, hot-swappable, and easy-to-replace battery which can power up your computers, monitors, and other components whenever there is a power blackout.

The APC Smart-UPS-3000VA RackMount Kenya features a convenient LCD status display which provides important information including power and unit status using visual indicators. The UPS features outlet group control functionality to turn on/off, reboot or shut down selected outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups). Other benefits of the UPS include Automatic Voltage regulation (AVR), intelligent battery management, power conditioning, and many more. It is StruxureWare Central compatible as well.

Key Features:

Intuitive LCD Interface
- APC Smart-UPS-3000VA RackMount Kenya is equipped with an intuitive LCD Display which provides clear and accurate information in multiple languages and is capable of configuring the UPS locally with easy-to-use navigation keys
Predictive Battery Replacement Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning
Green Mode
- APC Smart-UPS-3000VA RackMount Kenya features a patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve remarkable operating efficiency without sacrificing on protection
Energy Meter
- Provides actual kilowatt hours of usage for energy-conscious users
Outlet Group Control
- Enables you to turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups)
Sequenced Shutdown and Restart
- Configures select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups)
Pure Sine Wave Output on Battery
- Simulates utility power to provide high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
Single Switched Outlet Group
- A single outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
Sine Wave Output
- Eliminates humming and heat generation when powering tube lights and fans
StruxureWare Central Compatible
- Enables centralized management via StruxureWare Central
Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance
LED Indicators
- Provides easy-to-read status of the unit and utility power conditions
Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Automatic Self-Test
- A periodic battery self-test ensures early detection of the battery that needs to be replaced
Automatic Restart of Loads after UPS is Shutdown
- Automatically starts up the connected equipment upon the return of utility power
Adjustable Voltage Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
Adjustable Voltage Sensitivity
- The APC Smart-UPS-300-VA RackMount Kenya is equipped with adjustable voltage transfer points which provide the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Audible Alarms
- Provides notification of changing utility power and UPS conditions
User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)
USB Connectivity
- APC Smart-UPS-3000VA RackMount Kenya boasts of built-in USB ports which provide management of the UPS.
Serial Connectivity
- Provides management of the UPS via a serial port
Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
Boost and Trim Automatic Voltage Regulation (AVR)
- Provides higher application availability by correcting low and high voltage conditions without using the battery (not available on all models)
Intelligent Battery Management
- Maximizes battery performance, life and reliability through intelligent, precision charging
Safety Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
Network Manageable
- Provides remote management of the UPS over the network
Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs

APC 3000 – Technical Specifications

Input

Nominal Input Voltage	120 V
Input Frequency	50/60 Hz ±3 Hz (auto sensing)
Input Connections	NEMA L5-30P
Cord Length	8′ (2.44 m)
Input Voltage Range	For Main Operations: 82 to 144 V
Input Voltage Adjustable Range	75 to 154 V

Output

Output Power Capacity	2700 W/3000 VA
Maximum Configurable Power	2700 W/3000 VA
Nominal Output Voltage	120 V
Topology	Line interactive
Waveform Type	Sine wave
Output Connections	6 x NEMA 5-15R 2 x NEMA 5-20R

Batteries and Runtime

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical Recharge Time	3 hours
Replacement Battery	RBC43
RBC Quantity	1
Energy	Load v/s Efficiency: 25% – 97.5% 50% – 97.6% 75% – 97.1% 100% – 96.5%

Communications & Management

Interface Ports	USB
Available SmartSlot Interface	1
Control Panel	LED status display with on line, on battery, replace battery and overload indicators Multi-function LCD status and control console
Audible Alarm	Alarm when battery on, distinctive low battery and overload (continuous tone alarm) occurs

Surge Protection and Filtering

Surge Energy Rating

459 Joules

Sustainable Offer Status

Battery Directive Compliant	Yes
Battery Notes	Contains Lithium battery

Environmental

Environmental Compliance	RoHS, REACH, contains no SVHCs
Temperature	Operating: 32 to 104°F (0 to 40°C) Storage: 5 to 113°F (-15 to 45°C)
Relative Humidity	Operating: 0 to 95% Storage: 0 to 95%
Elevation	Operating: 0 to 9842′ (0 to 3000 m) Storage: 0 to 49,212′ (0 to 15000 m)
Audible Noise	At 3′ (1 m) from Surface: 55.00 dBA
Online Thermal Dissipation	348.00 BTU/hour

General

Protection	Lifetime: $150000
Regulatory Approvals	CSA, FCC Part 15 Class A, UL 1778
Rack Height	2U
Dimensions (WxHxD)	19 x 3.4 x 27″ (480 x 86 x 683 mm)
Weight	98 lb (44.28 kg)
