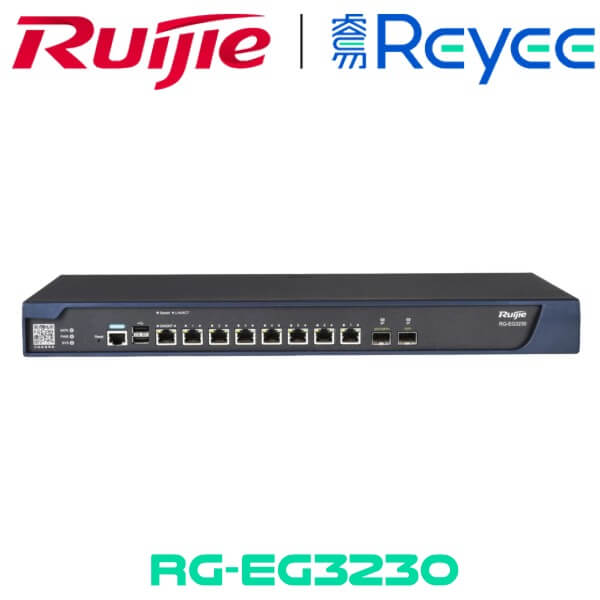

Ruijie RG-EG3230 Kenya



Ruijie RG-EG3230 Kenya

Ruijie RG-EG3230 Kenya is EasyGate (EG) Next-generation Unified Security Gateway featuring a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture.

Description

Ruijie RG-EG3230 Unified Security Gateway Kenya

Ruijie RG-EG3230 Kenya is EasyGate (EG) Next-generation Unified Security Gateway featuring a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN, web authentication, etc. Taking advantage of integrated Hard Disk Drive (HDD), the Ruijie RG-EG3230 Kenya Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

This Ruijie EG Next-generation Unified Security Gateway also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management. For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Ruijie RG-EG3230 Kenya initial setup with Internet connectivity, without any PC setup or cable installation.

Features

Smart Flow Control & AAA Integration

  • Smart P2P speed limit, accurate identification of P2P software, and automatic transmission of uplink source quench message to control the downlink traffic and prevent downlink bandwidth exhaustion
  • Support over 120 popular applications in DPI engine and enjoys FREE for life signature update
  • Role-based flow control based on usernames and user groups to facilitate the allocation of bandwidths according to different departments
  • Support AAA (Authentication, Authorization and Accounting) with web authentication, integration with AAA Software and simple traffic accounting feature

Flexible Authentication

With integration with Ruijie Cloud Ruijie RG-EG3230 Kenya provide the easy, secure and flexible authentication experience for various business scenarios.  All account or portal management can be managed at Ruijie Cloud centrally, but all authentication are processed locally at EG Gateway, which guarantee for authentication performance and the highest availability, such that any connectivity error with Ruijie Cloud service will not bring any service interruptions to the user authentication service.

Online Behavior Management

Ruijie RG-EG3230 Unified Security Gateway Kenya provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.

VPN Visualization

Ruijie RG-EG3230 Kenya significantly simplifies the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The gateway enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.

Traffic Analysis

Equipped with powerful DPI technology, the Ruijie RG-EG3230 Kenya Security Gateway collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.

Centralized Cloud Management

Couple with Ruijie Cloud services, the Ruijie RG-EG3230 Kenya is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.

Intuitive Mobile App

Apart from the accessing cloud management dashboard from workstation, Ruijie offer an alternative to manage Security Gateway from your fingertips, a tailor-made Mobile App you can download from Google Play and Apple Appstore. You can now access to Security Gateway even you’re away from your PC.

Mobile App Provisioning for Dummy

For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.

App Caching for Download Acceleration

Ruijie RG-EG3230 Kenya provide exclusive Caching technology for any media files resources and Mobile App (Google Android APK and IOS Store), the files will download from EG Cache directly without go through the Internet. The feature is exceptionally help for situation with high volume for same identical file downloading, such as Games, Mobile App, System Patches, etc. but the internet line speed is not fast sufficient or expensive. Guest or Visitors very often will download the same Mobile App during the peak hours, and long downloading is definitely expected because of Internet or Server-side bottleneck issues.

Built-in Internet Audit Log Storage

At the heart of most devices that provide protection for IT networks is an ability to log events and take actions based on those events. Ruijie RG-EG3230 Kenya supports detail logging both on what has happened to the device and what is happening. A local attached 1TB hard disk provides sufficient storage to keep all the necessary audit logging trail. It increases the higher logging retention period before it is exported to external logging server

Specifications

Model RG-EG3230
Hardware Specification
CPU Multi-core MIPS
Fixed Ports
  • 8 1000BASE-T ports
  • 1 SFP port
  • 1 SFP+ port (non-combo)
WAN Ports Upto 6
Flash 8M SPIFLASH
Hard Disk Standard 1TB
Memory 2G
Performance & Feature
Performance 4000Mbps (1518 bytes)
2610Mbps (512bytes)
622Mbps (64 bytes)
Concurrent Session 300,000
Recommended Concurrent User 1000
Portal Authentication Capacity 1000 (Max Concurrent Users)
Portal Authentication Type
  • Username/Password Auth (Local, Windows-based AD/LDAP Integration)
  • One-click Authentication;
  • Guest Voucher (Ruijie Cloud required);
Seamless Authentication (Portal) Support
App Caching Support
Cache Resources Windows System Patches
Network Protocol
  • Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.
  • Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
  • Support DHCP Relay and DHCP Server
  • Support PPPoE Client
  • Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
  • Support ARP, trusted ARP, proxy ARP, etc.
  • Support Ping and Traceroute fault detection
Application Visibility
  • Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification :
  • P2P : BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
  • Multimedia : YouTube, Facebook Video, WebEx Conference & etc.
  • Social Media : Facebook, Twitter, LinkedIn, Pinterest & etc.
  • VOIP/Chat : Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
  • Instant Messaging/Email : Gmail, MSN, QQ, YAHOO & etc.
  • Software Update : Window, McAfee, Kaspersky, ESET & etc.
  • Cloud-based File Collaboration : GoogleDrive, Dropbox, OneDrive, iCloud & etc.
  • Enterprise Application :HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.
URL Filtering
  • Support HTTP/HTTPS domain filtering
  • Support remote HTTP automatic URL library upgrade
  • Local log storage (NAT log, traffic log, URL log, etc.)
  • Support storage on external log server
WAN Load Balancing Support (upto 6 WAN Port)
High Availability
  • VRRP
  • RIP (Graceful Restart)
  • OSPF (Graceful Restart)
IPsec VPN Tunnel 600
Network Security
  • Anti-ARP Spoofing
  • Defense against malicious attacks from internal and external networks
  • Support secure address binding
  • Block WAN Ping
  • Prevent Port Scan Attack
  • Prevent Fragmentation Attack
  • Prevent ICMP Flood Attack
  • Prevent Teardrop Attack
  • Prevent Ping of Death Attack
  • Prevent Land Attack
  • Prevent Smurf / Fraggle attack
  • Prevent SYN Flood Attack
Layer 2 Features
  • Support Bridging
  • Support LAN Port Aggregation
Ruijie Cloud Integration Feature
  • Support device health monitoring status
  • Support centralized configuration change management & backup
  • Support Top 10 Application/User traffic visualization
  • Support device firmware management
  • Support event-based alarm notification
Other Features Integrate with AAA software to support multiple authentication modes
Other Features

Service and Support

Support push advertising page
Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.
Lifetime Free signature library upgrade
Rack Height 1U
Weight 4kg
Power Supply 100-240V~,50-60Hz,0.65A
Power Consumption <25W
Dimensions (W x D x H) (mm) 440×200×43.6
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 90%RH
