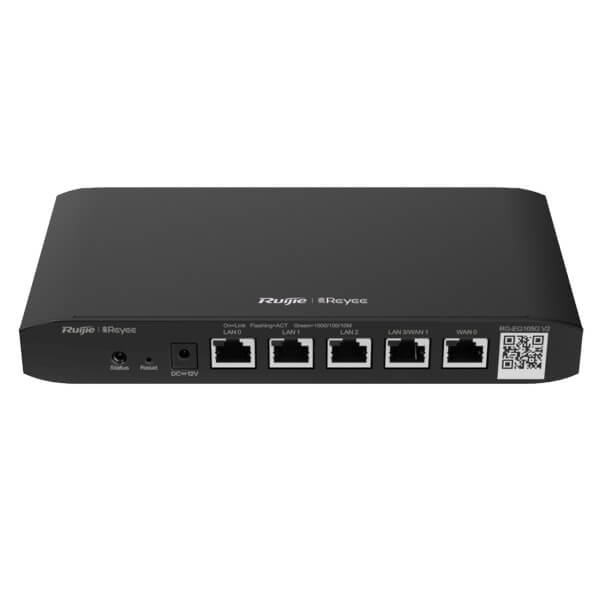

Ruijie RG-EG105GV2 Kenya



Ruijie RG-EG105GV2 Kenya

Ruijie RG-EG105GV2 Kenya is a cloud managed router designed for villas and smart home, restaurant, small offices, homestay hotel. This router is affordable, small and easy to use, and at the same time comes with 500Mbps – 1Gbps bandwidth and supporting up to 200 terminals.

Description

Ruijie Reyee RG-EG105GV2 Router Kenya

Ruijie RG-EG105GV2 Kenya is a cloud managed router designed for villas and smart home, restaurant, small offices, homestay hotel. This router is affordable, small and easy to use, and at the same time comes with 500Mbps – 1Gbps bandwidth and supporting up to 200 terminals. Ruijie Reyee RG-EG105GV2 Kenya perform per-port VLAN configuration to achieve port isolation, and integrate with smart flow control to achieve comprehensive network planning and perform local and remote network diagnosis.

The built-in network controller of Ruijie RG-EG105GV2 Kenya can centrally manage up to 32 Reyee APs and up to 128 Reyee cloud managed switches and RG-EG210G-P / RG-EG210G-E can manage up to 150 Reyee APs and up to 128 Reyee cloud managed switches. RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless, offering unified configuration, remote management and remote fault diagnosis of the entire network via the Ruijie Cloud app.

When working on AC mode Ruijie RG-EG105GV2 Kenya, can centrally manage up to 300 Reyee APs and up to 128 Reyee cloud managed switches and RG-EG210G-P / RG-EG210G-E can manage up to 500 Reyee APs and up to 128 Reyee cloud managed switches.

Features

  • Auto-provisioning via Self-Organizing Network: RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless.
  • Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
  • Multiple WAN Ports: Up to 2 WAN ports.
  • Full Gigabit port: Meet the needs of 200M xDSL/fiber access, high-speed wired connectivity.
  • AC mode: Manage Reyee APs, saving cost.
  • Smart flow control: Intelligently adjusted each user bandwidth according to the access bandwidth and the number of users to ensure that each user can enjoy better network experience.
  • IPSec VPN: EG Provide VPN services for headquarters and branches, up to 8 branches.
  • Enterprise Security features: IP/MAC/MAC-Filtering. Independent VLAN for guest, isolated from the internal office network.

Specifications

Model RG-EG105G V2
Basic specifications
Fixed ports 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports
(Default: 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port)
RAM 128MB
Flash 16MB
Maximum number of clients Up to 100 concurrent clients
Recommended bandwidth
  • 600M asymmetric bandwidth (flow control disabled)
  • 500M asymmetric bandwidth (flow control enabled)
Local power supply Support 220V AC local power supply
Power consumption <6W
Basic network
Network access
  • PPPoE dial-up
  • DHCP client
  • Static IP
  • Automatic identification of access methods
  • Automatic avoidance of WAN port address conflicts
  • MAC cloning
  • Acquiring account from existing routers
Routing
  • Static routing
  • Policy-based routing
  • Carrier address routing
  • Active/standby mode
  • Load balancing based on source address
  • Flow-based load balancing
  • Port-based weighted load balancing of data streams
Security
  • ACL
  • IP-MAC binding
  • MAC address filtering
  • Dynamic ARP
  • Static ARP binding
  • NAT
  • NAPT
  • Port mapping
Other protocols
  • DHCP Server
  • DHCP Client
  • DHCP Option43/138
  • DNS Client
  • DNS Server
  • DNS Proxy
  • TFTP
  • NTP
  • DDNS
Gateway
Application recognition
  • Built-in self-developed application signature database to identify applications
  • Support free upgrades
Flow control
  • Support custom flow control policies
  • IP-based automatic bandwidth assignment
Traffic audit
  • Real-time affic audit
  • IP traffic visualization
Behavior management Time-based and IP policy-based access control, website filtering
VPN IPsec VPN (8 tunnels) server and client, L2TP, PPTP
Authentication
  • Marketing authentication : WiFiDog (SMS authentication and one-click authentication)
  • Local authentication : password authentication, QR code authentication, voucher authentication
Wireless management
Management capacity
  • In AC mode, the maximum management capacity is 300
  • In gateway mode, the maximum management capacity is 32
AP management
  • Support multi-SSID configuration
  • SSID hiding
  • Channel setting
  • Power setting
  • AP wired port setting
  • AP online upgrade
  • STA quantity setting
  • STA blacklist and whitelist
Roaming
  • Support local forwarding roaming
  • Layer 2 roaming
  • Layer 3 roaming between APs
  • Viewing of STA roaming track
Switch management
Management capacity Maximum manageable cloud managed switches : 128
Port management
  • Loop protection
  • Port mirroring
  • Port isolation
  • Port configuration
  • PoE configuration
  • Port limit
  • Storm control
  • Static MAC
  • MAC search
Status display
  • Port statistics
  • Monitoring information
  • Cable detection
  • VLAN configuration
  • MAC list
Upgrade management
  • Per-device upgrade
  • Batch upgrade
Value added features
Featured solutions
  • Single-cable IPTV solution
  • Port service VLAN and network segment isolation solution
  • Smart fault diagnosis solution
  • Intranet penetration solution
  • Auto-networking solution
Management Eweb and Ruijie Cloud
Physical
Dimensions 206.5×108.5×28 (mm)
Weight 0.84kg
Temperature
  • Operating temperature : 0 ~ 40
  • Storage temperature : -10 ~ 70
Humidity
  • Operating humidity : 10% ~ 90% (non-condensing)
  • Storage humidity : 5% ~ 95% (non-condensing)
