Description

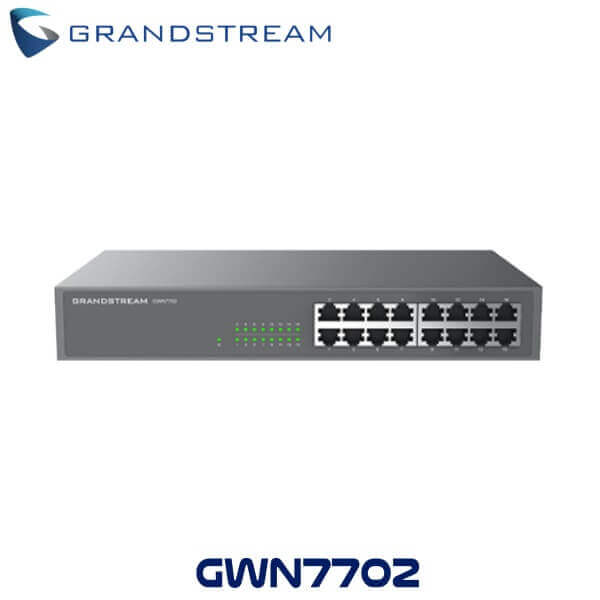

Grandstream GWN7702 Network Switch Kenya
The Grandstream GWN7702 Kenya is an unmanaged network switch that offers a fast and affordable solution for providing high-speed Gigabit connectivity for home offices and small businesses. These switches require no configuration or installation and are available in desk-top or wall-mount designs. It also features Auto-MDI/MDIX functionality, eliminating the need for crossover cables. Each port of Grandstream GWN7702 Kenya supports auto-negotiation, allowing the switch to detect the link speed of 10/100/1000 Mbps network devices and adjust accordingly to ensure compatibility and optimal performance. For added convenience, the Power-over-Ethernet (PoE) model provides a port with intelligent dynamic PoE output that is IEEE 802.3af/at compliant. With this feature, the switch can power IP phones, IP cameras, WiFi access points and other PoE endpoints. In summary, the plug-and-play Grandstream GWN7702 Kenya is perfect for home offices and small businesses that need an unmanaged network switch.
Technical Specifications
- Gigabit Ports : 16
- PoE Ports : N/A
- Enclosure : Metal
- Mounting : Desktop/Rack-Mount
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
- Port Features :
- 16 * 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media : 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
- LED Indicators :
- Per port : Link/Activity Green
- Per device : Power Green
- Mac Address Table : 8K
- Switching Capacity : 32Gbps
- Jumbo Frame : 10KB
- Advanced Features :
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- Half duplex backpressure
- Power Adapter : Internal 100-240V AC, 50/60Hz,18W
- Max Power Consumption by Base System : 8W@220V/50Hz
- Environmental :
- Operating Temperature : 0 to 40 °C (32 to 104 °F)
- Storage Temperature : -20 to 60 °C (-4 to 140 °F)
- Operating Humidity : 10% to 90% Non-condensing
- Storage Humidity : 10% to 90% Non-condensing
- Dimensions (L x W x H) :
- Unit : 280 x 180 x 44mm;
- Package : 366 x 211 x 53mm
- Weight :
- Unit : 1.23KG
- Entire Package : 1.83KG
- Package :
- 1x Switch
- 1x 1.2m AC Cable
- Rack-mounting Standard Brackets
- 4x Rubber Feet
- 1x QIG
- Compliance : FCC, CE, RCM, IC, UKCA
