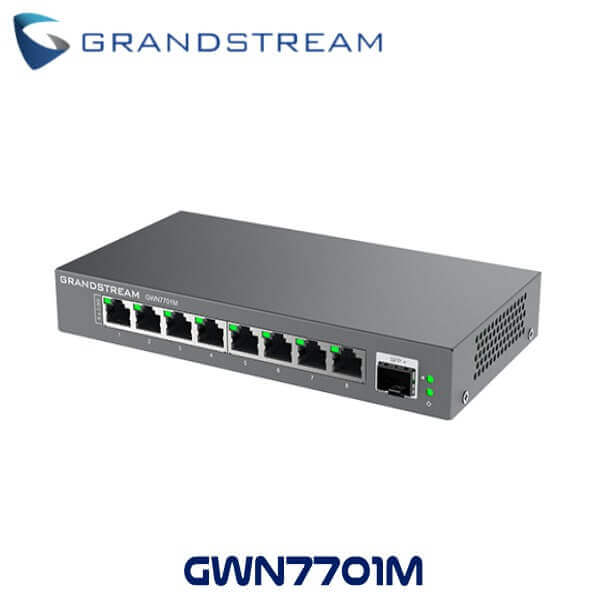

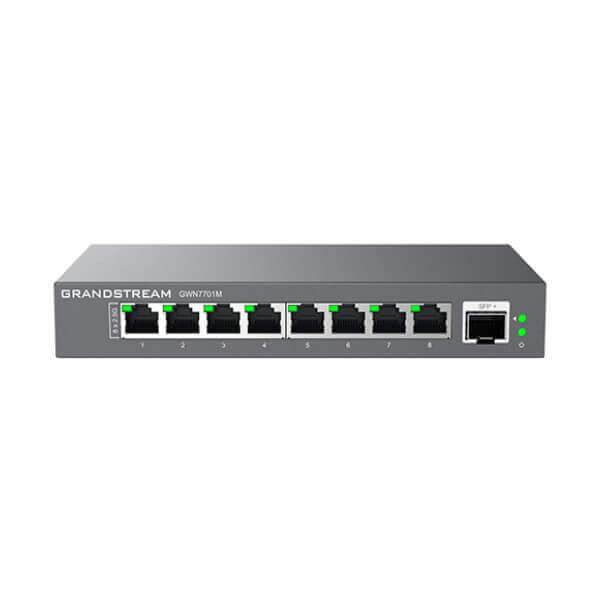

Grandstream GWN7701M Kenya

The Grandstream GWN7701M Kenya is an easy-to-use network switch that offers fast network connections, reaching speeds of up to 2.5 Gbps.

Add to quote

Description

Grandstream GWN7701M Network Switch Kenya

The Grandstream GWN7701M Kenya is an easy-to-use network switch that offers fast network connections, reaching speeds of up to 2.5 Gbps. Designed for home offices and small to medium businesses, these switches have 6 or 9 ports and support Fast Ethernet, 1GbE, and 2.5GbE speeds. They also come with a 1GbE SFP fiber port for high-speed 1Gb or 10Gb uplink connectivity. The GWN7700M and GWN77001M switches are ready to use right out of the box, without the need for any configuration or installation. They can be mounted on a desktop or wall and automatically adjust MDI/MDIX without the use of cables. The Grandstream GWN7701M Kenya switch is equipped with auto-negotiation on each port to intelligently recognize the speed of the connected network device (100/1000/2500 Mbps) and optimize performance for the best compatibility. These Grandstream GWN7701M Kenya Plug and Play switches are perfect for home offices and small to medium businesses in need of high-speed multi-gigabit connectivity.

Grandstream GWN7701M Features

5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
LED Indicators; Per port : Link/Activity/Speed Per device : Power
Auto MDI/MDIX crossover for all ports
Whisper Quiet : fanless
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Green technology reduces power consumption
QoS – Supports Default Strict Priority when present

Additional Information

Weight	1.7 lbs
Dimensions	11.81 × 5.12 × 2.1 in
Brand	Grandstream
Product Family	GWN-Cloud
Switch Type	Unmanaged Switches
Number of Ports	5-10
Main Port Speed	2.5G
Uplink Ports	10G SFP+
Layer Support	L2
PoE Support	No
Redundant Power Supply	No

GENERAL INFO :

Model : GWN7701M
Box Contents :
- 1x GWN7701M Switch
- 1x Power Adapter
- 1x QIG
Enclosure : Metal
Mounting : Desktop/ Wall-Mount
Power Adapter : External 12V/1A
Max Power Consumption by Base System : 9. 7W
LED Indicators :
- Per port : Link/Activity Green
- Per device : Power Green
Compliance : FCC, CE, RCM, IC, UKCA

PORTS :

Gigabit Ports : 8
Port Features :
- 8× 100/1000/2500Mbps RJ45 Ports
- 1× SFP+ Fiber Port
- AUTO Negotiation
- AUTO MDI/MDIX

NETWORK :

Network Media :
- 2.5GBase-T / 1000Base-T / 100Base-TX/10Base-Te (Half-Duplex only supported in 10/100M mode on port 4-8)
Mac Address Table : 4K
Switching Capacity : 60Gbps
Jumbo Frame : 9KB
Advanced Features :
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- IEEE 802.3az (Energy Efficient Ethernet)
- 802.1p/DSCP QoS
- IGMP :
  - IGMP Fast-Leave
  - IGMP Snoop
  - Route Port Autolearn
  - Query Refresh Member Port
