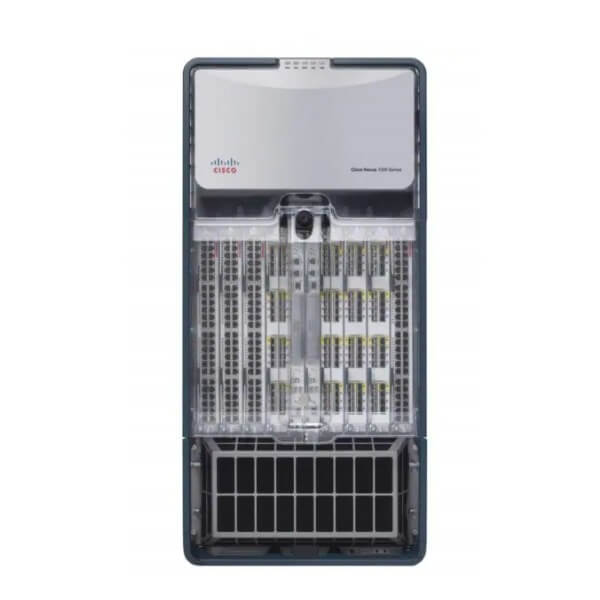

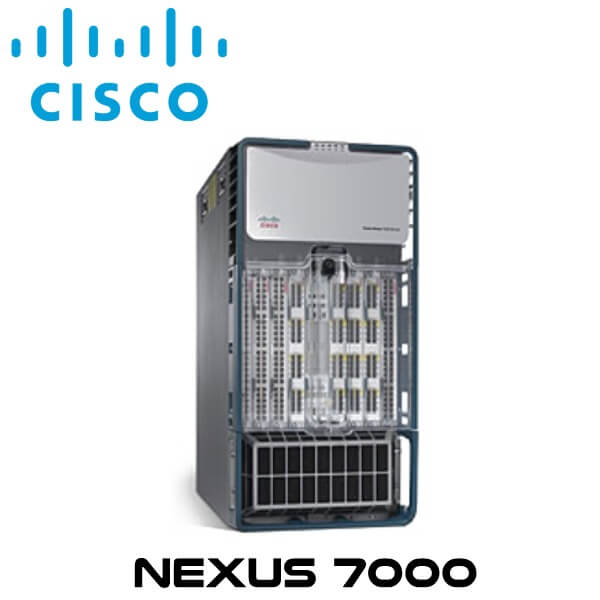

Cisco Nexus7000-10Slot Chassis Network Switch Kenya

The Cisco Nexus7000-10Slot Kenya is a switching platform is designed to deliver performance, flexibility, and zero service loss for the next-generation unified fabric data center. The Cisco Nexus7000-10Slot Kenya has two supervisor slots, eight I/O module slots, a cable management door, and an optional air filter on the front of the chassis. On the back, it has five fabric slots, three power supply bays, two system fan trays, and two fabric fan trays. Cisco Nexus 7000 10-Slot chassis has three power supply bays. The Cisco Nexus7000-10Slot Kenya comprise a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 17 terabits per second (Tbps) and that supports high-density 40 and 100 Gigabit Ethernet deployments. Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized, pervasive services. The Cisco Nexus 7000 Series is based on a proven operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability.

The Cisco Nexus7000-10Slot Kenya incorporate significant enhancements in design, power, airflow, cooling, and cabling. The 10-slot chassis has front-to-back airflow, making it a good solution in hot-aisle and cold-aisle deployments. The 9- and 18-slot chassis use side-to-side airflow to deliver high density in a compact form factor. The power supplies, fan trays, and fabrics can be replaced from the back of the chassis without any obstruction from the I/O cables, thereby enabling operation efficiency. In addition, the Cisco Nexus 7000 Series has many power saving enhancements such as temperature sensors, variable-speed fans, and high-efficiency power supplies that reduce the total cost of ownership (TCO) for customers.

Features

Infrastructure scalability for investment protection

• The Cisco Nexus7000-10Slot Kenya is designed for future scalability to switching capacity of more than 15 terabits per second
• Modular, flexible, scalable OS based on Linux
• Efficient power and cooling design
• Virtualization for efficient resource utilization

Operational continuity

• Lossless, nondisruptive upgrades for zero service downtime
• Graceful system operations to minimize the effect of upgrades and other maintenance
• Comprehensive, open Extensible Markup Language (XML) API for flexible management options

Transport flexibility

• Support for new technologies without total upgrades
• Virtualized control plane and data plane forwarding for optimized performance
• Support for emerging 40 Gbps and 100 Gbps Ethernet standards

Air flow

• Air flows front to back.
• Air enters through the inlet located at the bottom front of the chassis and exits at the rear of the chassis, making the Cisco Nexus7000-10Slot Kenya chassis excellent for hot-aisle and cold-aisle designs.

Fan trays

• 2 system fan trays.
• 2 fabric fan trays.

Fan trays removable from the rear

With Cisco Nexus7000-10Slot Kenya all fan trays are removable from the rear, and hence there is no obstruction from the I/O cabling on the front. This arrangement enables continuous system operation during maintenance.

Variable fan speeds

• Current fans have 256 speed levels.
• The fan speed changes based on the type of I/O module (and supervisor), the inlet temperature reading on the supervisor, and the presence or absence of an air filter.
• Power consumption and noise emission by fans is optimized.

Self-healing mechanism

The software tracks the temperature of the most critical components on the I/O modules and the supervisors. If the recorded temperature is higher than a certain system-defined threshold, the fan speed automatically increases and stays at that speed until the temperature falls below the threshold.

Fan redundancy

• Both system and fabric fan trays are redundant and hot swappable.
• If either a system or fabric fan tray is removed, the speed of the other fan increases to provide the required cooling.

Air filter

• The Cisco Nexus7000-10Slot Kenya has air filter that filters dust and keeps the chassis interior clean.
• Use of an air filter increases the fan speed; higher fan speeds result in higher levels of noise.

Cable Management

The cable management system for the Cisco Nexus7000-10Slot Kenya chassis is located on the front of the chassis above the modules. In the largest configuration, the chassis can support 384 Cat6A copper cables plus 8 management port cables. All cables can be groomed either to one side of the chassis or to the left and right. A top-hinged door covers the cable management system. The cable management system can be removed to support alternative ways of managing the cables.

Multiple Mounting Capabilities

The Cisco Nexus 7000 10-Slot chassis should be installed in either a standard four-post rack or a four-post cabinet that meets the depth, total equipment weight, and network cabling requirements. Multiple third-party vendor cabinet solutions that meet the specifications for the 10-slot chassis are currently available.
