Cisco Nexus3550T Kenya

Description

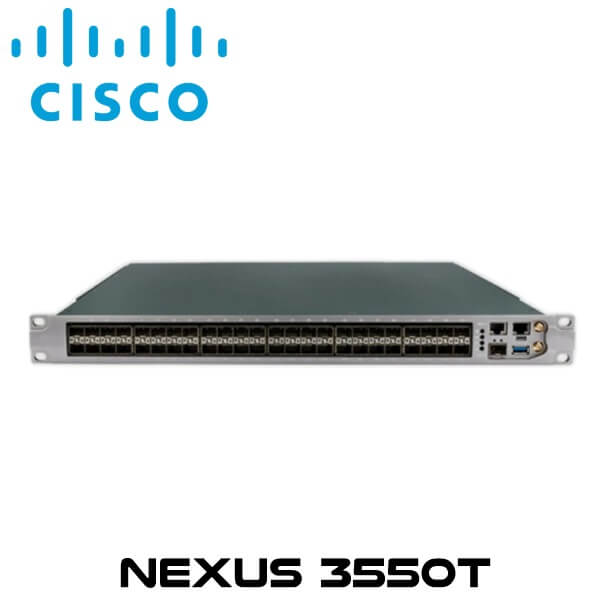

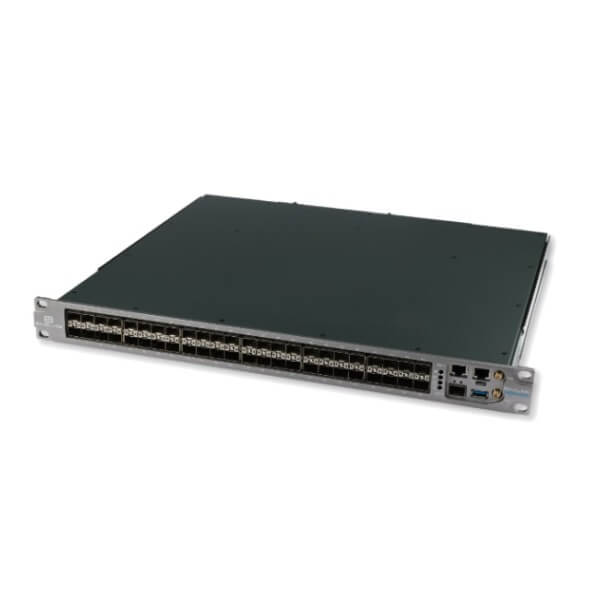

Cisco Nexus3550T Programmable Network Platform Kenya

The Cisco Nexus3550T Kenya is Programmable Network Platform featuring a top-of-rack software application platform with a unique flexible low-latency design. This Platform features up to 48 ports of Ethernet connectivity in a single-rack unit form factor. The Cisco Nexus3550T platform is built around a powerful programmable FPGA and provides a complete firmware development environment for custom application and use cases. The Cisco Nexus3550T Kenya Programmable Switch Platform is a powerful top-of-rack Ethernet switch and application platform with a unique low-latency design. It offers comprehensive layer 2 and layer 3 switching capabilities. The device is built around a flexible FPGA device, offering long term feature enhancements, upgrades, and fixes, as well as a complete firmware development environment for custom applications.

Features

Hardware architecture

The Cisco Nexus3550T Kenya Programmable Network Platform has a fixed form factor that is built around a dynamically reconfigurable FPGA (Field Programmable Gate Array) and provides 48 ports that are 25G capable along with an x86 (Intel® Atom® processor with 8 cores up to 1.7 GHz)–management CPU. All 48 ports are directly connected to Xilinx Virtex UltraScale Plus VU35P FPGA with a “-3” speed grade. The FPGA has 8GB of High Bandwidth Memory (HBM) on board.

Ease of management

The Cisco Nexus3550T Kenya Programmable Network Platform features a console port, a Micro USB port, a 1G RJ45 port, and a 10G SFP+ port, which can be used as management interfaces. The Cisco Nexus 3550-T Platform uses a Command Line Interface (CLI) designed to address the needs of low-latency FPGA configurations. Every command available on the CLI is also available via a remote JSON RPC API to make the Nexus 3550-T easy to operate and manage at scale. The Cisco Nexus3550T Kenya includes standard enterprise manageability and deployment capability features such as automatic configuration (via DHCP), SNMP, TACACS+ authentication, on-board Python programmability, BASH shell access, and time-series logging.

Programmability

The Cisco Nexus3550T Kenya provides a powerful development framework to add application-specific intelligence to the Cisco Nexus 3550 FPGA Module using Cisco’s Nexus Firmware Development Kit (FDK). Our Cisco Nexus FDK provides all the required components to build, run, and maintain FPGA-based intelligent applications and accelerate network applications.

Statistics

The Cisco Nexus3550T Kenya supports packet-aware statistics. The Cisco Nexus 3550-T firmware has the capability to monitor for vital packet statistics, including the number of packets/bytes transmitted/received and transmit/receive errors, and deep diagnostics, including light levels, operating temperatures, transceiver capabilities, and more. All these statistics are available at no latency cost on the critical path.

Specifications

Statistics

Packet counters (RX, TX)
Current RX link state
RX link change count
CRC error counters for RX-temperature information
Power-supply sensor information
Fan speed

Connectivity

48 x SFP28 (small form-factor pluggable) configuration (backward compatible with SFP+ and SFP)
SFP+ Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX)
SFP+ Copper Direct Attach
SMA for PPS in/out^*(3.3V with 50 Ohm signal interface)
SMA for GPS^*in
RJ45 management port
RJ45 industry-standard serial port (default speed: 115200 N81)
USB (for firmware upgrades)

Data rates:
